ABB 1SDA062731R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA062731R1
Quick Summary
ABB 1SDA062731R1 Moulded Case Circuit Breaker is a high-current protection device for main distribution in industrial plants. Engineers often struggle with limited fault tolerance and complex maintenance; this MCCB delivers robust short-circuit protection with a reliable stored-energy release for fast, safe operation. It conforms to IEC standards with CE conformity and GL certification, ensuring reliability in critical power systems. Designed for 800 A at 690 V AC with front-terminal wiring and 4 poles, it supports scalable protection for motor drives and transformers while meeting RoHS and REACH requirements.
Product Information
Extended Description

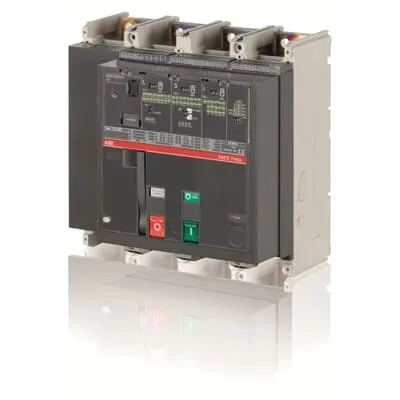

1SDA062731R1 ABB: C.BREAKER TMAX T7V 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR232/P-LSI R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
Order Code US and Canada
T7MVFA4AC000000XX
EAN
8015644652807
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
178 mm
Product Net Weight
14 kg
Package Level 1 Units
1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
15.5 kg
Package Level 1 EAN
8015644652807
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7M
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature 800 A rating with 4P configuration provides robust primary protection for main distribution panels, reducing the risk of cascading faults and enabling predictable system shutdowns. Business impact: improved uptime and safer maintenance windows. Application: industrial power centers and MCC rooms requiring high-capacity protection. Feature PR232/P-LSI stored-energy release ensures rapid, reliable switching during fault conditions. Business impact: minimized fault energy transfer and faster restoration after faults. Application: data centers, processing lines, and heavy machinery installations. Feature 690 V AC rated operational voltage and 8 kV rated impulse withstand voltage support protection across multiple voltage tiers. Business impact: greater resilience against surges and higher fault-impulse tolerance. Application: transformer feeders and LV distribution panels. Feature Front terminal connections and fixed circuit-breaker design simplify wiring, layout planning, and retrofits. Business impact: reduced installation time and improved panel density. Application: OEM panel manufacturing and retrofit projects. Feature RoHS and REACH declarations, CMRT, and TSCA commitments support compliance and sustainable procurement. Business impact: streamlined audit readiness and lower lifecycle risk. Application: regulated industries and multi-country deployments. Feature Mechanical durability of 10000 cycles and electrical durability of 3000 cycles demonstrate long-term reliability under frequent operation. Business impact: lower maintenance costs and extended service intervals. Application: continuous production lines with frequent switching.
