ABB 1SDA062736R1 Moulded Case Circuit Breaker - IEC Tmax T7
Part Number: 1SDA062736R1
Quick Summary
ABB 1SDA062736R1 Moulded Case Circuit Breaker protects industrial power distribution with reliable short‑circuit protection. Engineers often struggle with space constraints, reliability gaps, and selecting a breaker that won't compromise uptime. This model aligns with IEC standards, carries CE conformity, and supports RoHS/REACH requirements for modern plant environments. As part of the SACE Tmax T family, it offers a 4-pole design and front-terminal access, enabling straightforward installation and future upgrades. With an 800 A rating and robust protection features, it helps reduce downtime while delivering predictable operation for critical loads.
Product Information
Extended Description

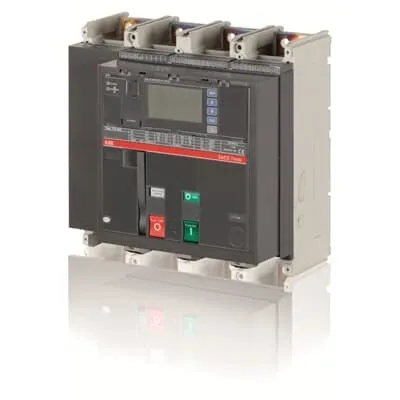

1SDA062736R1 ABB: C.BREAKER TMAX T7V 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR332/P-LSIRc R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644652852
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
178 mm
Product Net Weight
14 kg
Package Level 1 Units
1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
15.5 kg
Package Level 1 EAN
8015644652852
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7M
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR332/P-LSIRc
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: 4-pole fixed design with front terminals. Business Impact: simplifies wiring routing, reduces panel depth and field wiring errors. Application: retrofit in control cabinets and new switchboards where maintainability matters. Paragraph two: Feature: 800 A rated current and 690 V AC operating voltage with 1000 V insulation rating. Business Impact: supports high‑power loads with ample protection margin, enabling scalable plant expansion. Application: motor drives, conveyors, and power feeders in manufacturing lines. Paragraph three: Feature: Uimp 8 kV and Icu up to 60 kA at 690 V, with Ics up to 200 kA at lower voltages. Business Impact: ensures fast, reliable interruption and minimizes fault energy, protecting transformers and critical equipment. Application: data centers, process lines, and renewable integration. Paragraph four: Feature: Electrical durability rated at 3000 cycles and mechanical durability at 10000 cycles. Business Impact: longer service life reduces maintenance costs and downtime. Application: continuous-duty protection in harsh industrial environments. Paragraph five: Feature: Power loss of 32 W per pole. Business Impact: lowers heat in switchgear and improves overall energy efficiency. Application: compact panels with high packing density. Paragraph six: Feature: Full compliance footprint including IEC standards, CE declarations, RoHS/REACH, CMRT, and WEEE packaging. Business Impact: mitigates regulatory risk and supports responsible sourcing. Application: global deployments and supplier quality programs. Paragraph seven: Feature: Dimensions 280 mm W × 268 mm H × 178 mm D and weight 14 kg. Business Impact: precise space planning and handling during installation. Application: panel design, enclosure selection, and inventory planning.
