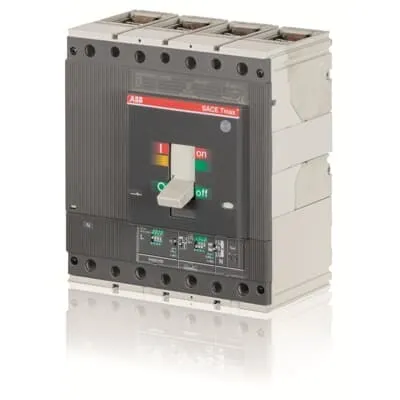

ABB 1SDA063453R1 Moulded Case Circuit Breaker - Tmax T5, 4P, 630 A, IEC
Part Number: 1SDA063453R1
Quick Summary
ABB 1SDA063453R1 is a Moulded Case Circuit Breaker that protects industrial power distribution networks. Engineers often confront nuisance trips, space constraints, and upgrade hurdles that increase downtime and total ownership costs. The device aligns with IEC standards and CE declarations, and supports RoHS, REACH, and CMRT for regulatory compliance across regions. Designed for the Tmax T5 family with 4P architecture, front terminals for copper cabling, and a 1150 V rating, it enables scalable, safer panels while reducing lifecycle costs.
Product Information
Extended Description
1SDA063453R1 ABB: C.BREAKER TMAX T5V 630 1150V AC FIXED FOUR-POLE WITH FRONT TERMINALS FOR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-I R 630
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
EAN
8015644660772
Minimum Order Quantity
1 piece
Customs Tariff Number
85352100
Product Net Width
184 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
6.2 kg
Package Level 1 Units
1 piece
Package Level 1 Width
248 mm
Package Level 1 Height
240 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Gross Weight
6.2 kg
Package Level 1 EAN
8015644660772
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
5000 cycle | 60 cycles per hour
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 41 W
Rated Current (In)
630 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1150 V
Rated Operational Voltage
1150 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(1000 V AC) 10 kA | (1150 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(1000 V AC) 20 kA | (1150 V AC) 12 kA
Rated Uninterrupted Current (Iu)
630 A
Release
PR221DS-I
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front for Copper Cables
Data Sheet, Technical Information
U.S. Catalog - SACE Tmax for special applications. Adaptability, versatility and complete freedom
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
GL Certificate
1SDL000163R0062
Instructions and Manuals
Tmax T5 1000 V AC/DC - 1150V AC
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Four-pole fixed MCCB with front terminals for copper cables. Business Impact: Simplified wiring, robust fault isolation, and faster panel assembly, reducing commissioning time in control cabinets. Application: Ideal for MCCB-based feeders in factory automation and process industries. Feature: Rated current 630 A and insulation voltage 1150 V. Business Impact: Supports high-load distribution and enhanced insulation margin, lowering risk of overvoltage damage. Application: Medium- to high-power distribution in manufacturing lines. Feature: High short-circuit ratings—Ics (1000 V) up to 10 kA and (1150 V) up to 6 kA; Icu (1000 V) up to 20 kA and (1150 V) up to 12 kA. Business Impact: Fast fault clearance improves equipment safety and reduces arc-flash exposure. Application: Transformer and generator protection in substations and switchboards. Feature: Release PR221DS-I (EL type). Business Impact: Precise, selective tripping supports coordination schemes and reduces unwanted outages. Application: Protective relays integration in Tmax T5 systems. Feature: Compliance and lifecycle data—RoHS/REACH, CMRT, EC DoC, and packaging information. Business Impact: Smooth regulatory audits, lower risk in cross-border procurement, and easier end-of-life planning. Application: Global deployment in multi-site projects. Feature: Mechanical and electrical durability—5000 cycles at 60 cycles/hour and 20000 cycles mechanical. Business Impact: Predictable maintenance intervals and extended service life. Application: Heavy automation equipment and continuous process lines. Feature: Weight and dimensions—6.2 kg, 184 mm width, 205 mm height, 103.5 mm depth. Business Impact: Helps fit within panel layouts and simplifies enclosure design. Application: Control panels and MCC assemblies in compact spaces.
Get a Quick Quote for a ABB 1SDA063453R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA063453R1?
Enquire Now
FAQs
Install the 4P unit with front terminals designed for copper cables, using appropriate panel cutouts and mounting hardware. Connect phase, neutral, and grounding per the wiring diagram, ensuring the breaker sits securely in the busbar area. Leave required clearances for ventilation and perform a functional test to verify trip and release operation.
Rated current is 630 A with a rated insulation voltage of 1150 V and a rated impulse withstand of 8 kV. It provides Ics up to 10 kA at 1000 V or 6 kA at 1150 V, and Icu up to 20 kA at 1000 V or 12 kA at 1150 V. The device has 4 poles and uses PR221DS-I release with EL type.
Yes. The Tmax T5 MCCB is designed for transformer and generator protection in medium- to high-power applications. Its 4P configuration, front-terminal design, high Ics/Icu ratings at 1150 V, and UL/IEC conformity support reliable fault clearance and selective tripping in protection schemes for substations and MCC panels.
The device carries CE Declaration of Conformity, RoHS declaration and status, REACH declaration, and CMRT documentation. It also references environmental and safety declarations aligned with IEC standards, supporting regulatory compliance and supplier audits across markets.
Electrical durability is rated at 5000 cycles (60 cycles per hour) and mechanical durability at 20000 cycles. This translates to longer service intervals and predictable performance in continuous automation environments, reducing downtime and maintenance costs while preserving protection integrity.
