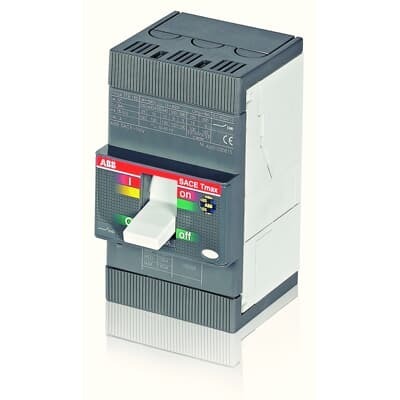

ABB 1SDA063525R1 Moulded Case Circuit Breaker - IEC 60947
Part Number: 1SDA063525R1
Quick Summary
ABB 1SDA063525R1 Moulded Case Circuit Breaker provides four-pole protection for industrial control panels. Engineers often struggle with reliable protection and maintenance in crowded switchgear, so this unit offers front-terminal wiring for copper cables and a robust thermomagnetic release. Certified to IEC 60947, CE conformity, and GL certification, it delivers global safety and traceability for panel builders and OEMs across multiple geographies. As part of the SACE Tmax T family, it combines high-performance protection with easy installation and dependable lifecycle support for demanding industrial applications.
Product Information
Extended Description
1SDA063525R1 ABB: C.BREAKER TMAX T1B 160 FIXED FOUR-POLE WITH FRONT TERMINALS FOR CABLE Cu 70mm2 AND THERMOMAGNETIC RELEASE TMD R 50-500 A
EAN
8015644661632
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Replacement Part Number (NEW)
1SDA066815R1
Product Net Width
102 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.3 kg
Package Level 1 Units
1 piece
Package Level 1 Width
128 mm
Package Level 1 Height
135 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Gross Weight
1.4 kg
Package Level 1 EAN
8015644661632
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Version
F
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
25000 cycle | 240 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 3,7 W
Rated Current (In)
50 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
800 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 25 kA | (230 V AC) 25 kA | (380 V AC) 16 kA | (415 V AC) 16 kA | (440 V AC) 10 kA | (500 V AC) 8 kA | (690 V AC) 3 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 2.5 kA | (230 V AC) 2.5 kA | (380 V AC) 16 kA | (415 V AC) 16 kA | (440 V AC) 10 kA | (500 V AC) 8 kA | (690 V AC) 3 kA | (250 V DC) 2 Poles in Series 16 kA | (250 V DC) 3 Poles in Series 20 kA | (500 V DC) 3 Poles in Series 16 kA
Rated Uninterrupted Current (Iu)
160 A
Release
TMD
Release Type
TM
Short-Circuit Performance Level
B
Standards
IEC 60947
Sub-type
T1
Terminal Connection Type
Fixed Circuit-Breakers | Front for Copper Cables
Test Voltage Max (Utest)
3000 V
Data Sheet, Technical Information
1SDC210033D0202
Declaration of Conformity - CE
1SDL000165R0001
GL Certificate
1SDL000163R0058
Instructions and Manuals
1SDC210015D0207
Object Classification Code
Q
Feature → Business Impact → Application: Front-terminal connection for copper cables (70 mm2) reduces wiring time and minimizes terminal impedance, improving overall panel reliability in high-demand machinery assemblies. This translates to faster commissioning and lower maintenance costs in automotive, packaging, and conveyor systems. Feature → Business Impact → Application: 4P protection with rated current of 50 A delivers precise overload and short-circuit protection, supporting safe machine operation and reducing downtime in production lines. Feature → Business Impact → Application: Thermomagnetic release TMD provides fast, coordinated tripping with predictable nuisance tripping behavior, increasing safety in robotics cells and material handling systems. Feature → Business Impact → Application: 690 V AC / 500 V DC operating voltage and 8 kV impulse withstand enable use in mixed voltage panels, ensuring compliance in diversified plant architectures. Feature → Business Impact → Application: Front for copper cables with fixed terminal connections simplifies installation and reduces rebuild time during retrofits or capacity upgrades. Feature → Business Impact → Application: IEC 60947 compliance and GL/CE declarations give confidence for global deployments, procurement standardization, and long-term spare-part availability.
Get a Quick Quote for a ABB 1SDA063525R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA063525R1?
Enquire Now
FAQs
The 1SDA063525R1 uses fixed front-terminal connections designed for copper cables up to 70 mm2. For installation, prepare clean copper conductors, insert them into the front terminals, and tighten to the specified torque. Use the 4P configuration to ensure proper alignment and secure mounting in a compatible panel frame. Verify insulation, ground continuity, and secure wiring before energizing.
Key ratings include rated current of 50 A, rated insulation voltage 800 V, and rated operational voltage 690 VAC / 500 V DC. Short-circuit performance maxes at Ics up to 25 kA at 230 V and 16 kA at higher voltages; Icu up to 16 kA depending on configuration. Test voltage is 3000 V, and the device carries 8 kV impulse withstand. These specs support reliable protection in mixed-voltage panels.
Yes, it is designed for 690 V AC operation with 500 V DC compatibility. It provides four-pole protection with thermomagnetic release (TMD) for reliable overload and short-circuit protection, meeting IEC 60947 requirements. This makes it suitable for LV switchgear, machine controls, and industrial automation panels that operate at higher voltages.
The device complies with IEC 60947, has CE conformity, and carries a GL certificate. These certifications validate safety, reliability, and cross-border acceptance, supporting procurement standardization and regulatory compliance across multinational projects.
The unit features an 8000-cycle electrical durability and a 25000-cycle mechanical durability rating, supporting frequent operation in high-demand lines. Plan periodic inspection of terminals, verify torque on connections, and monitor tripping behavior during routine tests. Its robust front-terminal design and standard spare-part availability help minimize downtime during replacement or upgrades.
