ABB 1SDA063554R1 Accessory for Tmax T - RoHS Status

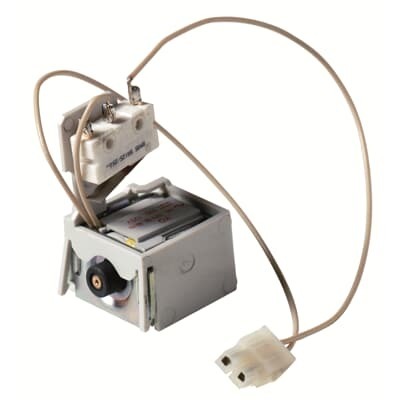

Part Number: 1SDA063554R1
Quick Summary
ABB 1SDA063554R1 is an accessory for Tmax T circuit breakers that provides remote trip reset control in industrial control panels. Field teams often face downtime when resets must be performed at live equipment; this device enables a safe, quick remote reset from a protected location. Key certifications include CE conformity, RoHS compliance under EU directives, TSCA declarations, and CMRT reporting for responsible sourcing. By fitting neatly into Tmax T systems, it complements T7M-X1 configurations and X1 extensions, delivering streamlined installation and ongoing reliability for plant-wide protection and control.
Product Information
Extended Description
1SDA063554R1 ABB: REMOTE RESET ELECTRICAL SUP. VOL.24...30V AC-DC FOR TRIP PR231-PR232-PR33x T7M-X1
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8015644661984
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
1 piece
Package Level 1 Width
150 mm
Package Level 1 Height
30 mm
Package Level 1 Depth / Length
180 mm
Package Level 1 Gross Weight
0.072 kg
Package Level 1 EAN
8015644661984
Product Main Type
Accessories for Tmax T
Product Name
Accessory
Product Type
Accessory
Suitable For
T7, X1
Suitable for Product Class
SACE Emax | SACE Tmax T
Configuration Type
Loose or configurable
Number of Auxiliary Contacts CO (SPDT)
1
Standards
IEC
Data Sheet, Technical Information
SACE Tmax. T Generation. Low voltage moulded-case circuit-breakers from 250 A up to 1600 A | U.S. Catalog - SACE Tmax for special applications. Adaptability, versatility and complete freedom
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Trip reset for T7M-X1
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371302
Remote trip reset capability reduces downtime and exposure risk by enabling fast resets from a remote, safe location, improving overall line availability and worker safety in manufacturing environments. The accessory includes one SPDT auxiliary contact (CO 1) which provides clear signaling for control logic, alarms, and interlock circuits, enabling tighter integration with existing PLCs and HMI systems. With a loose or configurable mounting option, installation is flexible for retrofits and new builds, minimizing panel downtime and simplifying field commissioning. The operating voltage range of 24–30 V AC/DC supports both common control circuits and mixed-voltage architectures, reducing the need for additional power adapters and simplifying stock. Regulatory and environmental compliance documentation, including RoHS, TSCA, and CMRT, enhances procurement confidence and audit readiness, while compact packaging supports efficient warehousing and logistics for project-based work. Designed for Tmax T family use, it aligns with SACE Emax and Tmax T classes, ensuring compatibility across product families and future upgrades without significant rework.
Get a Quick Quote for a ABB 1SDA063554R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA063554R1?
Enquire Now
FAQs
Install the device as a loose or configurable accessory in the Tmax T panel, connect the 24–30V control supply to the auxiliary contact, and follow the Trip Reset instructions in the manual. Verify RoHS/CE compliance during commissioning and test the remote reset function from a safe location.
The accessory operates at 24–30V AC/DC and includes 1 SPDT (CO) auxiliary contact, enabling remote signaling and control without altering the main breaker wiring.
Yes. The part is designed for Tmax T family applications and is suitable for T7M-X1 and X1 configurations, providing a seamless retrofit path for existing Tmax T installations.
The product carries CE conformity, RoHS compliance per EU directives, TSCA declaration, and CMRT reporting, with an Environmental/EPD context (NoDecNee) as applicable for environmental transparency.
Using this accessory reduces maintenance downtime, lowers operator exposure during resets, simplifies procurement with compliant documentation, and supports consistent Tmax T performance across plant sites.
