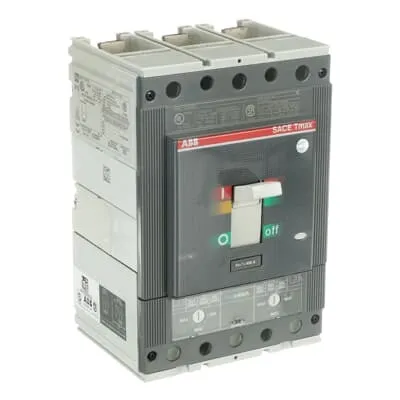

ABB 1SDA064133R1 Moulded Case Breaker - UL/CSA 400A
Part Number: 1SDA064133R1
Quick Summary
Moulded Case Circuit Breaker ABB 1SDA064133R1 protects power distribution in industrial facilities. This solution helps reduce nuisance trips and simplifies panel wiring in crowded control cabinets. UL-listed for safety, CE-conformant with RoHS/REACH declarations, and TSCA-compliant, it offers robust regulatory alignment while maintaining performance. Designed for 2P services with front terminals, it delivers reliable protection across AC and DC systems up to 600 V, supporting scalable protection for transformers, generators, and motor loads. The combination of high current capability and compact front-terminal design translates into faster installation, lower total cost of ownership, and improved overall plant uptime.
Product Information
Extended Description
1SDA064133R1 ABB: C.BREAKER TMAX T5N 400 UL/CSA FIXED TWO-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 A
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
Order Code US and Canada
T5N400TW-2
EAN
8015644669942
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
140 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
3.25 kg
Package Level 1 EAN
8015644669942
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
2P
Rated Current (In)
400 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
600 V AC | 600 V DC
Rated Uninterrupted Current (Iu)
400 A
Release
TMA
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front
Interrupting Rating acc. to UL489
(240 V AC) 65 kA | (480 V AC) 25 kA | (600 V AC) 18 kA | (500 V DC) 2 Poles in Series 25 kA | (600 V DC) 3 Poles in Series 16 kA
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
Instructions and Manuals
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature 2P front-terminal design → Speeds up panel mounting and wiring, reducing installation time and field errors. Business Impact: Faster commissioning and lower labor cost; Application: Control cabinets and switchgear with limited clearance. Feature 400 A rated current → Handles high load with precise protection, minimizing unnecessary trips. Business Impact: Lower downtime and improved motor and line protection; Application: Main feeders and MCCs. Feature 8 kV rated impulse withstand voltage → Enhanced fault resilience in harsh industrial environments. Business Impact: Higher reliability under surge conditions; Application: feeders near switching devices and transformers. Feature Ui 1000 V and rated operational voltage 600 V AC/DC → Wide system compatibility, enabling use in mixed electrical networks. Business Impact: Reduces need for different breakers; Application: Power distribution across varied plant sections. Feature TMA release and TM trip characteristics → Fast, selective tripping for effective short-circuit control. Business Impact: Improved system selectivity and safety; Application: Transformer/generator protection schemes. Feature UL/CE/RoHS/REACH/TSCA compliance → Regulatory certainty and sustainability alignment. Business Impact: Streamlined procurement and risk management; Application: Global projects and compliance-driven deployments. Feature 3.25 kg weight with fixed front terminals → Solid mounting with predictable handling and serviceability. Business Impact: Safer installation and easier maintenance; Application: Wall or rack-mounted panels in industrial environments.
Get a Quick Quote for a ABB 1SDA064133R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA064133R1?
Enquire Now
FAQs
This device uses fixed front terminals and is a 2P configuration designed for panel mounting. Plan for space in the control cabinet to accommodate a 140 mm wide unit, ensure proper panel cutouts, and follow the installation manual for terminal torque and conductor sizing to maximize reliability.
The breaker delivers 400 A rated current (In), Ui 1000 V insulation, Uimp 8 kV impulse withstand, and operates at 600 V AC/DC. With UL rating and 2P protection, it is suitable for primary protection in power distribution, feeders, and transformer or generator sections requiring reliable short‑circuit interruption.
Yes. The product is part of the Tmax T family and is specified for transformer and generator protection in distribution systems. Its front-terminal 2P design and high interrupting capability support selective tripping and rapid fault isolation in transformer-fed or generator-backed networks.
It carries UL certification, CE Declaration of Conformity, and RoHS/REACH compliance, with CMRT and TSCA declarations available. This mix of certifications ensures regulatory compliance for global deployments, supports safe supply chain decisions, and aligns with sustainability goals.
Mechanical durability is rated at up to 20,000 cycles, with front-terminal connectivity designed for long service life and ease of replacement. Regular inspection of connections and periodic testing per maintenance schedules help prevent unplanned outages, delivering lower total cost of ownership through higher reliability.
