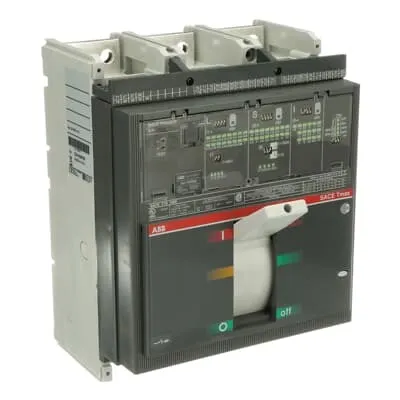

ABB 1SDA064765R1 Moulded Case Circuit Breaker - UL 489 3P
Part Number: 1SDA064765R1
Quick Summary
ABB 1SDA064765R1 is a moulded case circuit breaker that provides reliable overcurrent protection for three-pole power distribution and motor feeders. Engineers often struggle to find protection that is rugged, easy to wire in front-terminal panels, and quick to service after fault events. UL-listed and CE-declared with RoHS compliance, this Tmax T7 family MCCB helps reduce compliance risk across global sites. For high-current applications, its 1000 A rating and 600 V AC operating range deliver scalable protection with predictable tripping. The front-terminal, fixed-circuit-breaker design simplifies installation and maintenance, supporting uptime in industrial plants, manufacturing lines, and transformer or generator feeders.
Product Information
Extended Description
1SDA064765R1 ABB: C.BREAKER TMAX T7S 1000 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR232/P-LSI R 1000
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
43b7a4e9-69a1-4e88-9c82-c2776cc4482e Italy (IT)
Simplified SCIP
cf2a9ed9-19c2-409e-82e0-16aaafa213a4 Germany (DE) | a4fd00ff-050c-4ce7-8bd5-e86d9cebc8fa Netherlands (NL) | 6f98c91c-4925-4b47-81f9-2520e1257cb0 Estonia (EE) | a998e755-c03a-4d67-b9d9-d9827e469a08 Greece (GR) | b3689f15-6f4c-42b1-a8f5-bc4a6348394b Portugal (PT) | b570c5bc-a80a-4b59-a896-aa327453cce5 Netherlands (NL) | b35d4766-c948-4796-99ec-9a710f5e55a3 Germany (DE) | 302f5446-49e0-491b-906d-6b5e74512120 Denmark (DK) | 49f741c8-e70d-4ea3-85ff-e0fc8b2e96af Germany (DE) | d18d4fc1-65d8-4a13-ae49-c32f087648f4 Croatia (HR) | be373f6f-3696-4de8-848d-b2fbf41ed1e2 Czech Republic (CZ) | 460da1dd-837f-469c-bae4-9b1d56c49e84 Poland (PL) | aaac3372-df85-4299-b242-b242b03d7eb1 Netherlands (NL) | ae607fc1-e128-4e8b-bbec-70f03be25d6e Bulgaria (BG) | 3223b113-b273-45d9-9e40-8d787067e5b8 Sweden (SE) | 390b58a2-f5fc-4d0a-847f-88b01d7d2a47 Poland (PL) | 8d74fefe-8ae2-4a55-9920-ef414757e7b0 France (FR) | 2646edea-ac68-46c1-999c-1d480cc9e32f Sweden (SE) | b2fd9927-a8b9-4b25-8bf2-707a7562a3e0 Germany (DE) | 8ff8af4d-3b34-47a2-b8ad-e450d374fca9 Germany (DE) | 617a5ab7-58b1-4ef8-b7e9-7074a9a52a1f France (FR) | 484ac590-6d6c-44ce-a816-b5bf6f6ac0a1 Netherlands (NL) | c0f679be-6da9-46f2-bfe8-e58c833504c7 Spain (ES) | ce162592-5a70-4e68-9057-5361a99cdff2 Netherlands (NL) | 13554b64-900c-4b57-8f57-8e735e8fff49 Poland (PL) | 83110fe5-46b0-4f98-ad5b-94a9ae6b4090 Finland (FI) | c1a66cf0-68a9-475b-a629-60ceafbac202 Norway (NO)
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
Order Code US and Canada
T7S1000CW
EAN
8015644676605
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
154 mm
Product Net Weight
9.7 kg
Package Level 1 EAN
8015644676605
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 30 W
Rated Current (In)
1000 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
600 V AC
Rated Uninterrupted Current (Iu)
1000 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
S
Standards
UL
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Interrupting Rating acc. to UL489
(240 V AC) 65 kA | (480 V AC) 50 kA | (600 V AC) 25 kA
Data Sheet, Technical Information
9AKK105713A5947
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0055
Instructions and Manuals
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
