ABB 1SDA065757R1 Switch Disconnector - Tmax T8
Part Number: 1SDA065757R1
Quick Summary
ABB 1SDA065757R1 is a four-pole switch-disconnector for reliable isolation in low-voltage switchgear. Engineers often struggle with downtime and wiring complexity when installing rear-terminal devices in compact panels. This Tmax T8 device carries CE conformity, RoHS and REACH compliance, and CMRT/TSCA declarations to support regulatory and supply-chain requirements. With fixed rear-terminal mounting and a proven durability profile, it delivers safer panels, easier service, and lower maintenance costs over the life of the installation.
Product Information
Extended Description

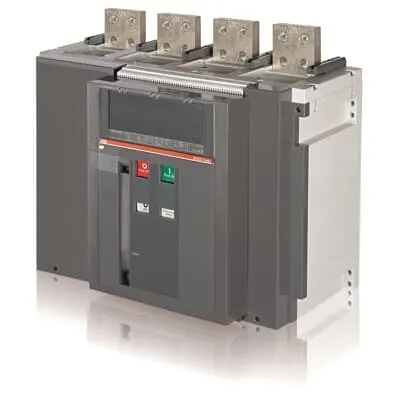

1SDA065757R1 ABB: SWITCH-DISCONNECTOR TMAX T8D 3200 FIXED FOUR-POLE WITH TERMINALS REAR VERTICAL
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T8 | Breakers - Packaging disposal information
EAN
8015644686680
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
553 mm
Product Net Height
382 mm
Product Net Depth / Length
282 mm
Product Net Weight
13.2 kg
Package Level 1 Units
1 piece
Package Level 1 Width
650 mm
Package Level 1 Height
665 mm
Package Level 1 Depth / Length
695 mm
Package Level 1 Gross Weight
14.7 kg
Package Level 1 EAN
8015644686680
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Switch Disconnector
Version
F
Electrical Durability
3000 cycle | 20 cycles per hour
Mechanical Durability
15000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 117 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 A
Rated Uninterrupted Current (Iu)
3200 A
Short-Circuit Performance Level
D
Standards
IEC
Sub-type
T8
Terminal Connection Type
Fixed Circuit-Breakers | Rear flat Vertical
Data Sheet, Technical Information
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T8
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Four-pole Tmax T8 design configured for 690 V AC operation and 8 kV impulse withstand, plus 1000 V insulation voltage. Business Impact: Enables safe isolation of large circuits with high transient resilience, reducing risk during switching events. Application: Ideal for transformer or generator protection and distribution panels in industrial settings. Feature: Rear flat vertical terminals and fixed circuit-breaker construction. Business Impact: Streamlines wiring, minimizes panel depth, and simplifies retrofit projects while maintaining robust contact integrity. Application: Suitable for open or cabinet-mounted switchgear where tidy, durable terminations are required. Feature: Electrical durability rated at 3000 switching cycles (20 cycles/hour) and mechanical durability at 15000 cycles (60 cycles/hour). Business Impact: Extends service life, lowers maintenance frequency and replacement costs in high-demand environments. Application: Continuous operation in manufacturing lines and process plants. Feature: Power loss of 117 W per pole under rated conditions. Business Impact: Lower energy waste and cooler panel temperatures translate to improved overall system efficiency. Application: Energy-conscious LV distribution in data centers and automation panels. Feature: RoHS, REACH, CMRT and TSCA declarations with IEC standards support. Business Impact: Simplifies compliance audits, procurement risk management, and sourcing transparency. Application: Global projects requiring regulatory traceability and responsible supply chains.
