ABB 1SDA065769R1 Moulded Case Breaker - Ics100kA
Part Number: 1SDA065769R1
Quick Summary
ABB 1SDA065769R1 Moulded Case Breaker protects critical electrical systems in industrial plants by interrupting fault currents. Engineers often wrestle with downtime and maintenance costs when breakers trip inconsistently. Certified to IEC standards with CE conformity and RoHS compliance, this model delivers reliable protection with an Ics rating up to 100 kA. Designed for Tmax T generation and front-terminal mounting, it integrates with ABB EcoSolutions, delivering lifecycle reliability and simplified spare parts management. Its 3P configuration, fixed front terminals, and PR232/P-LSI release simplify installation in control panels and switchgear, enabling fast commissioning and clear audit documentation for regulatory reviews.
Product Information
Extended Description

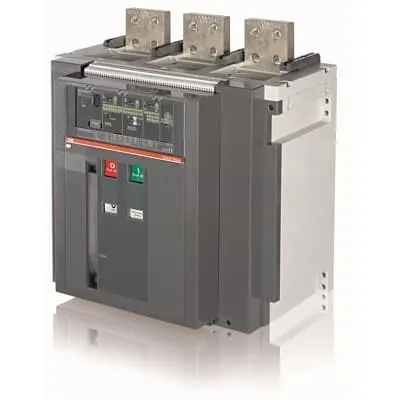

1SDA065769R1 ABB: C.BREAKER TMAX T8V 2000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR331/P-LSI R 2000
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
f98739bd-e9bd-4406-b437-9a4571f5492f Italy (IT)
Simplified SCIP
eee1dfd7-931a-449e-bf86-04842f44ca35 Greece (GR) | 864ed601-29cb-4747-bc87-00c6ed0915c9 Poland (PL) | 7d32eaa8-95e2-4c6e-a420-6ed2d51bf788 Spain (ES) | 148755ec-878a-4934-87be-a849fb7b3fbc Belgium (BE) | 541b3004-48fc-4872-a0b5-fc385444111b Germany (DE) | 98310efc-1de9-4f7f-bd0b-5bb0aa84d79e Finland (FI) | cb47b1a5-8e0f-4139-bfad-b672ad298e9c Norway (NO) | b43f9e5d-750a-4855-94c4-e5e5192127c8 Estonia (EE) | ed07d2f8-34a9-4b19-8c44-ee3e643bf590 Poland (PL) | 7aa90c68-1798-4b0c-a37c-941380b57fd3 Germany (DE) | 1007d6c9-56d4-4753-aa0a-71886450ba96 Netherlands (NL) | 0e441fc5-fc8c-4916-bbc1-eb277e92fb93 Belgium (BE) | 64841914-f340-4486-afe7-0c697a8a52ce Bulgaria (BG) | 0451781d-7dc5-41c8-9a39-d277d46bb388 France (FR) | 6644c1df-213c-433e-bb03-946d066545cd Croatia (HR) | 98ac3f76-bc82-46fa-b47e-540abeabe392 Germany (DE) | 725ce1cd-c1d4-4ad6-a699-488e32a603e4 Czech Republic (CZ) | 648ae4b2-7be4-4143-bb9e-6ffc6bf75ef3 Sweden (SE) | 9960fd69-cc76-4024-b1ff-3caf18ec4e74 France (FR) | 58fedb38-4395-4bbc-85dc-2aa581885793 Poland (PL) | e70dfad9-d8eb-40be-bb23-4bcd465c9f31 Sweden (SE) | d5512b09-f189-4eac-9a08-b726b2f324cc Germany (DE) | c3ee9d05-0a17-41ce-98aa-eb73e076aecb Germany (DE) | 340eb98c-d1f3-4ad2-8afd-3b541c72755c Portugal (PT) | 88f82310-c704-478a-9a43-8c154a172aec Hungary (HU) | 9636b86c-70a1-4a7d-8240-9c004cb2e01e Denmark (DK) | ee5734e7-3236-4486-b184-f52d88437b31 Hungary (HU)
Environmental Information
Product Environmental Information Tmax T8 | Breakers - Packaging disposal information
Order Code US and Canada
T8VFD3GC000000XX
EAN
8015644686802
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
427 mm
Product Net Height
382 mm
Product Net Depth / Length
282 mm
Product Net Weight
9.7 kg
Package Level 1 Units
1 piece
Package Level 1 Width
525 mm
Package Level 1 Height
475 mm
Package Level 1 Depth / Length
695 mm
Package Level 1 Gross Weight
11.2 kg
Package Level 1 EAN
8015644686802
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
4500 cycle | 20 cycles per hour
Mechanical Durability
15000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 46 W
Rated Current (In)
2000 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (380 V AC) 100 kA | (400 V AC) 100 kA | (415 V AC) 100 kA | (440 V AC) 100 kA | (500 V AC) 75 kA | (690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 1.3 kA | (230 V AC) 1.3 kA | (380 V AC) 130 kA | (400 V AC) 130 kA | (415 V AC) 130 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
2000 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T8
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T8
Wiring Diagram
Wiring diagram T8
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: 3P fixed front-terminal design enables straightforward mounting and safe wiring in compact control cabinets. Business Impact: Reduces installation time, minimizes wiring errors, and improves long-term reliability in machine centers and distribution panels. Application: Ideal for motor control centers and switchgear where panel density is high. Feature: Ics up to 100 kA with 690 V AC rating provides robust short-circuit protection for high-energy loads. Business Impact: Limits fault energy, protects downstream equipment, and maintains line availability in manufacturing lines and process plants. Application: Transformer protection, feeder sections, and critical drives. Feature: PR232/P-LSI electronic release delivers precise tripping and improved selectivity. Business Impact: Reduces nuisance trips, lowers maintenance windows, and extends component life in conveyors and packaging lines. Application: Protective coordination in multi-device schemes. Feature: Regulatory compliance (IEC, CE, RoHS) and SCIP/CMRT declarations support global sourcing. Business Impact: Easier cross-border procurement, faster audits, and regulatory assurance for international projects. Application: Global plant rollouts and supplier qualification. Feature: Front-terminal design and Tmax Tmax T lineage compatibility with EcoSolutions streamline commissioning and spare-parts management. Business Impact: Shortens startup time, simplifies stocking, and minimizes vendor lock-in. Application: Panel builders and system integrators delivering turnkey protection schemes. Technical note: Power loss per pole is 46 W under rated conditions, contributing to cooler switchgear environments and improved overall energy efficiency in the panel assembly.
Get a Quick Quote for a ABB 1SDA065769R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA065769R1?
Enquire Now
FAQs
This unit uses a 3P fixed front-terminal design suitable for control panels, switchgear, and motor control centers. It integrates with Tmax T generation, supports front wiring access, and is ideal where compact, reliable protection is required in 690 V AC systems and high-current feeds.
The breaker delivers a rated short-circuit breaking capacity (Ics) up to 100 kA across applicable voltages, with a rated impulse withstand voltage (Uimp) of 8 kV and a rated insulation voltage (Ui) of 1000 V, ensuring robust protection for high-energy loads.
Yes. It carries CE conformity and RoHS compliance, aligned with IEC standards. Additional compliance details include SCIP and CMRT declarations for traceability of materials and conflict minerals, facilitating regulatory and sustainability requirements in global projects.
The device offers electrical durability up to 4500 cycles and mechanical durability up to 15000 cycles, supporting long service life in continuous-operation environments. These characteristics reduce maintenance frequency and downtime, improving total cost of ownership for critical processes.
Key factors include the front-terminal mounting for easier wiring, the 3P configuration for straightforward circuit protection coordination, and the PR232/P-LSI release for precise tripping. The unit’s weight and dimensions fit commonly used panel spaces, supporting faster panel builds and easier spare-parts planning.
