ABB 1SDA065775R1 Moulded Case Circuit Breaker - T8
Part Number: 1SDA065775R1
Quick Summary
ABB 1SDA065775R1 is a 4P moulded-case circuit breaker for reliable LV distribution protection. Front-terminal design and a robust PR232/P-LSI solid-state release simplify wiring during installation and speed service in tight switchgear. It carries CE conformity, RoHS and REACH declarations, along with TSCA and CMRT compliance to support regulated supply chains. In demanding industrial environments, this unit offers high-current protection with scalable, easy-to-maintain performance, making it a practical choice for data centers, manufacturing floors, and transformer-protection panels. By combining strong electrical durability with a compact footprint, it helps you meet uptime targets and regulatory requirements while reducing maintenance frequency and total cost of ownership.
Product Information
Extended Description

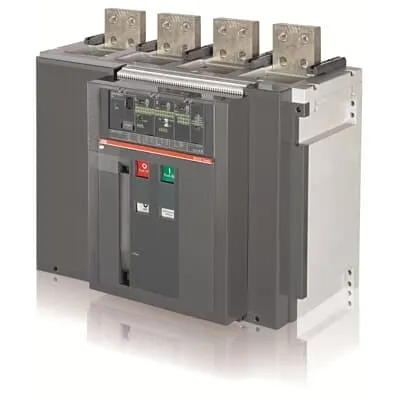

1SDA065775R1 ABB: C.BREAKER TMAX T8V 2000 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR331/P-LSI R 2000
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T8 | Breakers - Packaging disposal information
Order Code US and Canada
T8VFD4GC000000XX
EAN
8015644686864
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
553 mm
Product Net Height
382 mm
Product Net Depth / Length
282 mm
Product Net Weight
12.5 kg
Package Level 1 Units
1 piece
Package Level 1 Width
650 mm
Package Level 1 Height
475 mm
Package Level 1 Depth / Length
695 mm
Package Level 1 Gross Weight
14 kg
Package Level 1 EAN
8015644686864
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
4500 cycle | 20 cycles per hour
Mechanical Durability
15000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 46 W
Rated Current (In)
2000 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (380 V AC) 100 kA | (400 V AC) 100 kA | (415 V AC) 100 kA | (440 V AC) 100 kA | (500 V AC) 75 kA | (690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 1.3 kA | (230 V AC) 1.3 kA | (380 V AC) 130 kA | (400 V AC) 130 kA | (415 V AC) 130 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
2000 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T8
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T8
Wiring Diagram
Wiring diagram T8
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4934 >> 4 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Four-pole fixed configuration with front-terminal connection. Business impact: Safer, faster wiring and dependable fault clearance in crowded switchgear cabinets. Application: Ideal for main distribution panels and transformer rooms in manufacturing facilities. Feature: Rated current up to 2000 A with high breaking capacity (Icu up to 130 kA at 380–440 V). Business impact: Protects large feeders without nuisance trips, enabling reliable operation of critical loads. Application: Data centers, heavy manufacturing lines, and large motors. Feature: PR232/P-LSI solid-state release. Business impact: Fast, precise tripping and improved selective coordination reduce arc energy and downtime. Application: Motor starter protection and transformer feeders in LV networks. Feature: Front-terminal, fixed circuit-breaker design. Business impact: Simplifies installation, testing, and maintenance with safer, accessible wiring and reduced commissioning time. Application: New builds and panel rebuilds in control cabinets. Feature: Comprehensive environmental and regulatory compliance (RoHS, REACH, CMRT, TSCA, CE). Business impact: Eases global procurement and regulatory approvals, lowering risk and audit effort. Application: Multinational manufacturing and utilities with cross-border supply chains. Feature: 690 V AC rated operational voltage and IEC standard alignment. Business impact: Supports compatibility with common LV distribution topologies while ensuring interoperability. Application: Power distribution panels, transformers, and generator feed protection in industrial environments.
Get a Quick Quote for a ABB 1SDA065775R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA065775R1?
Enquire Now
FAQs
This 4P fixed MCCB with front-terminal connections is designed to integrate with standard low-voltage switchgear. Ensure panel cutouts and mounting dimensions align with the 553 mm width and 382 mm height, and verify wiring harnesses accommodate front-access terminals. Follow the datasheet wiring diagram for correct phase sequencing and torque recommendations to avoid mis-tripping during commissioning.
Key specs include a rated current of 2000 A, rated operational voltage of 690 V AC, insulation voltage of 1000 V, rated impulse withstand voltage of 8 kV, and four poles. It offers high breaking capacity (Icu up to 130 kA at 380–440 V) and a PR232/P-LSI release for solid-state tripping, suitable for demanding LV protection tasks.
Yes. With a 2000 A rating, 690 V AC operation, and high breaking capacity, the unit provides reliable protection for transformer feeders and critical data-center power paths. The front-terminal design simplifies integration into compact switchgear, while the PR232/P-LSI release supports fast fault isolation to minimize downtime.
The device carries CE conformity and DoC, RoHS and REACH declarations, TSCA, and CMRT. These certifications support compliance across EU and global supply chains, helping procurement teams meet regulatory, sustainability, and supplier due-diligence requirements.
The front-terminal design reduces wiring complexity and maintenance time, while the high current rating and robust release system improve uptime and fault isolation. Over a typical lifecycle, customers can expect lower maintenance windows, reduced spare-part requirements for high-throughput feeders, and improved asset protection, contributing to a favorable total cost of ownership.
