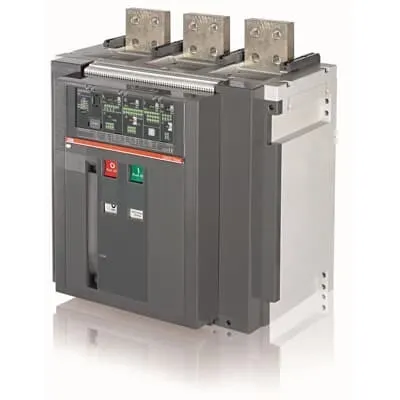

ABB 1SDA065781R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA065781R1
Quick Summary
ABB 1SDA065781R1 Moulded Case Circuit Breaker protects industrial power distributions in manufacturing environments. Engineers often struggle to balance high fault clearance with downtime, regulatory compliance, and panel space constraints. Featuring front-terminal fixed 3P construction, PR331/P LSIG release, and IEC/CE compliance, it delivers reliable protection for up to 2500 A. This combination reduces install time, improves safety, and simplifies sourcing through a single, standards-aligned solution for switchgear assemblies. Its RoHS, REACH, CMRT and TSCA declarations support global procurement without additional certifications. Leverage this device to streamline maintenance planning and extend asset life in energy-intensive industries.
Product Information
Extended Description
1SDA065781R1 ABB: C.BREAKER TMAX T8V 2500 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR331/P-LSIG R 2500
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T8 | Breakers - Packaging disposal information
Order Code US and Canada
T8VFE3HE000000XX
EAN
8015644686925
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
427 mm
Product Net Height
382 mm
Product Net Depth / Length
282 mm
Product Net Weight
9.7 kg
Package Level 1 Units
1 piece
Package Level 1 Width
525 mm
Package Level 1 Height
475 mm
Package Level 1 Depth / Length
695 mm
Package Level 1 Gross Weight
11.2 kg
Package Level 1 EAN
8015644686925
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
4000 cycle | 20 cycles per hour
Mechanical Durability
15000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 73 W
Rated Current (In)
2500 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (380 V AC) 100 kA | (400 V AC) 100 kA | (415 V AC) 100 kA | (440 V AC) 100 kA | (500 V AC) 75 kA | (690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 1.3 kA | (230 V AC) 1.3 kA | (380 V AC) 130 kA | (400 V AC) 130 kA | (415 V AC) 130 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
2500 A
Release
PR331/P LSIG
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T8
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T8
Wiring Diagram
Wiring diagram T8
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: 2500 A rating with fixed three-pole front-terminal design. Business Impact: Enables compact wiring and faster panel assembly while minimizing installation errors. Application: Ideal for high-current main distribution panels and motor-control centers where space is at a premium. Feature: PR331/P LSIG solid-state release ensures reliable and fast tripping with low nuisance trips. Business Impact: Improves fault clearance accuracy and coordination with other protective devices. Application: Suitable for transformer protection schemes and critical process lines. Feature: Electrical durability of 4000 cycles and mechanical durability of 15000 cycles. Business Impact: Extends service life and reduces maintenance costs under frequent switching. Application: Harsh industrial cycles in packaging, metals, and chemical processing. Feature: High-level electrical specs including 690 V AC operating voltage, 1000 V insulation voltage, and 8 kV impulse withstand. Business Impact: Supports safe operation in demanding electrical environments and long-term reliability. Application: Main switchgear and control panels in factories with elevated transient requirements. Feature: Clear compliance and declarations—CE, RoHS, REACH, CMRT, TSCA—and EPD references. Business Impact: Simplifies global procurement and regulatory reporting. Application: Global supply chains needing cross-border certifications. Feature: Front-terminal design with defined dimensions (427 mm width, 382 mm height, 282 mm depth) and 9.7 kg weight. Business Impact: Eases mounting planning, rack integration, and panel space budgeting. Application: Retrofit projects and new installations in existing metal enclosures.
Get a Quick Quote for a ABB 1SDA065781R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA065781R1?
Enquire Now
FAQs
The unit uses fixed front terminals and a 3-pole configuration, enabling straightforward retrofits or new builds. Its compact width of 427 mm and mounting compatibility with standard panels simplify alignment with existing busbars and wiring trays while preserving clear access for testing and maintenance.
It delivers a 2500 A rated current, 690 V AC operating voltage, and 1000 V insulation voltage. An 8 kV rated impulse withstand and up to 100 kA short-circuit breaking capacity ensure protection for high-energy circuits. The device also supports a 40 A 1 s Icw rating and a 3P configuration with LSIG release.
The breaker is CE compliant and supports RoHS and REACH declarations, CMRT, and TSCA documentation. It aligns with IEC standards and carries product-specific declarations such as environmental and packaging information, enabling compliant procurement across multiple regions.
Front-terminal access reduces wiring complexity and enables faster, safer assembly and testing. It supports tidy panel layouts, minimizes dead-end wiring, and improves serviceability by allowing easier removal and replacement without removing the device from the enclosure.
Electrical durability is rated at 4000 cycles and mechanical durability at 15000 cycles, which translates to longer intervals between maintenance shutdowns and lower lifecycle costs. This makes it well-suited for high-usage environments like continuous manufacturing lines.
