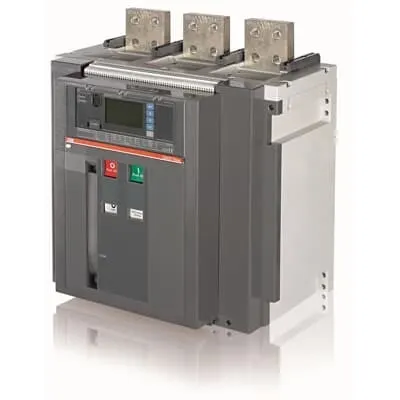

ABB 1SDA065795R1 Moulded Case Circuit Breaker - 8 kV
Part Number: 1SDA065795R1
Quick Summary
ABB 1SDA065795R1 moulded case circuit breaker provides reliable overcurrent protection for high-current power distribution in industrial facilities. Engineers often struggle with protecting critical loads while meeting space, installation time, and maintenance constraints. This device carries CE conformity, RoHS and REACH declarations, and IEC-based standards, enabling compliant installation across global sites. Designed for rugged, high-current environments, it integrates with ABB EcoSolutions, offering predictable maintenance, streamlined installation, and long-term cost efficiency for panel builders, OEMs, and maintenance teams alike.
Product Information
Extended Description
1SDA065795R1 ABB: C.BREAKER TMAX T8V 3200 FIXED THREE-POLE WITH TERMINALS REAR VERTICAL AND SOLID-STATE RELEASE IN AC PR332/P-LSIG R 3200
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T8 | Breakers - Packaging disposal information
Order Code US and Canada
T8VFF3JS000000XX
EAN
8015644687069
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
427 mm
Product Net Height
382 mm
Product Net Depth / Length
282 mm
Product Net Weight
11.7 kg
Package Level 1 Units
1 piece
Package Level 1 Width
525 mm
Package Level 1 Height
665 mm
Package Level 1 Depth / Length
695 mm
Package Level 1 Gross Weight
13.2 kg
Package Level 1 EAN
8015644687069
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
3000 cycle | 20 cycles per hour
Mechanical Durability
15000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 117 W
Rated Current (In)
3200 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (380 V AC) 100 kA | (400 V AC) 100 kA | (415 V AC) 100 kA | (440 V AC) 100 kA | (500 V AC) 75 kA | (690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 1.3 kA | (230 V AC) 1.3 kA | (380 V AC) 130 kA | (400 V AC) 130 kA | (415 V AC) 130 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
3200 A
Release
PR332/P LSIG
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T8
Terminal Connection Type
Fixed Circuit-Breakers | Rear flat Vertical
Data Sheet, Technical Information
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T8
Wiring Diagram
Wiring diagram T8
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
High-current capability and robust build enable a 3200 A rated current in a 3P configuration with 690 V AC operating voltage, reducing the risk of nuisance trips and protecting expensive equipment during peak demand. This translates to improved uptime, fewer unplanned outages, and lower maintenance costs for manufacturing lines and data centers. The PR332/P LSIG release provides precise tripping coordination, enhancing system selectivity and simplifying protection scheme tuning in complex distribution assemblies. Narrow terminal design and rear vertical connection simplify mounting in compact switchgear and retrofit projects, delivering faster commissioning and fewer field wiring errors. The device complies with RoHS and REACH, CMRT, and TSCA declarations, ensuring supply chain transparency and regulatory confidence across global sites. With 3P protection, engineers gain a scalable solution for transformers, main feeders, and motor control centers, supporting long-term expansion without replacing protection hardware.
Get a Quick Quote for a ABB 1SDA065795R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA065795R1?
Enquire Now
FAQs
Installers should mount the 3P unit into preferred switchgear using the rear fixed vertical terminals. Ensure alignment with the panel busbar and tighten all fixation screws to the recommended torque. Verify that wiring follows the device’s rating and that the protection release PR332/P LSIG is correctly seated to enable accurate tripping. Confirm clearance for ventilation and perform a post-install continuity check.
Key performance specs at 690 V AC include a rated current of 3200 A, rated impulse withstand voltage of 8 kV, and rated insulation voltage of 1000 V. Short-circuit capabilities are up to 100 kA Ics and up to 130 kA Icu depending on voltage level. Electrical durability is rated at 3000 cycles and mechanical durability at 15000 cycles, supporting demanding industrial cycles.
Yes. The 3P Tmax T8 release with LSIG provides selective protection for high-current feeders, transformers, and main distribution panels. With rear-terminal mounting and high Ics/Icu ratings, it supports reliable transformer protection under heavy transient conditions common in data centers and manufacturing facilities, while meeting IEC-based standards and ABB’s EcoSolutions environment.
The device includes a CE declaration of conformity, RoHS and REACH declarations, CMRT for conflict minerals, and TSCA declarations. It adheres to IEC standards and ABB’s environmental and product declarations, supporting regulatory compliance across global operations and supplier audits.
The combination of 3200 A capacity, high short-circuit withstand ratings, and long mechanical/electrical durability reduces nuisance trips and maintenance interventions. Reliable trip performance and predictable lifecycle help lower total cost of ownership, improve uptime for critical loads, and simplify firmware or release coordination in large-scale switchgear projects.
