ABB 1SDA065797R1 Moulded Case Circuit Breaker - PR331/P LSIG
Part Number: 1SDA065797R1
Quick Summary
ABB 1SDA065797R1 Moulded Case Circuit Breaker is designed to protect high‑current electrical networks in demanding industrial environments. This solution helps engineers minimize downtime by delivering reliable, precise fault interruption in large distribution panels. The device carries CE conformity with the EC Declaration of Conformity, RoHS and REACH compliance, and supports TSCA and CMRT reporting for global supply chains. It aligns with IEC standards for Tmax T protection while offering a compact 4P package. By combining 3200 A rated current with robust mechanical durability, operators gain uptime and safer operation, while procurement benefits from standardized mounting and predictable field replacement intervals. In short, it merges safety, performance, and total cost of ownership for modern power distribution.
Product Information
Extended Description

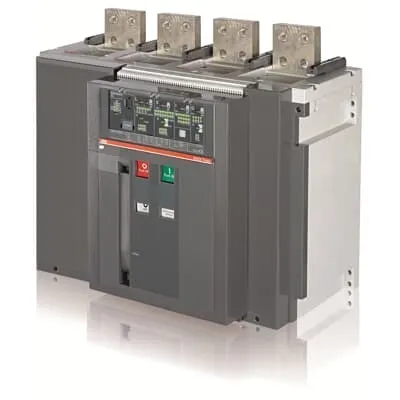

1SDA065797R1 ABB: C.BREAKER TMAX T8V 3200 FIXED FOUR-POLE WITH TERMINALS REAR VERTICAL AND SOLID-STATE RELEASE IN AC PR331/P-LSIG R 3200
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T8 | Breakers - Packaging disposal information
Order Code US and Canada
T8VFF4JE000000XX
EAN
8015644687083
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
553 mm
Product Net Height
382 mm
Product Net Depth / Length
282 mm
Product Net Weight
15 kg
Package Level 1 Units
1 piece
Package Level 1 Width
650 mm
Package Level 1 Height
665 mm
Package Level 1 Depth / Length
695 mm
Package Level 1 Gross Weight
16.5 kg
Package Level 1 EAN
8015644687083
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
3000 cycle | 20 cycles per hour
Mechanical Durability
15000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 117 W
Rated Current (In)
3200 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (380 V AC) 100 kA | (400 V AC) 100 kA | (415 V AC) 100 kA | (440 V AC) 100 kA | (500 V AC) 75 kA | (690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 1.3 kA | (230 V AC) 1.3 kA | (380 V AC) 130 kA | (400 V AC) 130 kA | (415 V AC) 130 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
3200 A
Release
PR331/P LSIG
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T8
Terminal Connection Type
Fixed Circuit-Breakers | Rear flat Vertical
Data Sheet, Technical Information
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T8
Wiring Diagram
Wiring diagram T8
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4934 >> 4 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Four‑pole design with fixed rear vertical terminals simplifies wiring and supports rapid field installation. Business Impact: Reduces commissioning time and minimizes wiring errors, boosting overall panel productivity in transformer protection and motor control centers. Application: Ideal for high‑current MCCs and switchgear in heavy industry. Feature: PR331/P LSIG electronic release provides precise tripping logic. Business Impact: Improves selective protection and fault isolation, decreasing downtime and potential collateral damage. Application: Used in distribution boards and critical power paths. Feature: 690 V AC rated operational voltage and 1000 V Ui with 8 kV Uimp rating. Business Impact: Enhances safety margins and withstands electrical transients, ensuring reliability in harsh environments. Application: Suitable for utility feeders and transformer protection. Feature: High endurance durability—Electrical 3000 cycles, Mechanical 15000 cycles, and low power loss of 117 W per pole. Business Impact: Extends service life, reduces energy waste, and lowers total cost of ownership. Application: Long‑term installations with frequent switching. Feature: High fault‑current capabilities—Ics up to 100 kA and Icu up to 130 kA depending on voltage. Business Impact: Supports robust protection in networks with large inrush and fault currents; minimizes system risk. Application: Critical protection in data centers and industrial plants. Feature: RoHS/REACH/CMRT compliance and IEC standards alignment. Business Impact: Eases regulatory reporting, sustainability goals, and global procurement. Application: Global supply chains and compliance‑driven projects.
Get a Quick Quote for a ABB 1SDA065797R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA065797R1?
Enquire Now
FAQs
Yes. The 1SDA065797R1 is a 4P molded case breaker rated for 690 V AC with fixed rear vertical terminals, making it suitable for traditional wall or panel mounting in 690 V switchgear and transformer protection schemes. Ensure correct wiring and clearances per IEC guidelines and ABB installation diagrams.
Icu values reach up to 130 kA at 380–440 V and up to 80 kA at 690 V, while Ics is rated at 100 kA for 220–440 V and 60–75 kA at higher voltages depending on the exact supply. These ratings support robust fault protection for large loads and transformers.
Industries leveraging high‑current distribution, transformer protection, and data center infrastructure benefit most. This 4P Tmax T breaker supports large MCCs, switchgear assemblies, and heavy‑duty motor feeders, delivering reliable protection in demanding environments with IEC compliance and RoHS/REACH conformity.
The device adheres to IEC standards, with CE conformity (EC Declaration of Conformity). It also carries RoHS and REACH declarations for hazardous substances, TSCA compliance, and CMRT reporting for responsible sourcing across global supply chains.
Durability figures reach 3000 electrical cycles and 15000 mechanical cycles, with 117 W power loss per pole, reducing maintenance intervals and energy waste. Combined with reliable tripping performance and standardized mounting, this delivers lower total cost of ownership and improved plant uptime.
