ABB 1SDA066401R1 Accessory - UVR XT 480-525 Vac, IEC60947-2
Part Number: 1SDA066401R1
Quick Summary

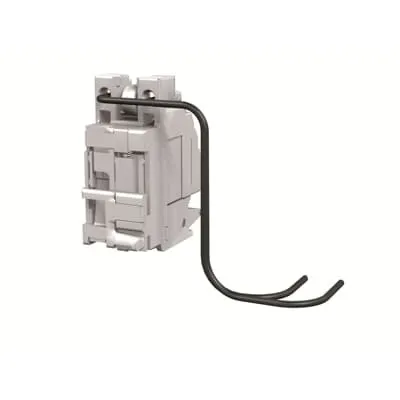

ABB 1SDA066401R1 Accessory provides a UVR-C undervoltage release for Tmax XT circuit-breakers XT1 through XT4 operating at 480–525 VAC. This accessory helps ensure safe, selective tripping and reduces nuisance trips in demanding industrial environments. The design aligns with key standards and declarations to support global deployment, including IEC60947-2 and UL489, plus CE, RoHS, and REACH compliance. ABB’s packaging and documentation also emphasize environmental responsibility with EPD labeling and CMRT data. For procurement teams, the compact 0.12 kg unit offers easy field replacement and minimal panel footprint, while maintaining robust performance in automation and process control applications.
Product Information
Extended Description
1SDA066401R1 ABB: UVR-C XT1..XT4 F/P 480-525 Vac
Environmental Product Declaration - EPD
EPD Undervoltage releases Tmax XT XT1...XT4 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXTAUVRCFP7
E-Number (Norway)
4384944
EAN
8015644003111
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.12 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
110 mm
Package Level 1 Height
60 mm
Package Level 1 Depth / Length
140 mm
Package Level 1 Gross Weight
0.14 kg
Package Level 1 EAN
8015644003111
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT1, XT2, XT3, XT4
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Current Type
AC
Order Multiple
1 piece
Rated Voltage (Ur)
480 ... 525 V AC
Standards
IEC60947-2 | UL489
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
UVR - Wired and non-wired undervoltage release for XT1-XT2-XT3-XT4 fixed/plug-in circuit-breakers
ETIM 8
EC001022 - Under voltage coil
ETIM 9
EC001022 - Under voltage coil
IDEA Granular Category Code (IGCC)
4148 >> Under voltage coil
Object Classification Code
Q
UNSPSC
39121010
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370417
Feature → Business Impact → Application: The UVR-C undervoltage release for Tmax XT XT1–XT4 ensures reliable protection coordination in 480–525 VAC control panels, reducing downtime and enhancing safety. This translates to measurable uptime gains in manufacturing lines and improved machine safety ratings in steel, pharma, and packaging facilities. Feature → Application: Loose or configurable configuration allows flexible installation—either wired or non-wired—cutting commissioning time and minimizing wiring errors in space-constrained panels. Feature → Compliance → Application: IEC60947-2 and UL489 certification support regulatory approval in EU and US markets, enabling faster time-to-market for automation projects and helping meet procurement governance requirements. Feature → Material Compliance → Application: RoHS, REACH, CMRT, and TSCA declarations ensure supply chain transparency and risk mitigation for global OEMs and panel builders dealing with restricted substances. Feature → Compatibility & Logistics → Application: Suitable for XT1–XT4 and SACE Tmax XT class, with 1-piece minimum order and lightweight packaging, enabling efficient kitting and lower logistics costs in large-scale projects.
Get a Quick Quote for a ABB 1SDA066401R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA066401R1?
Enquire Now
FAQs
The UVR-C accessory supports loose or configurable configuration and can be wired or non-wired. This flexibility reduces wiring errors and simplifies retrofit or new panel installations, fitting neatly into XT control schemes.
Yes. It is designed as an accessory for Tmax XT family XT1, XT2, XT3, and XT4, operating at 480–525 VAC to provide undervoltage release protection within the XT protection scheme.
The product adheres to IEC60947-2 and UL489 standards, with CE declarations and RoHS/REACH compliance. It also provides CMRT and TSCA information for export and supply-chain transparency.
The accessory reduces nuisance trips and improves safety in automation lines, while its modular installation supports quick commissioning and reliable performance in high-uptime environments like packaging, water treatment, and process automation.
Minimum order quantity is 1 piece; product net weight is 0.12 kg with packaging 0.14 kg. EAN is 8015644003111, and package dimensions are 110 x 60 x 140 mm, aiding efficient kitting and shipping.
