ABB 1SDA066692R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA066692R1
Quick Summary
ABB 1SDA066692R1 Moulded Case Circuit Breaker protects low-voltage distribution panels in industrial automation systems. In dense switchgear, mis-tripping and hard-to-reach front-terminals can slow commissioning and maintenance. This device includes CE conformity, IEC standards alignment, and RoHS/REACH declarations, with CMRT and TSCA documentation where applicable to support global sourcing. Designed for reliable front-terminal installation and TMF release, it delivers predictable protection while reducing downtime and simplifying regulatory reporting in power distribution and transformer-protection applications.
Product Information
Extended Description

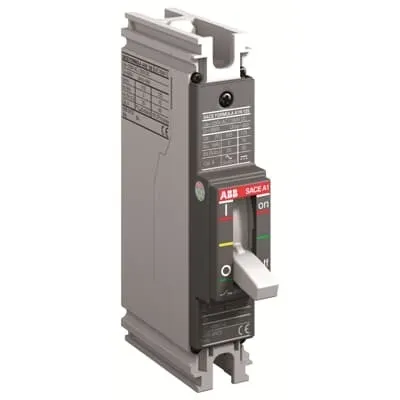

1SDA066692R1 ABB: C.BREAKER FORMULA A1N 125 FIXED SINGLE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 70-700 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
AAN070TW-1
EAN
8015644693930
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
25.4 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.25 kg
Package Level 1 Units
1 piece
Package Level 1 Width
143 mm
Package Level 1 Height
74 mm
Package Level 1 Depth / Length
93 mm
Package Level 1 Gross Weight
0.3 kg
Package Level 1 EAN
8015644693930
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
1500 cycle
Mechanical Durability
Nr. Operations 8500 cycle
Number of Poles
1P
Opening Time
CB with SOR 15 ms | CB with UVR 15 ms
Power Loss
at Rated Operating Conditions per Pole 8 W
Rated Current (In)
Main Circuit 70 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
415 V AC | 125 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 12.5 kA | (380 V AC) 2.5 kA | (415 V AC) 1.25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 25 kA | (380 V AC) 5 kA | (415 V AC) 5 kA | (125 V DC) 10 kA
Rated Uninterrupted Current (Iu)
125 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
IEC
Sub-type
A1
Terminal Connection Type
Front
Data Sheet, Technical Information
1SDC210032D0204
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Wiring Diagram
Wiring diagram FORMULA A1-A2
Instructions and Manuals
Installation Instructions Formula A1/I-II
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: Front-terminal connection enables faster wiring and safer servicing, reducing panel assembly time and field maintenance costs while improving accessibility in confined enclosures; ideal for compact power distribution rails and retrofit projects. Feature → Business Impact → Application: TMF release provides reliable thermal-magnetic protection, lowering nuisance trips during motor startups and fault conditions, which translates to fewer production stops in manufacturing lines and safer fault isolation in controls cabinets. Feature → Business Impact → Application: 1P, 70 A rating with 415 VAC / 125 V DC and Ui of 690 V supports single-channel protection for feeders feeding transformers and motors, simplifying panel zoning and compliance in industrial plants. Feature → Business Impact → Application: High Ics and Icu ratings (12.5 kA/25 kA at relevant voltages) deliver robust short-circuit protection, enabling transformers and feeders to withstand faults without cascading failures in substation-adjacent equipment. Feature → Business Impact → Application: RoHS/REACH, CE declarations, and wiring diagrams streamline procurement and installation while meeting global environmental and safety standards, supporting international projects and reducing regulatory risk. Feature → Business Impact → Application: Compact footprint (25.4 mm width; 130 mm height) and lightweight design reduce panel depth and shipping costs, enabling easier integration into modern control panels and modular switchgear for OEMs and integrators.
