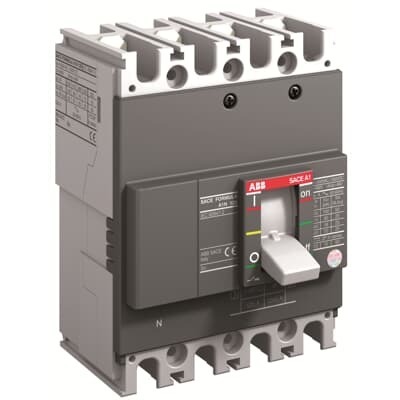

ABB 1SDA066766R1 Moulded Case Circuit Breaker - TMF 4P
Part Number: 1SDA066766R1
Quick Summary
ABB 1SDA066766R1 Moulded Case Circuit Breaker is designed to protect four-pole power circuits in industrial switchgear. The challenge of reliable protection under varying loads and cramped panel spaces can complicate maintenance and increase downtime. This device aligns with IEC standards, CE conformity, and RoHS compliance, while CMRT and TSCA declarations support global procurement. With front-terminal access and a TMF release, it enables faster installation, safer wiring, and easier field testing. Choosing ABB 1SDA066766R1 translates to proven performance, compatibility with ABB SACE formula, and reduced total cost of ownership.
Product Information
Extended Description
1SDA066766R1 ABB: C.BREAKER FORMULA A1N 125 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 90-900 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
AAN090TW-4
EAN
8015644006761
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
101.6 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
1 kg
Package Level 1 Units
1 piece
Package Level 1 Width
136.5 mm
Package Level 1 Height
124 mm
Package Level 1 Depth / Length
110.5 mm
Package Level 1 Gross Weight
1.05 kg
Package Level 1 EAN
8015644006761
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Electrical Durability
1500 cycle
Mechanical Durability
Nr. Operations 8500 cycle
Number of Poles
4P
Opening Time
CB with SOR 15 ms | CB with UVR 15 ms
Power Loss
at Rated Operating Conditions per Pole 7 W
Rated Current (In)
Main Circuit 90 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
550 V AC | 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 50 kA | (380 V AC) 18 kA | (415 V AC) 7.5 kA | (440 V AC) 6.25 kA | (480 V AC) 4.5 kA | (500 V AC) 2.5 kA | (250 V DC) 2 Poles in Series 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 100 kA | (380 V AC) 36 kA | (415 V AC) 36 kA | (440 V AC) 25 kA | (480 V AC) 18 kA | (500 V AC) 10 kA | (250 V DC) 10 kA
Rated Uninterrupted Current (Iu)
125 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
IEC
Sub-type
A1
Terminal Connection Type
Front
Data Sheet, Technical Information
1SDC210032D0204
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Wiring Diagram
Wiring diagram FORMULA A1-A2
Instructions and Manuals
Installation Instructions Formula A1/III-IV
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → The four-pole TMF-release design with front-terminal access delivers robust main-circuit protection in a compact moulded-case package. Business Impact → It simplifies wiring, testing, and maintenance, reducing downtime and installation time. Application → Ideal for control panels, switchgear, and distribution boards where quick access and reliable protection are essential. Feature → Rated current of 90 A and rated insulation voltage of 690 V, with a high short-circuit withstand profile. Business Impact → Ensures safe interruption across common industrial voltages, supporting uptime in critical processes. Application → Suitable for medium to high-load main circuits in manufacturing lines and energy distribution cabinets. Feature → Mechanical durability of 8500 cycles and electrical durability of 1500 cycles, plus a 7 W per-pole power loss at rated conditions. Business Impact → Extends service life, reduces maintenance intervals, and improves energy efficiency at scale. Application → Fits recurring switching duty in motors, transformers, and protection panels. Feature → Comprehensive compliance and documentation package including CE Declaration of Conformity, RoHS, CMRT, TSCA, and IEC standards. Business Impact → Streamlines procurement, audit readiness, and regulatory approvals across multiple regions. Application → Accelerates global deployment in aerospace, process, and general industries. Feature → Front-terminal connection, compact dimensions (101.6 mm width, 130 mm height, 60 mm depth) and 1 kg weight. Business Impact → Enables denser panel layouts and easier retrofit in space-constrained installations. Application → Ideal for modern control cabinets and retrofit projects where footprint matters.
Get a Quick Quote for a ABB 1SDA066766R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA066766R1?
Enquire Now
FAQs
To install, verify the panel cutout matches the product net width of 101.6 mm, height of 130 mm, and depth of 60 mm. Use the front-terminal terminals for wiring, torque to the manufacturer's specifications, and ensure the device is mounted in the correct orientation. Confirm TMF release operation and test under no-load conditions before commissioning.
Key ratings include 90 A rated current, 690 V rated insulation voltage, 550 V AC / 250 V DC rated operational voltage, and a 6 kV rated impulse withstand voltage. Ics values depend on voltage tier (up to 50 kA at 240 V AC, 18 kA at 380 V AC, down to 2.5–5 kA at higher DC/AC variants).
Yes. The 4P moulded case design with TMF release, high Ics/Icu ratings, and front-terminal access make it suitable for transformer protection and generator accessory panels. Ensure the specific voltage and current levels match your transformer or generator protection scheme, and reference the wiring diagram FORMULA A1-A2 for correct wiring practices.
The device carries IEC standards, CE conformity, RoHS compliance, and CMRT/TSCA declarations. This simplifies cross-border procurement, supports regulatory audits, and reduces compliance risk in global supply chains. Documentation like the EAN, order code AAN090TW-4, and DoC streamline purchasing, stocking, and asset tagging in engineering and procurement systems.
Expect reduced downtime due to front-terminal wiring and a TMF release that provides reliable tripping under fault conditions. Mechanical durability (8500 cycles) and electrical durability (1500 cycles) support longer service intervals, lowering maintenance frequency. The compact footprint and high current-capacity enable denser panel designs, improving space utilization and overall return on investment.
