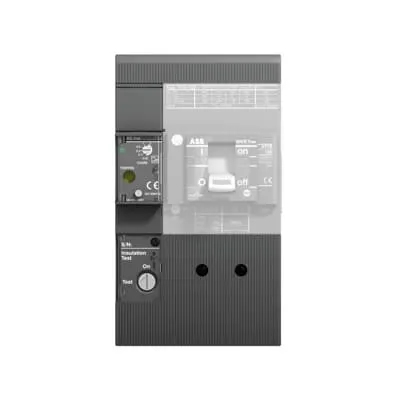

ABB 1SDA067124R1 Accessory - 4P RC Inst HV XT1
Part Number: 1SDA067124R1
Quick Summary
ABB 1SDA067124R1 Accessory provides reliable residual-current release for Tmax XT switchgear in industrial power distribution. This XT1-compatible, 4-pole accessory addresses common installation and tripping challenges in evolving plants, helping maintain uptime and safety across critical power paths. It aligns with key standards such as IEC60947-2, CE declarations, and RoHS compliance, while also supporting TSCA documentation for broader global deployment. By integrating seamlessly with Tmax XT assemblies, it reduces commissioning time and simplifies spare-parts management. For procurement teams and maintenance engineers, this accessory delivers consistent performance, predictable replacement cycles, and a clear path to compliant, future-proof switchgear configurations.
Product Information
Extended Description
1SDA067124R1 ABB: RC Inst HV 85...690Vac XT1 4p F
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT1ERCINST-4
E-Number (Norway)
4384966
EAN
8015644010317
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1.236 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
210 mm
Package Level 1 Height
170 mm
Package Level 1 Depth / Length
240 mm
Package Level 1 Gross Weight
1.301 kg
Package Level 1 EAN
8015644010317
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT1
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Number of Poles
4P
Order Multiple
1 piece
Standards
IEC60947-2
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
RC Inst - RC Sel - Residual-current release for XT1-XT3
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
4878 >> Residual current release for power circuit breaker
Object Classification Code
Q
UNSPSC
39121601
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature: 4-pole configuration and XT1 compatibility. Business Impact: Enables robust protection for multi-pole circuits and simplifies retrofits in Tmax XT installations. Application: Suitable for four-pole residual-current releases in industrial power panels. Long-tail keywords used: Tmax XT accessories, 4P RC release, XT1 compatibility. Feature: IEC60947-2 conformity. Business Impact: Ensures regulatory compliance and smoother approvals in panel builds. Application: Ideal for OEMs designing control rooms and manufacturing lines. Feature: Material compliance (REACH, RoHS). Business Impact: Reduces regulatory risk and supply chain delays in global projects. Application: Global deployment across EU and non-EU facilities. Feature: Environmental & packaging information. Business Impact: Supports sustainable disposal practices and improved warehouse handling. Application: Lifecycle management for breakers and spare parts. Feature: Ordering and packaging specifics. Business Impact: Facilitates purchasing with clear MOQs and packaging data, minimizing stocking overhead. Application: Efficient procurement for maintenance teams in large sites. Feature: Documentation and data availability (Data Sheets, DoC). Business Impact: Accelerates technical due diligence and commissioning. Application: Reference for installation manuals and compliance records.
Get a Quick Quote for a ABB 1SDA067124R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA067124R1?
Enquire Now
FAQs
The 1SDA067124R1 is designed for Tmax XT family with 4P RC Inst HV. It supports loose or configurable installation and is compatible with XT1 configurations. Follow the XT1 installation manual (1SDC210100D0205 / 1SDC210099D0205) and IEC60947-2 wiring practices to ensure proper tripping function and safe clearance. Ensure correct pole alignment and secure mounting to minimize nuisance trips caused by improper seating.
This accessory operates across 85-690Vac, 4 poles (4P), conforming to IEC60947-2. It carries CE declarations and RoHS compliance under EU directives (2011/65/EU and 2015/863). Documentation also references TSCA and REACH declarations for environmental and regulatory compliance.
Yes. The 1SDA067124R1 is engineered for Tmax XT heavy-duty applications, providing reliable residual-current release in high-performance power distribution environments. Its XT1 compatibility and 4P configuration make it well-suited for demanding control rooms and production lines where uptime and safety are critical.
The product includes IEC60947-2 compliance, CE Declaration of Conformity, RoHS compliance per EU directives, and supporting CMRT/TSCA documentation. These certifications support global deployment and regulatory alignment across supply chains and end-user facilities.
The accessory reduces nuisance trips and streamlines maintenance by providing a dependable residual-current release for Tmax XT panels. It simplifies spare-parts management, shortens commissioning time, and improves overall system reliability, contributing to lower downtime and a favorable total cost of ownership.
