ABB 1SDA067277R1 Accessory - IEC60947-2
Part Number: 1SDA067277R1
Quick Summary
ABB 1SDA067277R1 accessory enables shunt release integration for Tmax XT power circuits. This solution addresses field-installation complexity and miswiring risks by providing a purpose-built interface that simplifies mounting and wiring during panel assembly. It adheres to key standards and declarations to support global compliance, including IEC60947-2, RoHS, and REACH, with TSCA documentation available where required. For engineers and procurement teams, the accessory delivers predictable interoperability with XT2 configurations, while offering easy sourcing, reduced downtime, and lower lifecycle costs through standardized components and clear documentation. By aligning with XT2, generator protection workflows, and ABB Sace practices, it supports robust, compliant, and cost-efficient installations.
Product Information
Extended Description

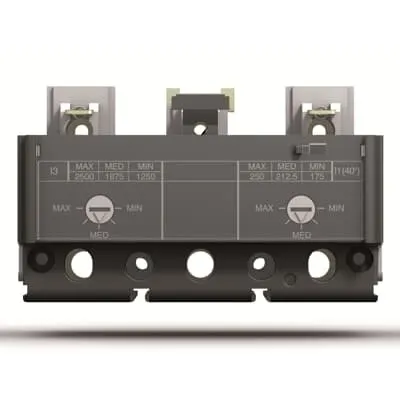

1SDA067277R1 ABB: SG.TMG 63-230 XT2 4p
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8015644011802
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
0 mm
Package Level 1 Height
0 mm
Package Level 1 Depth / Length
0 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8015644011802
Circuit Breaker Type to be Associated
Generator Protection
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT2
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
4P
Rated Current (In)
63 A
Release
TMG
Release Type
TM
Standards
IEC60947-2
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT2-XT4
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Loose or configurable configuration enables flexible integration with Tmax XT installations. Business Impact: Reduces field rework and accelerates commissioning by matching wiring schemes to project needs. Application: Suitable for XT2 generator protection scenarios where configurable shunt-release timing improves system coordination. Feature: 4P AC/DC current handling with 63 A rating ensures reliable actuation across multiple phases. Business Impact: Enhances protection reliability and reduces nuisance trips, supporting safer plant operation. Application: Generator protection modules within Tmax XT assemblies requiring solid, multi-pole control. Feature: IEC60947-2 standard conformity with RoHS and REACH declarations. Business Impact: Simplifies regulatory filings, extends component life in harsh environments, and minimizes compliance risks. Application: Global installations requiring traceable declarations for SACE Tmax XT accessories. Feature: Comprehensive documentation and data references (1SDC210100D0205 | 1SDC210099D0205; EAN 8015644011802). Business Impact: Streamlines procurement and asset management with clear part numbers, packaging data, and datasheets. Application: Engineering catalogs, RFQ responses, and BOMs for XT1/XT2 projects. Feature: Generator protection focus with correct circuit-breaker association. Business Impact: Improves trip coordination and protection reliability, reducing downstream faults and downtime. Application: Critical power or standby-generation circuits in industrial facilities.
Get a Quick Quote for a ABB 1SDA067277R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA067277R1?
Enquire Now
FAQs
The ABB 1SDA067277R1 accessory is designed for Tmax XT installations with XT2 compatibility in mind. It supports 4P configurations and a loose or configurable setup, allowing a straightforward addition to Tmax XT circuit breakers while maintaining proper generator protection workflows. Ensure the accessory is paired with the XT family per the datasheet 1SDC210100D0205.
Key specifications include 4P configuration, AC/DC current type, and a rated current of 63 A. It conforms to IEC 60947-2 and carries RoHS and REACH declarations, with CMRT and TSCA supporting global compliance. These attributes support reliable protection coordination and regulatory clarity across markets.
Yes, it is specifically intended for generator protection scenarios within Tmax XT systems. The accessory is associated with the Generator Protection circuit-breaker type, facilitating proper shunt-release operation and ensuring correct sequencing in power-generation applications.
Procurement supports a minimum order quantity of 1 piece, with packaging at approximately 1.1 kg per package. The EAN is 8015644011802, and the customs tariff number is 85389099. This enables straightforward BOM planning and efficient logistics for domestic or international sourcing.
The accessory carries RoHS and REACH declarations, TSCA documentation, and CMRT for responsible sourcing. CE declarations are referenced via the related circuit-breaker documentation, with environmental and packaging guidance (Breakers – Packaging disposal information) available to support sustainability and regulatory audits.
