ABB 1SDA067283R1 Accessory - 4P TMG Release, XT2
Part Number: 1SDA067283R1
Quick Summary
ABB 1SDA067283R1 Accessory is a four-pole thermomagnetic release for Tmax XT protection applications. In demanding installations, unpredictable trips and compliance gaps can cost time and money; this device provides reliable, fully rated operation across AC/DC loads. It meets CE conformity, IEC 60947-2 standards, and RoHS requirements, with CMRT/TSCA declarations for global traceability. As an XT2 shunt release accessory, it enhances Tmax XT system reliability and simplifies installation, while delivering a compact, standards-aligned solution for panel builders and end users seeking robust, long-life protection.
Product Information
Extended Description

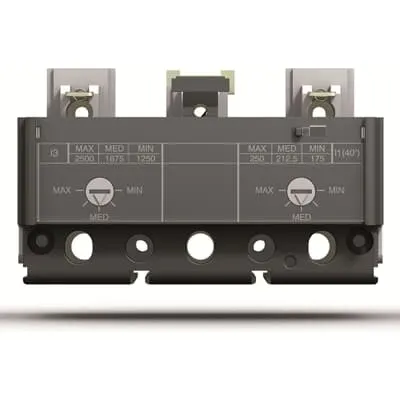

1SDA067283R1 ABB: THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMG R 160-480 A FULLY RATED NEUTRAL XT2
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
E-Number (Norway)
4379769
EAN
8015644011840
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
145 mm
Package Level 1 Height
75 mm
Package Level 1 Depth / Length
95 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8015644011840
Circuit Breaker Type to be Associated
Generator Protection
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT2
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
4P
Order Multiple
1 piece
Rated Current (In)
160 A
Release
TMG
Release Type
TM
Standards
IEC60947-2
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT2-XT4
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Four-pole AC/DC thermomagnetic release with 160 A nominal current and loose or configurable installation. Impact: Delivers precise protection with fast, fully rated operation, reducing nuisance trips and equipment wear. Application: Ideal for Tmax XT panels handling generator protection and mixed AC/DC loads in industrial environments. This construction supports predictable coordination with upstream breakers, improving system uptime and maintenance planning. Feature: XT2-compatible accessory that integrates with Tmax XT series. Impact: Simplifies retrofits and kit compatibility, lowering installation time and risk. Application: Useful in upgrade projects where existing XT components require seamless integration with the XT2 family. Feature: Compliance and declarations (IEC60947-2, RoHS, CMRT, TSCA). Impact: Eases regulatory approvals and supplier audits, shortening time-to-commission. Application: Meets global safety requirements for critical power circuits in manufacturing and infrastructure. Feature: Clear packaging and logistics data (1 piece MOQ, EAN 8015644011840, net weight 1 kg). Impact: Streamlines procurement, warehousing, and inventory management. Application: Supports just-in-time sourcing for panels and assemblies. Feature: Documentation and data references (Data Sheet 1SDC210100D0205). Impact: Provides rapid access to technical specifications for engineering validation. Application: Used by designers and technicians during spec reviews and installation planning.
