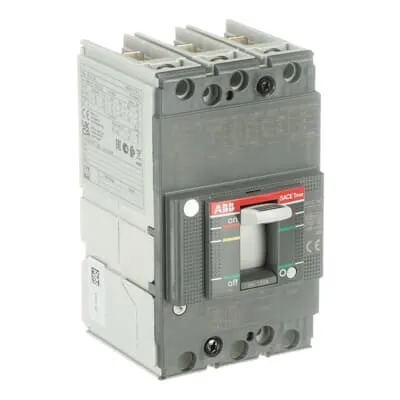

ABB 1SDA067398R1 MCCB XT1 - IEC60947-2 Tmax XT
Part Number: 1SDA067398R1
Quick Summary
Moulded Case Circuit Breaker MCCB ABB 1SDA067398R1 protects industrial power circuits in distribution panels. Engineers often struggle with tight spaces, front-terminal wiring, and the need for rapid, reliable fault interruption in demanding environments. The XT1 design complies with IEC 60947-2 and carries CE conformity along with GL and LR certifications, supporting global deployment. With a 125 A rated current and 690 V operating voltage, it delivers robust protection for transformers, generators, and other critical loads while helping you minimize unplanned downtime. The 3P fixed-front-terminal configuration and ABB EcoSolutions guidance simplify installation and lifecycle management, reducing total cost of ownership in your plant.
Product Information
Extended Description
1SDA067398R1 ABB: C.BREAKER TMAX XT1C 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT1
Environmental Product Declaration - EPD
EPD Tmax XT XT1 (IT) | EPD Tmax XT XT1 (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.9 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
04c3bfad-7e1c-429f-8614-00ca8b4c8246 Italy (IT)
Simplified SCIP
c980eb9d-c930-4207-be79-18998991e543 Germany (DE) | 05fb5747-1f6a-4fcb-9a95-e2bdce382aac Finland (FI) | c5611fb4-697a-488c-9338-65a1ac58eb95 Norway (NO) | 23235400-6bd4-4005-9580-19e41cbbc1c5 France (FR) | 0569b031-ea62-4cca-8a66-2a5b16c051db Netherlands (NL) | 76b8a86b-345a-4f87-8d62-e34024531bb1 Netherlands (NL) | 521705a5-2bef-44ad-81eb-960bc18a89de Germany (DE) | cbc69345-80fd-4f24-b3e6-425db0c63237 Denmark (DK) | b876a3e8-bbb3-4dbe-a7cf-512672b07ca8 Germany (DE) | 3cd9e697-fec2-4f2d-9681-47dc0ae309c0 Croatia (HR) | b904a269-358b-499d-a085-4d8b460a7633 Czech Republic (CZ) | 7b4a72b6-f994-4e65-9d03-242b5d5c3192 Netherlands (NL) | cf35da3b-5c64-4bcc-98b6-aff088652e20 Netherlands (NL) | 578f336c-409f-4c42-9b01-632b40455d3e Estonia (EE) | 2f9cdf36-8c74-4b82-94b4-4bc1f9ab598d Greece (GR) | 98cc3dce-cbf3-4df0-8442-37a76e349926 Portugal (PT) | ebc38d72-c2f5-4095-b7bb-79d6614fad1c Bulgaria (BG) | 7bf3683a-2ee1-4e65-846d-92e406efe465 Sweden (SE) | 752581a0-5f0e-44f0-9041-c39837a6d0ab Poland (PL) | 0d72cced-ae48-410b-a802-dc326cb682a0 France (FR) | 39135c8a-e65a-47ee-a08f-de1fcf1003dd Sweden (SE) | 3c430bd8-7130-472d-b527-4fec966dbf44 Germany (DE) | 55073784-ba76-4be2-b976-89ebdb00e7ec Germany (DE) | af5e7d2d-78a6-41ca-a1c5-789825f77f7b Spain (ES) | 01379f3e-f9b3-49cb-b5fe-a9fc100efbb2 Netherlands (NL) | ec955a84-1183-4e95-b1c4-26f4a66dd5a1 Poland (PL) | 9ba63e07-44d1-4f2f-b19d-610254983f6d Poland (PL)
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT1CE3125AFF000XXX
E-Number (Finland)
3638778
E-Number (Norway)
4309618
EAN
8015644012922
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
128 mm
Package Level 1 Height
135 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Gross Weight
1.137 kg
Package Level 1 EAN
8015644012922
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
CAD Dimensional Drawing
XT1 3p FIXED F
Connecting Capacity Main Circuit
Busbar 45.5 ... 80 mm²
Current Type
AC/DC
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 10.7 W
Rated Current (In)
125 A
Rated Frequency (f)
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
1250 A
Rated Insulation Voltage (Ui)
800 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 40 kA | (230 V AC) 40 kA | (240 V AC) 40 kA | (380 V AC) 25 kA | (415 V AC) 25 kA | (440 V AC) 12.5 kA | (500 V AC) 9 kA | (525 V AC) 8 kA | (690 V AC) 4 kA | (250 V DC) 2 Poles in Series 25 kA | (500 V DC) 3 Poles in Series 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 40 kA | (230 V AC) 40 kA | (240 V AC) 40 kA | (380 V AC) 25 kA | (415 V AC) 25 kA | (440 V AC) 25 kA | (500 V AC) 18 kA | (525 V AC) 8 kA | (690 V AC) 4 kA | (250 V DC) 2 Poles in Series 25 kA | (500 V DC) 3 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
690 V
Recommended Screw Driver
Main Circuit M6
Release
TMD
Release Type
TM
Setting Range
87.5...125 A
Short-Circuit Performance Level
C
Standards
IEC60947-2
Sub-type
XT1
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
ATEX Certificate
No certification needed
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT1
GL Certificate
1SDL000163R0103
LR Certificate
LRs certificate Tmax XT
UL Certificate
No certification needed
VDE Certificate
No certification needed
Dimension Diagram
XT1 3p-4p fixed front terminals
Mechanical Drawings
XT1 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT1
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Front-terminal, three-pole configuration simplifies wiring and reduces field errors. The bolt connection with a 6 N·m tightening torque provides secure terminations, enabling quick installation and dependable clamping on busbars up to 80 mm². This translates into faster panel assembly and lower rework rates in high-mix manufacturing environments. Rated current of 125 A and a rated operational voltage of 690 V AC (U r) deliver reliable protection across typical industrial distributions. The device offers a high breaking capacity, with Icu and Ics up to 40 kA, ensuring maintainable performance during short-circuit events and compliance with IEC 60947-2. Release is TMD with a fast opening time around 30 ms, and a user-adjustable setting range of 87.5 to 125 A. This combination reduces fault energy delivered to protected equipment, minimizing damage risk and downtime. ABB EcoSolutions supports responsible end-of-life handling, with disassembly instructions provided and recyclable design targeting EN45555 goals with 55.9% recyclability. IEC 60947-2 compliance ensures compatibility with standard industrial panels, and front-terminal connections align with typical busbar layouts (45.5–80 mm²), easing installation and maintenance in control rooms and process lines.
Get a Quick Quote for a ABB 1SDA067398R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA067398R1?
Enquire Now
FAQs
For front-terminal MCCB XT1, ensure adequate space and access in the panel. Connect busbars within the 45.5–80 mm² range, tighten terminals to 6 N·m, and follow the wiring diagram for IEC 60947-2 compliant installations. Keep front-access screws accessible for future maintenance and refer to the ABB disassembly instructions for life-cycle handling.
Key specs include a rated current of 125 A, rated voltage of 690 V, and AC/DC current type. It provides Icu and Ics up to 40 kA, ensuring strong fault interruption capability. The unit operates at 50/60 Hz and uses a front-terminal bolt connection, with a tightening torque of 6 N·m for secure terminations.
Yes. The XT1 3P MCCB is designed for transformer protection and broader power-distribution roles. Its 125 A rating, 690 V operating voltage, and 40 kA breaking capacity support transformer and generator protection in control panels, with IEC 60947-2 compliance and front-terminal wiring that simplifies installation in space-constrained environments.
The XT1 series carries CE conformity and a Declaration of Conformity. It also has GL and LR certifications, reflecting global suitability and quality assurance. Additional environmental and compliance data include RoHS/REACH declarations and end-of-life disassembly guidance, supporting sustainability and regulatory requirements across regions.
Lifecycle management is supported by ABB EcoSolutions, including disassembly instructions and recyclability guidance (55.9% recyclability). Regular inspection should verify front-terminal connections and torque, and end-of-life planning should follow the provided disassembly instructions to simplify recycling, minimize waste, and reduce total cost of ownership over the device’s life in industrial facilities.
