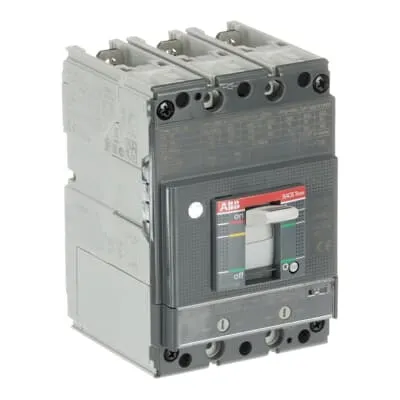

ABB 1SDA067646R1 XT2 3P MCB 690V - IEC60947-2
Part Number: 1SDA067646R1
Quick Summary
ABB 1SDA067646R1 XT2 3P Moulded Case Circuit Breaker is designed to protect industrial power distribution across panels and switchgear. Engineers often face challenges selecting devices that meet high fault currents, compact space, and fast disconnection requirements. This XT2 solution complies with IEC 60947-2 and carries CE conformity, with additional environmental declarations like the EPD and recyclability data to simplify regulators’ and customers’ review. In practice, it enables safer panel builds, easier lifecycle management, and reliable protection for 690 V systems, while remaining compatible with 32.5–100 mm² busbars and front-terminal installation for streamlined procurement and installation processes.
Product Information
Extended Description
1SDA067646R1 ABB: C.BREAKER TMAX XT2L 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 100 I3=500...1000 A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT2 TM (CN) | EPD Tmax XT XT2 TM (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.70 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT2LE3100BFF000XXX
E-Number (Norway)
4379320
EAN
8015644015428
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
90 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
131 mm
Package Level 1 Height
212 mm
Package Level 1 Depth / Length
147 mm
Package Level 1 Gross Weight
1.2 kg
Package Level 1 EAN
8015644015428
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
CAD Dimensional Drawing
XT2 3p FIXED F
Connecting Capacity Main Circuit
Busbar 32.5..100 mm²
Current Type
AC/DC
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 8.08 W
Rated Current (In)
100 A
Rated Frequency (f)
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
50…1000 A
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 150 kA | (230 V AC) 150 kA | (240 V AC) 150 kA | (380 V AC) 120 kA | (415 V AC) 120 kA | (440 V AC) 100 kA | (500 V AC) 60 kA | (525 V AC) 36 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 85 kA | (500 V DC) 3 Poles in Series 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 150 kA | (230 V AC) 150 kA | (240 V AC) 150 kA | (380 V AC) 120 kA | (415 V AC) 120 kA | (440 V AC) 100 kA | (500 V AC) 60 kA | (525 V AC) 36 kA | (690 V AC) 18 kA | (250 V DC) 2 Poles in Series 85 kA | (500 V DC) 3 Poles in Series 85 kA
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
690 V
Recommended Screw Driver
Main Circuit M6
Release
TMA
Release Type
TM
Setting Range
7...10 A
Short-Circuit Performance Level
L
Standards
IEC60947-2
Sub-type
XT2
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
ATEX Certificate
No certification needed
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
GL Certificate
1SDL000163R0093
LR Certificate
LRs certificate Tmax XT
UL Certificate
No certification needed
VDE Certificate
No certification needed
Dimension Diagram
XT2 3p-4p fixed front terminals
Mechanical Drawings
XT2 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation Instructions XT2
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: 3P XT2 fixed-front-terminal design. Business Impact: Reduces wiring time and improves safety during maintenance due to straightforward access. Application: Ideal for panel builders and switchgear assemblies where space and accessibility are critical. Feature: 100 A rated current and 7–10 A setting range with 150 kA Icu. Business Impact: Delivers precise coordination and strong fault current handling to minimize downtime and equipment damage. Application: Useful in distribution panels feeding transformers and motors in manufacturing lines. Feature: Release TMA with TM and precise setting range. Business Impact: Enables selective tripping and quick response to faults, reducing nuisance trips. Application: Protects feeders and critical loads in control cabinets. Feature: IEC 60947-2 compliance and CE declaration. Business Impact: Ensures regulatory alignment and faster project approvals. Application: Cross-border deployments in EU and global sites. Feature: Environmental and recyclability data with EPD and 55.70% recyclability per EN45555. Business Impact: Supports sustainability reporting and end-of-life planning. Application: Corporate ESG programs and responsible procurement. Feature: Front terminals, bolt connection, 6 N·m torque, and busbar 32.5–100 mm². Business Impact: Simplifies installation, reduces torque time, and ensures robust connections. Application: Field installations in power distribution and motor control centers.
Get a Quick Quote for a ABB 1SDA067646R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA067646R1?
Enquire Now
FAQs
For safe integration, use front terminals with a bolt connection and 6 N·m tightening torque, select a busbar size between 32.5 and 100 mm², and secure the unit in a suitable enclosure. The MCB uses a mains-compatible 690 V rating and requires a Main Circuit M6 screwdriver for proper fasteners. Confirm panel clearance and allow for adequate heat dissipation to maintain performance over the life of the device.
Key specs include a rated current of 100 A, a setting range of 7–10 A, a rated impulse withstand voltage of 8 kV, and a rated insulation voltage of 1000 V. The device offers a rated operational voltage of 690 V AC / 500 V DC, a short-circuit breaking capacity Icu up to 150 kA, and a 3P configuration with front-terminal bolt connections.
Yes. It complies with the IEC 60947-2 standard and carries CE conformity via the EC Declaration of Conformity for Tmax XT XT2. Additional environmental and sustainability data include an Environmental Product Declaration (EPD) and recyclability information per EN45555, supporting responsible procurement and lifecycle management.
It is well-suited for panel boards, switchgear, and transformer protection within industrial power distribution. Its 3P configuration, 690 V rating, and adjustable Iq settings enable selective protection for feeders and motors, reducing downtime and improving system reliability in manufacturing, process plants, and utility installations.
ABB EcoSolutions provides end-of-life disassembly instructions, an EPD, and recyclability data to simplify regulatory compliance and sustainability reporting. This can reduce lifecycle costs by enabling easier recycling, lowering disposal fees, and supporting long-term ROI through improved asset lifecycle planning and supply chain transparency.
