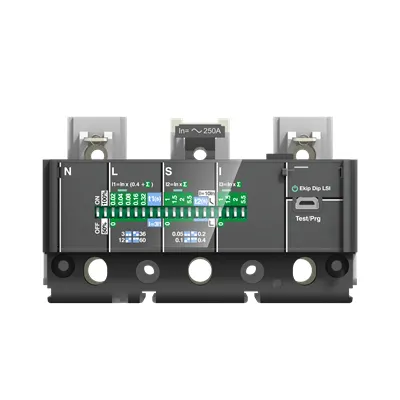

ABB 1SDA068037R1 Accessory - 3P 200A XT4 IEC standard
Part Number: 1SDA068037R1
Quick Summary
ABB 1SDA068037R1 is a solid-state shunt release for three-pole AC systems used with Tmax XT4 breakers. Engineers and procurement teams often struggle with integrating electronic releases into existing panels, risking mis-timing, improper wiring, and unnecessary downtime. This solution adheres to IEC standards, carries RoHS compliance, and includes CMRT and TSCA declarations, supporting regulatory alignment and responsible sourcing. Designed for XT4 compatibility and straightforward field installation, it delivers reliable trip control while reducing maintenance costs and unplanned outages in critical infrastructure. By aligning with ABB ecosystem practices, it also supports accurate BOM planning and traceability across the supply chain.
Product Information
Extended Description
1SDA068037R1 ABB: SOLID-STATE RELEASE THREE-POLE IN AC EKIP-M-LRIU R 200 XT4
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
E-Number (Finland)
3641300
EAN
8015644019372
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Width
110 mm
Product Net Height
100 mm
Product Net Depth / Length
150 mm
Product Net Weight
1 kg
Package Level 1 Units
1 piece
Package Level 1 Width
110 mm
Package Level 1 Height
100 mm
Package Level 1 Depth / Length
150 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8015644019372
Circuit Breaker Type to be Associated
Motor protection
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT4
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Rated Current (In)
200 A
Release
Ekip M-LRIU
Release Type
Electronic
Standards
IEC
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Instructions and Manuals
Ekip M-LRIU and connectors for PR212/CI e PTC, XT2-XT4
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Solid-state release with Ekip M-LRIU electronics provides precise, fast trip control for three-pole AC circuits. Business Impact: Reduced mechanical wear and longer service life, improving uptime for Tmax XT4 deployments. Application: Ideal for motor-protection and critical power circuits in data centers and manufacturing floors. Feature: 200 A rated current and loose or configurable installation enables flexible integration. Business Impact: Simplified wiring, scalable protection, and easier field upgrades without changing breakers. Application: Retrofit projects in space-constrained power distribution units. Feature: XT4 compatibility and straightforward field installation reduces engineering time. Business Impact: Faster commissioning, lower project risk, and seamless integration with existing Tmax XT frames. Application: New installations and modernizations in industrial plants. Feature: IEC, RoHS, CMRT, and TSCA declarations ensure regulatory compliance. Business Impact: Lower risk of non-compliance penalties and stronger ESG reporting. Application: Use in industries prioritizing traceability and responsible sourcing. Feature: Packaging and traceability aligned with EAN and single piece MOQ. Business Impact: Streamlined procurement, accurate BOMs, and predictable lead times. Application: Efficient inventory planning for maintenance and spares.
Get a Quick Quote for a ABB 1SDA068037R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA068037R1?
Enquire Now
FAQs
The 1SDA068037R1 is a loose or configurable 3P electronic release designed for XT4 integration. Start by disconnecting power, verify compatible PR212/CI connectors, mount the unit on the Tmax XT frame, and wire per ABB Ekip M-LRIU installation instructions. Ensure RoHS compliant cables and secure terminal torque.
Key specs include a 200 A rated current, three poles (3P), Ekip M-LRIU solid-state release, and XT4 compatibility. It supports AC operation and adheres to IEC standards. Look for EAN 8015644019372 and Customs Tariff 85389099 for procurement and compliance documentation.
Yes. This accessory is designed as a motor-protection related shunt release for Tmax XT series. Its electronic release provides fast, precise control and reduces mechanical wear on contactors, making it suitable for motor-driven loads in manufacturing and processing environments.
The product carries IEC standard conformity, RoHS declaration, CMRT for conflict minerals, and TSCA compliance. Additional environmental and packaging notes are available, along with WEEE categorization for disposal guidance.
The solid-state release minimizes mechanical wear seen in electro-mechanical releases, reducing maintenance downtime and spare parts usage. Its XT4 compatibility and traceable packaging simplify BOM management, supporting predictable maintenance schedules and lower total cost of ownership in critical electrical infrastructure.
