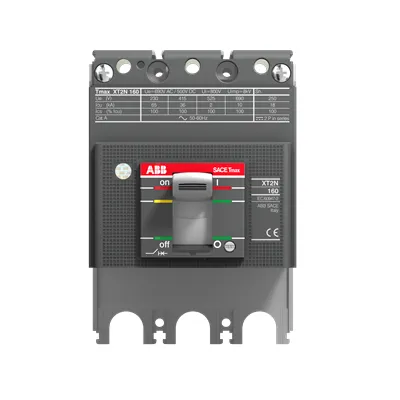

ABB 1SDA068165R1 Moulded Case Circuit Breaker - IEC60947-2
Part Number: 1SDA068165R1
Quick Summary
Moulded Case Circuit Breaker protects industrial power distribution by interrupting fault currents in panels and switchgear. Too often, engineers face nuisance trips, limited panel space, and extended downtime when selecting protective devices, complicating project timelines and maintenance budgets. This ABB Tmax XT2 device delivers robust protection with CE conformity, LR and GL certificates, and a DoC, reinforcing regulatory compliance and traceability. By leveraging 3P front-terminal installation and high current ratings, it enables scalable protection for evolving facilities, while supporting eco-friendly design and disassembly guidance. In practice, this IT-ready protection aligns with modern factory automation needs and helps reduce total cost of ownership across asset lifecycles.
Product Information
Extended Description
1SDA068165R1 ABB: BREAKING PART TMAX XT2H 160 FIXED THREE-POLE WITH FRONT TERMINALS
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT2 TM (CN) | EPD Tmax XT XT2 TM (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.70 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
E-Number (Finland)
3640554
E-Number (Norway)
4379501
EAN
8015644696146
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
90 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
0.82 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
150 mm
Package Level 1 Height
215 mm
Package Level 1 Depth / Length
135 mm
Package Level 1 Gross Weight
0.92 kg
Package Level 1 EAN
8015644696146
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Breaking Part
Version
F
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 70 kA | (500 V DC) 3 Poles in Series 70 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 70 kA | (500 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
690 V
Short-Circuit Performance Level
H
Standards
IEC60947-2
Sub-type
XT2
Terminal Connection Type
Front
Data Sheet, Technical Information
Catalogue SACE Tmax XT | SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | Catalogue (.PDF) [ZH] Tmax XT MCCB | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers | Catalogue (.PDF) [ZH] Tmax XT Technical Characteristics
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
GL Certificate
1SDL000163R0093
LR Certificate
LRs certificate Tmax XT
Wiring Diagram
Instructions and Manuals
Installation Instructions XT2
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: The 3P front-terminal design simplifies wiring, reduces installation time, and enables easy field maintenance in tight panel spaces. This translates into faster commissioning and lower on-site labor costs for switchgear upgrades or panel rebuilds in manufacturing lines and distribution boards. Feature → Business Impact → Application: A 690 V, 160 A rated device with clear Ics/Icu values ensures consistent fault interruption across voltage tiers, limiting arc flash exposure and protecting downstream equipment in motor feeders and transformer rooms. Feature → Business Impact → Application: High short-circuit performance (Ics/Icu up to 100 kA depending on voltage) provides reliable isolation during faults, reducing equipment damage and downtime in critical production lines. Feature → Business Impact → Application: ECO-solutions and packaging disposal support sustainability programs, helping plants meet corporate ESG goals while maintaining regulatory compliance for end-of-life handling. Feature → Business Impact → Application: RoHS/REACH declarations and transparent EPDs enable risk-conscious procurement, easing supplier audits and supporting lifecycle cost reductions through longer service intervals and easier maintenance planning.
Get a Quick Quote for a ABB 1SDA068165R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA068165R1?
Enquire Now
FAQs
The device is a three-pole MCCB with front-terminal connections designed for standard low‑voltage switchgear. It fits common 3P panel layouts and enables straightforward replacement in existing Tmax XT installations. Verify panel cut‑out, clearance, and wiring routing to ensure safe, compliant termination and reduce commissioning time.
Rated operational voltage is 690 V, with a rated uninterrupted current of 160 A. Short-circuit performance is listed as Ics and Icu values up to 100 kA across several voltages (e.g., at 220–240 V and 380–690 V ranges). Opening time is around 30 ms with a 3P configuration, supporting rapid fault isolation in demanding applications.
Yes. With 3P XT2 topology, front-terminal access, and 690 V rating, the 1SDA068165R1 is well-suited for transformer protection and feeder applications in industrial distribution boards. Its SCT/ICU ratings and IEC 60947-2 compliance provide reliable protection for transformer primaries and secondary circuits while enabling safe disconnection during faults.
The device conforms to IEC 60947-2 and carries CE conformity. ABB also provides LR and GL certificates and a Declaration of Conformity for Tmax XT2. Additional compliance information includes RoHS, REACH declarations, and ETIM classifications that support industry-standard procurement and installation.
ABB EcoSolutions provide end-of-life disassembly instructions, packaging disposal guidance, and an environmental product declaration (EPD) for Tmax XT XT2. These resources help optimize recycling, reduce waste, and support sustainability reporting, while the product’s robust durability minimizes maintenance frequency and extends service life in demanding industrial environments.
