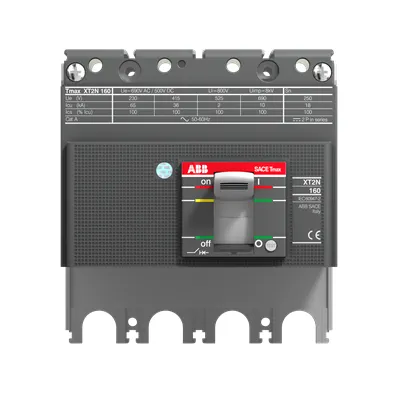

ABB 1SDA068170R1 Moulded Case Circuit Breaker - IEC60947-2
Part Number: 1SDA068170R1
Quick Summary
ABB 1SDA068170R1 Moulded Case Circuit Breaker is a 4-pole protection device for panel boards in industrial facilities. Upgrading protective gear often demands compact solutions that simplify wiring, reduce downtime, and meet evolving safety rules. It aligns with IEC 60947-2 and carries CE, GL, and LR certifications, plus sustainability data like EPD and EN45555 recyclability. Together with a front-terminal 4P design and 690 V rating, it delivers reliable protection for control panels and transformer feeders, boosting uptime and reducing wiring complexity. Designed for OEMs and panel builders, the unit integrates smoothly with common enclosures and offers predictable lifecycle costs. Its RoHS and REACH compliance supports responsible procurement programs.
Product Information
Extended Description
1SDA068170R1 ABB: BREAKING PART TMAX XT2H 160 FIXED FOUR-POLE WITH FRONT TERMINALS
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT2 TM (CN) | EPD Tmax XT XT2 TM (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.70 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
663e8bf8-ac39-45e2-bb3b-477786a0534a Italy (IT)
Simplified SCIP
11db11de-5fe4-45c9-b5e1-9f0c228fac65 Germany (DE) | 9672d8a0-cbab-4eea-b1fa-0a023db90dc1 France (FR) | 1daaad42-b6d2-4f63-85fe-f0ba430cdfbe Sweden (SE) | 882b6139-5abd-4752-b709-d722c2a7d2b1 Germany (DE) | dfb6fdb2-85f0-4fdb-8914-4f62acc0cbbc Germany (DE) | d96948a6-b3be-4d26-9f1f-21268276d34a France (FR) | 530e06d4-768a-4329-a9f0-9d54befb7dd1 Netherlands (NL) | 907efefb-2e63-4da6-a80d-87193b914a88 Spain (ES) | 1b3f7be3-1197-4c36-bef4-b19b4a9e1199 Netherlands (NL) | f5ae6816-a17b-414b-83d8-ea6be56b0f48 Poland (PL) | 883d3077-7100-4b9b-8a4b-ceef1e8d9006 Norway (NO) | 8ab542da-9e9d-44ce-9387-737bb6954d04 Sweden (SE) | 0ecfcaad-84c4-4d3a-8560-a33e692569db Poland (PL) | dbb16089-1024-4a39-bc5c-653a765b66a1 Finland (FI) | 7ab595e7-a807-4417-9740-52f1a338d40f Netherlands (NL) | bfad18d1-cf60-4d82-8e92-11060ebc1db0 Germany (DE) | 1c81d21a-a430-4295-813a-5d972026dcdd Denmark (DK) | 9e7b6aea-846c-431d-b6d2-df49017ffcd7 Germany (DE) | 99641427-b52a-4305-8555-ae54782cdf2f Croatia (HR) | e277dcf6-d6bb-4f3a-8358-e7553b09982f Czech Republic (CZ) | 8c0d26f3-1080-4b69-be9d-96ef1d4d5110 Poland (PL) | 96a5c325-9bd4-41a4-8dd3-3fba1bb6fcf7 Netherlands (NL) | 1acc923e-fb90-4570-9e48-2ad99899dee2 Netherlands (NL) | 476c31ba-afe5-489d-af9f-9df3fceff712 Estonia (EE) | a81ba7ef-697e-40f5-a67f-236f7b95159c Greece (GR) | bf325f2d-324a-48c8-9f9e-d7c8af2edca6 Portugal (PT) | 969daf7d-2111-46a2-b7b9-f96769350334 Bulgaria (BG)
Environmental Information
Breakers - Packaging disposal information
E-Number (Finland)
3640555
E-Number (Norway)
4379740
EAN
8015644020675
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
120 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
150 mm
Package Level 1 Height
215 mm
Package Level 1 Depth / Length
135 mm
Package Level 1 Gross Weight
1.3 kg
Package Level 1 EAN
8015644020675
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Breaking Part
Version
F
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
4P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 70 kA | (500 V DC) 3 Poles in Series 70 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 70 kA | (500 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
690 V
Short-Circuit Performance Level
H
Standards
IEC60947-2
Sub-type
XT2
Terminal Connection Type
Front
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
GL Certificate
1SDL000163R0093
LR Certificate
LRs certificate Tmax XT
Instructions and Manuals
Installation Instructions XT2
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Front-terminal, four-pole design enables straightforward wiring and compact installation. Business Impact: Reduces wiring errors and installation time, lowering labor costs and commissioning risk. Application: Ideal for space-constrained switchgear in industrial panels where clean wiring is essential. Feature: 690 V rated U r and Iu of 160 A provide robust protection for medium-voltage feeders. Business Impact: Enhances system reliability during fault events, minimizing downtime and equipment damage. Application: Suitable for transformer and feeder protection in manufacturing lines. Feature: High breaking capacities Ics of 100 kA and Icu of 70 kA across standard voltages. Business Impact: Delivers strong short-circuit protection over a wide operating range, meeting stringent safety requirements. Application: Critical for high-inertia loads and critical power circuits. Feature: IEC60947-2 compliant with FRONT terminal connection and 4P XT2 sub-type. Business Impact: Ensures compatibility with global standards and easy retrofits in legacy installations. Application: OEMs can integrate Tmax XT family components with confidence. Feature: Environmental and lifecycle data including EPD and 55.70% recyclability per EN45555. Business Impact: Supports sustainable procurement and end-of-life planning, reducing total waste. Application: Aligns with corporate ESG goals and supplier audits. Feature: Weight 1.2 kg and dimensions 120x130x82.5 mm with 1 piece MOQ. Business Impact: Facilitates handling, shipping, and stocking in distribution centers. Application: Efficient for high-volume projects and modular panel builds.
Get a Quick Quote for a ABB 1SDA068170R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA068170R1?
Enquire Now
FAQs
The device is rated for 690 V AC operation and uses a front-terminal, 4-pole configuration, making it directly compatible with many standard low-voltage to medium-voltage distribution panels. Its IEC 60947-2 compliance ensures predictable performance in common panel builders' enclosures, while the 160 A rated current supports typical feeder protections.
Key ratings include Iu of 160 A, Ics up to 100 kA, and Icu up to 70 kA, across voltages including 230–500 V DC and 380–690 V AC. Ui is 1000 V and U r is 690 V. These figures indicate strong fault current handling, safe insulation margins, and reliable disconnection under short-circuit conditions, making it suitable for transformer and motor feeder protection.
Yes. The ABB Tmax XT family is RoHS compliant and REACH declarations are provided. Environmental data include an Environmental Product Declaration (EPD) for Tmax XT and XT2,plus a recyclability rate of 55.70% per EN45555, supporting sustainable design and end-of-life planning.
Certification highlights include CE Declaration of Conformity, GL and LR certificates, and supporting documents like disassembly instructions and ETIM classifications. These certifications facilitate compliance checks during procurement, installation, and maintenance, and ease cross-border installation in many regions.
Front-terminal wiring simplifies installation and future upgrades, reducing labor costs and risk during maintenance. The compact 120x130x82.5 mm footprint and 1.2 kg weight ease stocking and handling. High short-circuit ratings increase system reliability, potentially lowering downtime. End-of-life data and recyclability support sustainable procurement programs and asset lifecycle planning.
