ABB 1SDA068208R1 Switch Disconnector - IEC60947-2
Part Number: 1SDA068208R1
Quick Summary
ABB 1SDA068208R1 Switch Disconnector is designed for safe, reliable isolation in 3P low-voltage power systems. Engineers often struggle with combining fast actuation, front-terminal wiring, and compact panel footprints without compromising safety. This XT1 device complies with IEC 60947-2 and carries a CE declaration, supporting RoHS/REACH compliance and lifecycle transparency. Beyond compliance, ABB EcoSolutions and its front-terminal design deliver reduced downtime and simpler installation, boosting panel uptime and serviceability. In short, this model provides robust safety, regulatory alignment, and reliable operation for modern electrical panels.
Product Information
Extended Description

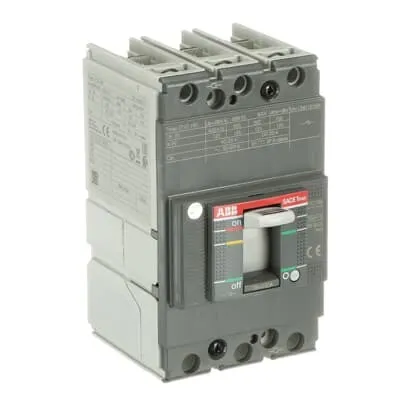

1SDA068208R1 ABB: SWITCH-DISCONNECTOR TMAX XT1D 160 FIXED THREE-POLE WITH FRONT TERMINALS
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT1
Environmental Product Declaration - EPD
EPD Tmax XT XT1 (IT) | EPD Tmax XT XT1 (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.9 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
76e5e264-a341-4dfa-89d8-fa3be8addbca Italy (IT)
Simplified SCIP
e50e009b-fb7d-4b94-b611-13cf467c3b76 Germany (DE) | 88b5c991-476a-46d0-a726-33fd4574598f France (FR) | b7788c2d-edde-4b48-b78b-127b3997c3a7 Germany (DE) | cf032aea-6a4b-458f-a15a-6a8676197fb1 Sweden (SE) | ce35c5ec-7bf6-4e6e-95ca-d4411bb5d855 Germany (DE) | b5b9add5-07fa-40b4-94ab-812ec045947a Germany (DE) | e660dffe-b69c-4315-b1a2-b9a31e2ea985 France (FR) | 09286d7d-582a-4b54-96ae-2fae997ff2bb Netherlands (NL) | 4f9d8cf0-6561-4acd-9a99-492b283aad18 Portugal (PT) | 0e402bac-f56a-45e3-9cc7-cda76daedd74 Bulgaria (BG) | 3b0c59c7-6ae9-4715-9db6-43bb293bed55 Sweden (SE) | 24976b34-3236-41a7-a91e-836fe8bc2136 Poland (PL) | 42b2b137-e23d-4afc-91c3-40b60bea0b43 Finland (FI) | cb9c492c-2591-4041-9e7b-11fb7f277570 Netherlands (NL) | 7f3fb368-01b3-4133-88fd-7431f602292e Germany (DE) | ae9f74f2-2106-4772-80cb-724f71937210 Denmark (DK) | 1b720682-65c4-4d63-8019-fc206acd2c13 Croatia (HR) | c542d192-396f-45e0-9f75-8cd573753556 Czech Republic (CZ) | 290e2e16-cca3-4a23-b7ba-d687878d4e2a Poland (PL) | fe50f313-078f-4ea0-a56e-287c265b3381 Netherlands (NL) | d55ab0bc-b7df-467c-b384-e54c4cdfd465 Netherlands (NL) | 654bf93e-0eaf-45c8-a0c3-0297c1f9b2a9 Estonia (EE) | bfcc1cd2-8554-43d9-a237-72d932584d29 Greece (GR) | 6e646c7c-1c10-446c-8654-54b1965acc2f Spain (ES) | d8d7028b-3908-43d6-8def-b42b5baae401 Netherlands (NL) | 6984adbd-a5be-4db7-89ee-2581119145cf Poland (PL) | fee51a20-f3df-4f5e-a977-51691ba088de Norway (NO)
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT1DE3160DFF000XXX
E-Number (Norway)
4379258
EAN
8015644021047
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.028 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
142 mm
Package Level 1 Height
134 mm
Package Level 1 Depth / Length
130 mm
Package Level 1 Gross Weight
1.082 kg
Package Level 1 EAN
8015644021047
Product Main Type
SACE Tmax XT
Product Name
Lasttrennschalter
Product Type
Switch Disconnector
Version
F
CAD Dimensional Drawing
XT1 4p FIXED F
Connecting Capacity Main Circuit
Busbar 45.5 ... 80 mm²
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 15 W
Rated Frequency (f)
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
800 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2 kA
Rated Uninterrupted Current (Iu)
160 A
Recommended Screw Driver
Main Circuit M6
Short-Circuit Performance Level
D
Standards
IEC60947-2
Sub-type
XT1
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
ATEX Certificate
No certification needed
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT1
UL Certificate
No certification needed
VDE Certificate
No certification needed
Dimension Diagram
XT1 3p-4p fixed front terminals
Mechanical Drawings
XT1 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT1
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371403
Feature → Business Impact → Application: Three-pole fixed front-terminal XT1 design enables immediate isolation with minimal wiring effort, reducing installation time and wiring mistakes in dense switchgear. This translates to faster project commissioning and improved field reliability in control panels and distribution boards. Feature → Business Impact → Application: 690 V AC / 500 V DC rated operational voltage with Ui 800 V and Uimp 8 kV, combined with 160 A continuous current and 2 kA short-time withstand, delivers dependable protection for demanding industrial networks. This supports safe motor starts and fault containment in manufacturing lines and process plants. Feature → Business Impact → Application: Fast opening time (30 ms) and verified mechanical durability (25,000 cycles) minimize interruption duration and maintenance cycles, enhancing process availability in critical automation installations. Feature → Business Impact → Application: Front terminal, bolt-type connections with 6 N·m tightening torque and M6 screwdriver compatibility streamline wiring, reduce commissioning risk, and support robust field reliability in compact switchboards. Feature → Business Impact → Application: Compliance with IEC60947-2, CE declarations, RoHS/REACH, and EPD data from ABB EcoSolutions provide lifecycle transparency and sustainability alignment for panel builders and OEMs targeting regulatory and environmental goals. Feature → Business Impact → Application: Disassembly instructions and recyclability data enable end-of-life planning and circular economy initiatives, supporting maintenance teams in planning waste reduction and cost optimization.
Get a Quick Quote for a ABB 1SDA068208R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA068208R1?
Enquire Now
FAQs
The device uses front-terminal, bolt-type connections and requires a 76.2 mm width enclosure space with a depth of 70 mm and a height of 130 mm. Wiring should be conducted with M6 tooling, and tightening torque is 6 N·m. Busbar connections should be 45.5 to 80 mm² to match the main circuit requirements, ensuring proper electrical contact and reliable isolation.
Key ratings include 690 V AC / 500 V DC rated operating voltage, Ui 800 V, Uimp 8 kV, Iu 160 A, Icw 2 kA for 1 s, and a rated frequency of 50/60 Hz. Opening time is approximately 30 ms, and the device supports 25,000 mechanical cycles, with 8,000 electrical cycles per hour, supporting demanding industrial use.
Yes. With three poles, fixed front terminals, robust insulation (Ui 800 V, Uimp 8 kV), and front-access wiring, it suits compact motor control centers and distribution boards. Its compact footprint and reliable actuation help minimize panel depth while maintaining safe isolation during maintenance and fault conditions.
The device adheres to IEC 60947-2 and carries a CE Declaration of Conformity. It also provides RoHS/REACH declarations, CMRT data for conflict minerals, and EPD environmental declarations, enabling regulatory and sustainability audits and supplier compliance programs.
Key lifecycle factors include 15 W power loss per pole under normal operation, 30 ms opening time for quick fault isolation, and 8,000 electrical cycles. End-of-life planning is supported by disassembly instructions and recyclability data (55.9% design for closing resource loops per EN45555), aiding maintenance planning and waste reduction strategies.
