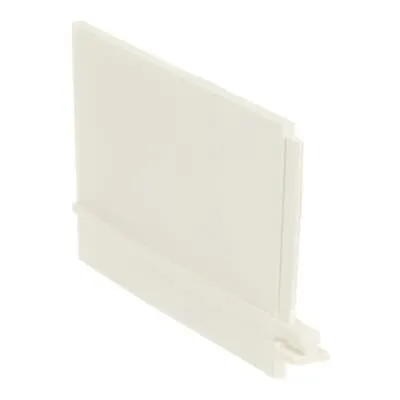

ABB 1SDA068953R1 Accessory - 3P Phase Barrier (IEC60947-2)
Part Number: 1SDA068953R1
Quick Summary
ABB 1SDA068953R1 accessory is a 3-pole phase barrier kit designed for Tmax XT XT1–XT4 circuit breakers, delivering safe separation between live parts and accessible surfaces. In practice, installers face the challenge of maintaining phase integrity while minimizing maintenance downtime and safety risks. This kit helps standardize barrier configurations, reducing misassembly and enabling quick field upgrades. It carries CE conformity and IEC 60947-2 compliance, with RoHS and REACH declarations ensuring environmental and regulatory alignment. By enabling loose or configurable mounting, it supports modular system design and future expandability, while the integrated packaging and clear documentation streamline procurement, inventory management, and service-level performance for panel builders and OEMs.
Product Information
Extended Description
1SDA068953R1 ABB: PB 90mm FP 4pcs XT1..XT4 3p KIT DI.PH.RE
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXTAEPB90-3
E-Number (Norway)
4381472
EAN
8015644697211
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.17 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
145 mm
Package Level 1 Height
50 mm
Package Level 1 Depth / Length
250 mm
Package Level 1 Gross Weight
0.17 kg
Package Level 1 EAN
8015644697211
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT1, XT2, XT3, XT4
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Standards
IEC60947-2
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
PB - Phase barriers XT1-XT2-XT3-XT4
ETIM 8
EC002273 - Phase barrier plate
ETIM 9
EC002273 - Phase barrier plate
IDEA Granular Category Code (IGCC)
4873 >> Phase separation plate for power circuit breaker
Object Classification Code
Q
UNSPSC
39121601
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27400614
Three-pole phase barrier kit for Tmax XT XT1 through XT4 provides clear separation between live components and operator access, improving safety and reducing the risk of accidental contact. This translates to measurable maintenance efficiency, faster commissioning, and compliant servicing in power distribution panels and machine automation. The kit offers loose or configurable mounting, delivering installation flexibility that shortens field retrofit times and minimizes the need for custom hardware in dense enclosures. It comes with comprehensive documentation and data sheets, speeding procurement, traceability, and regulatory audits for European and global sites. RoHS, REACH, CMRT, and TSCA declarations support cross-border compliance, reducing supplier risk and enabling sustainable reporting. At 0.17 kg, the unit is lightweight with compact packaging, lowering logistics costs and easing on-site handling. Compatibility with XT1–XT4, IEC 60947-2, and ETIM/IGCC classifications ensures seamless integration into existing Tmax XT installations and panel building workflows.
