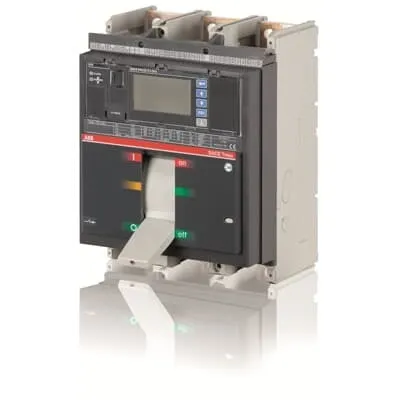

ABB 1SDA069449R1 Moulded Case Circuit Breaker - PR332/P LSIG
Part Number: 1SDA069449R1
Quick Summary
ABB 1SDA069449R1 Moulded Case Circuit Breaker protects distribution networks in industrial plants. Engineers often face costly downtime from nuisance trips or mis-specified protection settings. This device is CE-conforming under IEC standards, with RoHS, REACH and TSCA declarations. Designed for Tmax T7 installations, its front-terminal wiring and fixed 3P construction simplify panel mounting and maintenance. Operating at 690 V AC with 800 A nominal, it balances high fault protection with a compact footprint, helping you optimize space and uptime. Backed by detailed data like 8 kV impulse withstand, RoHS/REACH/TSCA declarations, and documented wiring diagrams, it supports compliant, audit-ready installations.
Product Information
Extended Description
1SDA069449R1 ABB: C.BREAKER TMAX T7X 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR332/P LSIG R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644701291
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
154 mm
Product Net Weight
9.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
11.2 kg
Package Level 1 EAN
8015644701291
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 170 kA | (230 V AC) 170 kA | (380 V AC) 170 kA | (400 V AC) 170 kA | (415 V AC) 170 kA | (440 V AC) 170 kA | (500 V AC) 170 kA | (690 V AC) 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 170 kA | (230 V AC) 170 kA | (380 V AC) 170 kA | (400 V AC) 170 kA | (415 V AC) 170 kA | (440 V AC) 170 kA | (500 V AC) 170 kA | (690 V AC) 75 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR332/P LSIG
Release Type
EL
Short-Circuit Performance Level
X
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
9AKK105713A5946
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: High current and voltage capability with 800 A rated current, 690 V operational voltage and Ui 1000 V. Business Impact: Enables reliable protection for large motor feeders and critical distribution feeders, reducing the need for frequent upgrades and ensuring safer, more stable plant operation. Application: Ideal for Tmax T7 configurations in switchgear where heavy load handling and robust insulation are required. Feature: High fault withstand with Ics/Icu up to 170 kA (at lower voltages) and 75 kA at 690 V. Business Impact: Provides strong short-circuit protection, minimizing equipment damage and downtime during faults. Application: Suitable for transformer interfaces and high-current bus sections in industrial zones where surge conditions are common. Feature: PR332/P LSIG solid-state release with EL type, offering precise tripping and selective coordination. Business Impact: Improves protection selectivity and ride-through reliability, reducing nuisance trips while preserving coordinated protection schemes. Application: Compatible with Tmax T7 protection architectures in complex automation lines. Feature: Front-terminal, fixed circuit-breaker design for quick, secure wiring and servicing. Business Impact: Speeds up installation and maintenance, lowers field wiring errors, and enhances panel density. Application: Fits compact switchgear where accessible wiring is critical. Feature: Durability and energy efficiency, including 3000 electrical and 10000 mechanical cycles with 32 W power loss per pole. Business Impact: Extends service life, lowers maintenance costs, and reduces running energy consumption over the device lifetime. Application: Beneficial in high-cycle alarm and protection schemes within continuous operation environments. Certification and compliance support: RoHS, REACH, CMRT, TSCA declarations, CE conformity, and WEEE alignment with EPD information. Business Impact: Facilitates regulatory compliance, streamlined audits, and sustainable procurement. Application: Global deployment across regional electrical standards while maintaining product traceability.
Get a Quick Quote for a ABB 1SDA069449R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA069449R1?
Enquire Now
FAQs
Yes. This 3P MCCB is designed for Tmax T7 installations, featuring fixed front terminals for secure wiring, 690 V operation, and an 800 A rating. It integrates with standard Tmax T7 configurations, simplifies wiring diagrams (T7-T7M), and supports straightforward panel mounting while delivering reliable protection in industrial control panels.
At 690 V, the device provides a rated service short-circuit breaking capacity (Ics) of 75 kA and an ultimate short-circuit capacity (Icu) of 75 kA. At lower voltages, Ics/Icu can reach 170 kA depending on the voltage, enabling robust protection for high-current feeders and transformers while maintaining selective coordination.
Yes. With 800 A rated current, 690 V operating voltage, and high Ics/Icu ratings, the device is well-suited for transformer protection and motor feeder protection within switchgear. The PR332/P LSIG solid-state release supports precise tripping, aiding selective protection schemes for complex automation lines.
The product carries CE conformity under IEC standards, RoHS and REACH declarations, TSCA declaration, CMRT for conflict minerals, and WEEE compliance. It also lists the EPD reference NoDecNee and energy/disposal information, supporting audit-ready documentation and global regulatory adherence.
Electrical durability is rated at 3000 cycles and mechanical durability at 10000 cycles, with a power loss of 32 W per pole under rated conditions. This translates to longer service intervals, lower maintenance costs, and improved overall energy efficiency in continuous-operation applications.
