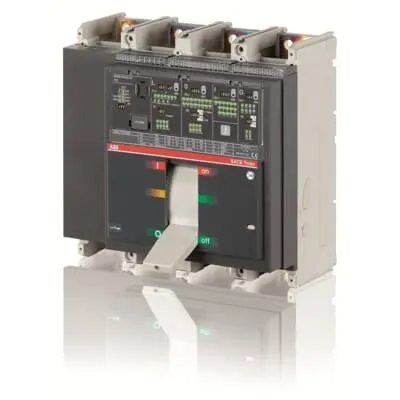

ABB 1SDA069453R1 Moulded Case Circuit Breaker - 8 kV CE
Part Number: 1SDA069453R1
Quick Summary
The ABB 1SDA069453R1 Moulded Case Circuit Breaker provides reliable overload and short‑circuit protection for industrial power distribution. Engineers often struggle with faults that trigger unexpected downtime and costly outages; robust protection and straightforward installation help keep lines up and running. This device carries IEC standards, CE conformity, and RoHS/REACH declarations, plus CMRT and TSCA where required, supporting global compliance. With an 800 A rating, front-terminal mounting, and a compact 280 mm width, it simplifies panel design and maintenance for Tmax T7 systems while delivering dependable protection and long‑term value.
Product Information
Extended Description
1SDA069453R1 ABB: C.BREAKER TMAX T7X 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR331/P LSIG R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644701932
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
154 mm
Product Net Weight
12.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
14 kg
Package Level 1 EAN
8015644701932
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 170 kA | (230 V AC) 170 kA | (380 V AC) 170 kA | (400 V AC) 170 kA | (415 V AC) 170 kA | (440 V AC) 170 kA | (500 V AC) 170 kA | (690 V AC) 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 170 kA | (230 V AC) 170 kA | (380 V AC) 170 kA | (400 V AC) 170 kA | (415 V AC) 170 kA | (440 V AC) 170 kA | (500 V AC) 170 kA | (690 V AC) 75 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR331/P LSIG
Release Type
EL
Short-Circuit Performance Level
X
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
9AKK105713A5946
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
The 800 A rated current and 170 kA short‑circuit breaking capacity enable safe interruption of heavy loads without cascading faults. This translates into fewer unplanned outages and greater uptime for critical manufacturing lines. Fixed four‑pole design with front terminals simplifies wiring, reduces panel depth, and speeds installation in switchgear cabinets, while supporting straightforward field maintenance and faster fault isolation. PR331/P LSIG release provides selective tripping, enabling coordinated protection across downstream devices and reducing nuisance trips in transformer and genset applications. Durability figures of 3000 electrical cycles and 10000 mechanical cycles lower maintenance costs and extend service life in harsh industrial environments. Compliance and environmental evidence include IEC standards, CE conformity, RoHS and REACH declarations, CMRT, and TSCA declarations, supporting audits and sustainability goals. The compact footprint—280 mm width, 268 mm height, 154 mm depth, and 12.5 kg weight—fits modern control panels and streamlines logistics for Tmax T7 configurations.
Get a Quick Quote for a ABB 1SDA069453R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA069453R1?
Enquire Now
FAQs
This MCCB uses a fixed, front-terminal design, simplifying wiring and field wiring harness routing. It fits standard Tmax T7 panel layouts and enables faster installation with minimal back‑box clearance. When planning installs, verify panel cutouts align with the device footprint (280 mm wide, 268 mm high, 154 mm deep) and ensure adequate space for connection terminals and wiring routes.
Key specs include rated current IN of 800 A, rated operational voltage 690 V AC, rated insulation voltage 1000 V, rated impulse withstand voltage 8 kV, and fault-current capabilities of 170 kA (Ics/Icu) across specified voltages. The unit is four‑pole (4P) with front terminal connections and a PR331/P LSIG release, conforming to IEC standards.
Yes. With 800 A capacity and 170 kA short‑circuit breaking capacity, it supports transformer protection and large motor feeders in Tmax T7 installations. The four‑pole configuration and LSIG release help coordinate protection across upstream and downstream devices, improving system reliability and limiting damage during faults.
The device includes CE conformity and IEC standards compliance, along with RoHS and REACH declarations. CMRT for conflict minerals and TSCA declarations are provided where applicable, supporting compliance reporting and sustainability goals in globally distributed facilities.
Durability figures—3000 electrical cycles and 10000 mechanical cycles—translate to lower maintenance intervals and longer service life. The front-terminal design reduces wiring time, while compact dimensions and weight (12.5 kg) simplify panel redesigns, enabling faster commissioning and overall cost savings on large‑scale installations.
