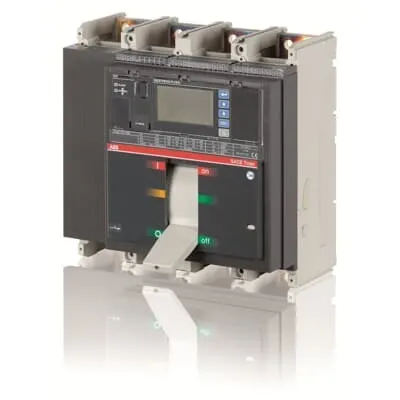

ABB 1SDA069456R1 Moulded Case Circuit Breaker - 8 kV
Part Number: 1SDA069456R1
Quick Summary
ABB 1SDA069456R1 Moulded Case Circuit Breaker provides robust overcurrent protection for power distribution and motor circuits in industrial plants. Operators frequently endure nuisance tripping during upgrades or retrofit projects, driving unplanned downtime and costly rework. This device carries IEC standards compliance with CE declarations and RoHS/REACH declarations to simplify regulatory and environmental audits. Designed as a Tmax T7 family member, it supports front-terminal, four-pole installation and reliable short-circuit protection. The combination of strong protection, easy maintenance, and clear documentation reduces downtime, improves safety, and lowers total cost of ownership for panel builders and end users alike.
Product Information
Extended Description
1SDA069456R1 ABB: C.BREAKER TMAX T7X 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR332/P LSIG R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644701963
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
154 mm
Product Net Weight
12.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
14 kg
Package Level 1 EAN
8015644701963
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 170 kA | (230 V AC) 170 kA | (380 V AC) 170 kA | (400 V AC) 170 kA | (415 V AC) 170 kA | (440 V AC) 170 kA | (500 V AC) 170 kA | (690 V AC) 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 170 kA | (230 V AC) 170 kA | (380 V AC) 170 kA | (400 V AC) 170 kA | (415 V AC) 170 kA | (440 V AC) 170 kA | (500 V AC) 170 kA | (690 V AC) 75 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR332/P LSIG
Release Type
EL
Short-Circuit Performance Level
X
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
9AKK105713A5946
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210033D0202
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Four-pole fixed front-terminal design provides a compact, safe wiring footprint and straightforward installation, reducing wiring time and the risk of loose connections. Business Impact: Faster panel assembly and fewer on-site errors translate to measurable labor-cost reductions and improved fault-response times in critical applications. Application: Ideal for transformer and generator protection within Tmax T7-based panels where reliability and quick access matter. Feature: PR332/P LSIG solid-state release delivers precise, rapid tripping and improved coordination with upstream protection. Business Impact: Enhanced safety margins and reduced nuisance trips, lowering unplanned shutdowns and protecting downstream equipment. Application: Suitable for high-current motor circuits and plant feeders demanding dependable release behavior. Feature: 800 A rated current and 690 V AC operating voltage with 8 kV impulse withstand and 1000 V insulation. Business Impact: High fault-current tolerance supports robust electrical protection in demanding environments, while staying within common industrial electrical codes. Application: Heavy-duty switchgear connections and critical power distribution in manufacturing lines. Feature: Front-termination, 4P design with Tmax T7 compatibility and 12.5 kg weight. Business Impact: Easy mounting and maintenance, reduced downtime during replacements, and consistent panel integration across modern control architectures. Application: Retrofit and new-build panels that require reliable, serviceable MCCB solutions with standardized interfaces. Feature: Comprehensive documentation and compliance package including RoHS, REACH, CMRT, TSCA, CE declarations, and WEEE considerations. Business Impact: Streamlined regulatory audits, safer material choices, and easier supplier qualification for global deployments. Application: Environments requiring rigorous chemical and environmental compliance, such as automotive, heavy machinery, and energy projects.
Get a Quick Quote for a ABB 1SDA069456R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA069456R1?
Enquire Now
FAQs
This 4P fixed-front-terminal device is designed for straightforward panel mounting with front-entry wiring. Plan for appropriate rear clearance and access to the front terminals for maintenance. Ensure compatibility with Tmax T7 family assemblies and observe the 690 V AC operating voltage and 8 kV impulse withstand when sizing feeders and upstream protection.
The unit is rated 800 A with 690 V AC operation and an 8 kV rated impulse withstand. Short-circuit breaking capacities (Ics/Icu) are specified at multiple voltages, notably 170 kA at common distribution voltages and up to 75 kA at 690 V. It also provides 800 A rated uninterrupted current (Iu) for sustained operation.
Yes. The product includes CE declarations of conformity, RoHS compliance information, and REACH declarations. Additional sustainability data covers CMRT, TSCA declarations, and packaging/environmental information, supporting compliance during audits and supplier evaluations for global deployments.
This MCCB is designed for high-current protection in power distribution panels, motor control centers, transformer protection, and generator protection schemes. Its four-pole, front-terminal configuration and LSIG release optimize safety and reliability in heavy-duty industrial environments, aligning with typical Tmax T7 deployment scenarios.
Mechanical durability up to 10,000 cycles and electrical durability around 3,000 cycles at standard rates translate to long service life under typical industrial duty. The front-terminal design also simplifies replacement and inspection, reducing downtime during maintenance windows and enabling more predictable lifecycle planning.
