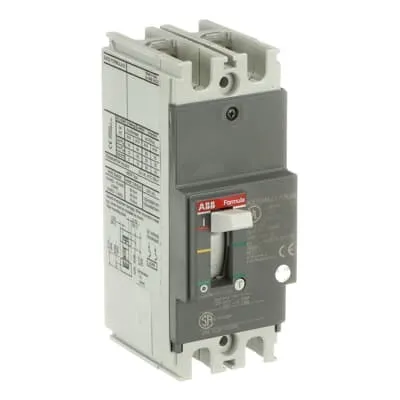

ABB 1SDA069738R1 Moulded Case Circuit Breaker - UL
Part Number: 1SDA069738R1
Quick Summary
ABB 1SDA069738R1 Moulded Case Circuit Breaker protects low‑voltage power circuits in industrial automation. In demanding panels it minimizes nuisance trips and unplanned downtime caused by sudden surge events. It carries UL listing, CE declaration of conformity, and RoHS/REACH compliance for global deployment. As part of ABB's SACE Formula family, the 2‑pole unit features front terminals and a TMF release for straightforward installation and dependable protection. These standards support safer maintenance, faster panel upgrades, and reduced warranty and service costs across OEM and end‑user sites. The 70 A rating, 690 V Ui insulation, and 6 kV Uimp withstand enable reliable performance in distribution and transformer protection scenarios.
Product Information
Extended Description
1SDA069738R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED TWO-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 70-700 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N070TW-2
EAN
8015644705015
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
50.8 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.5 kg
Package Level 1 Units
1 piece
Package Level 1 Width
143 mm
Package Level 1 Height
74 mm
Package Level 1 Depth / Length
93 mm
Package Level 1 Gross Weight
0.55 kg
Package Level 1 EAN
8015644705015
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
2P
Rated Current (In)
Main Circuit 70 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 I-II UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Two-pole front-terminal design enables faster wiring and cleaner panel layouts. That translates into shorter commissioning times, reduced wiring errors, and easier future upgrades in control cabinets. TMF thermomagnetic release provides precise, selective short-circuit protection while minimizing nuisance trips during normal operation. For panel builders, this means fewer service calls and more consistent uptime in motors and feeders. Rated current of 70 A and Ui of 690 V support distribution applications across industrial facilities. An 6 kV Uimp rating and 240 V AC / 250 V DC operating voltage extend protection into mixed systems. Material compliance covers REACH, RoHS, CMRT, and TSCA, simplifying supplier audits and regulatory reporting. UL listing and CE conformity further ease global procurement and market deployment. Front-terminal design and compatibility with the SACE Formula family streamline upgrades to existing switchboards. It provides standardized interfaces, easy part replacement, and consistent spare‑parts availability for panel manufacturers. Engineers benefit from ABB's documentation and validation data, enabling faster commissioning and reduced risk in critical power applications. With a proven track record in transformer protection and power distribution, it supports reliable, long-term operation.
