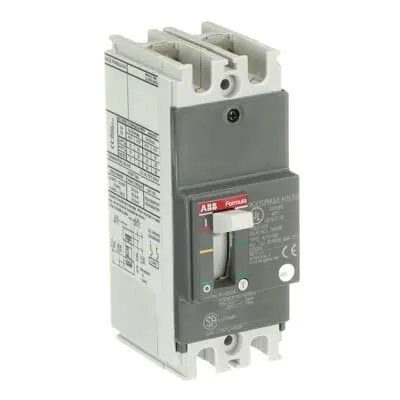

ABB 1SDA069740R1 Moulded Case Circuit Breaker - UL 2P TMF
Part Number: 1SDA069740R1
Quick Summary
Moulded Case Circuit Breaker protects electrical circuits in industrial equipment, ensuring selective tripping and reliable power distribution. This ABB device addresses nuisance trips and complex fault tracing by delivering precise magnetic-tamper TMF release and front-terminal wiring for straightforward installation. UL listing, CE conformity, and RoHS-compliant materials support regulatory compliance and safety across global plants. Designed for high-availability environments, it integrates with switchgear and distribution panels while reducing maintenance overhead. The combination of a 2-pole configuration, 90 A main rating, and 690 V insulation enables robust protection for transformers, motors, and critical power feeds, helping you optimize uptime and procurement workflows with a single, traceable solution.
Product Information
Extended Description
1SDA069740R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED TWO-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 90-900 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N090TW-2
EAN
8015644705039
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
50.8 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.5 kg
Package Level 1 Units
1 piece
Package Level 1 Width
143 mm
Package Level 1 Height
74 mm
Package Level 1 Depth / Length
93 mm
Package Level 1 Gross Weight
0.55 kg
Package Level 1 EAN
8015644705039
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
2P
Rated Current (In)
Main Circuit 90 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 I-II UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: Front-terminal, two-pole design simplifies wiring and enables fast, error-free installation in crowded distribution panels, reducing commissioning time and labor costs. This configuration supports TMF release for precise, selective protection, lowering the risk of unnecessary trips and improving system availability in motor and transformer feeders. Feature → Business Impact → Application: Rated 90 A main circuit with 690 V insulation provides a wide operating envelope for low- to medium-voltage systems, supporting both AC and DC applications with reliable interruption capability. This translates to safer shutdowns and easier integration with existing UL-compliant switchgear, enhancing fleet-wide protection standards. Feature → Business Impact → Application: Front-terminal connection and UL/CE/RoHS compliance streamline procurement, stocking, and maintenance, enabling faster audits and consistent material compliance across multi-site installations. Feature → Business Impact → Application: Short-Circuit Performance Level N and UL489-rated interrupting capacity (25 kA at 240 V) deliver robust fault handling for high-energy environments, supporting transformer protection, panel boards, and distribution blocks. Feature → Business Impact → Application: The TM release and sub-type A1 design provide predictable tripping behavior under overload conditions, mitigating downtime and enabling precise coordination with upstream protective devices. Feature → Business Impact → Application: Packaging and product data align with ETIM 8/9 classifications and external standards, aiding cataloging, cross-referencing, and e-commerce visibility for procurement teams.
Get a Quick Quote for a ABB 1SDA069740R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA069740R1?
Enquire Now
FAQs
The ABB 1SDA069740R1 is designed for front-terminal wiring in a two-pole arrangement. Begin by disconnecting power, mount the unit upright in the panel, align with standard DIN rail or mounting provision, attach front terminals securely, and wire per the schematic. Verify torque values and test the TMF release in a controlled manner after installation.
Key specs include two poles (2P), main current rating 90 A, rated insulation voltage 690 V, rated operational voltage 240 V AC / 250 V DC, rated impulse withstand voltage 6 kV, and TMF release with TM. The interrupting rating per UL489 is 25 kA at 240 V and 10 kA at 250 V DC for two poles in series.
Yes. With 90 A main current, 690 V insulation, and a TMF release, this moulded case circuit breaker is well-suited for transformer protection and distribution panels in low- to medium-voltage LV networks. Its front-terminal design and UL/CE compliance streamline integration in transformer bays and switchgear assemblies.
The device carries UL listing, CE declaration of conformity, and RoHS compliance for restricted substances. It also aligns with TSCA and CMRT in environmental reporting. These certifications support regulatory acceptance across North America and Europe for industrial power protection equipment.
The TMF release provides precise tripping, reducing nuisance trips and unwarranted downtime. Front-terminal wiring simplifies installation and future replacements, lowering labor costs. UL/CE/RoHS compliance minimizes regulatory risks, while predictable performance supports longer service life and smoother procurement, improving overall return on investment.
