ABB 1SDA069753R1 Moulded Case Circuit Breaker - UL
Part Number: 1SDA069753R1
Quick Summary
ABB 1SDA069753R1 Moulded Case Circuit Breaker provides reliable overcurrent protection for industrial power distribution. Engineers often face wiring complexity, panel space constraints, and the challenge of meeting evolving safety and environmental standards. This model carries UL listing, CE conformity, and RoHS and TSCA declarations, aligning with ABB Sace protection philosophy. The front-terminal design, TMF release, and 3P configuration support modular panel layouts, fast installation, and predictable trip characteristics. In practice, it reduces wiring errors, speeds commissioning, and helps maintain regulatory compliance across diverse automation projects.
Product Information
Extended Description

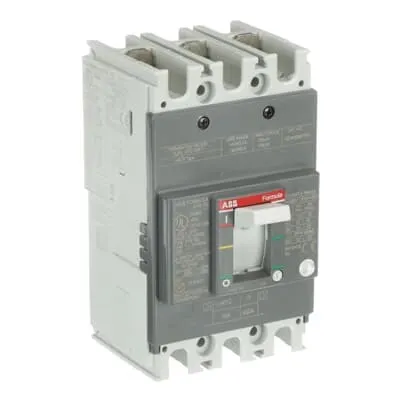

1SDA069753R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 15-400 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N015TW
EAN
8015644705121
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.75 kg
Package Level 1 Units
1 piece
Package Level 1 Width
136.5 mm
Package Level 1 Height
124 mm
Package Level 1 Depth / Length
110.5 mm
Package Level 1 Gross Weight
0.8 kg
Package Level 1 EAN
8015644705121
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
3P
Rated Current (In)
Main Circuit 15 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 III UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: 3P fixed TMF with front terminals simplifies wiring and enables safer, faster field installation in control panels, reducing commissioning time and potential miswiring during maintenance. This translates to measurable cost savings and higher first-pass yield on machine builds, ideal for machine builders and panel shops integrating ABB Sace family products. Feature → Business Impact → Application: Rated 15 A main circuit with 100 A Iu and 6 kV Uimp provides robust overcurrent protection for feeders and control circuits while keeping insulation margins high in mixed-voltage environments, supporting reliable operation in lightweight automation cells and packaging lines. Feature → Business Impact → Application: UL and CE conformity, RoHS and TSCA declarations, plus front-terminal compatibility, reduce procurement risk and simplify supplier qualification for regulated industrial environments, including automotive assembly and process automation. Feature → Business Impact → Application: Compact footprint (76.2 mm W × 130 mm H × 60 mm D) and 0.75 kg weight enable tighter panel layouts and easier retrofits in existing enclosures, beneficial for retrofits in legacy machines and space-constrained cabinets. Feature → Business Impact → Application: 25 kA interrupting rating at 240 V and 10 kA at 250 V DC (2 poles in series) offer strong short-circuit protection for critical feeders and transformer protection schemes, improving system uptime in power distribution blocks and motor control centers. Feature → Business Impact → Application: Front-terminal design supports quick wiring checks and safe maintenance, reducing downtime during routine inspections and enabling streamlined spare-part planning for field service teams. In-context insight: the device aligns with SACE Formula A1 family practices, supporting standardized installation manuals and cross-compatibility with ABB protection components for scalable, resilient automation architectures.
