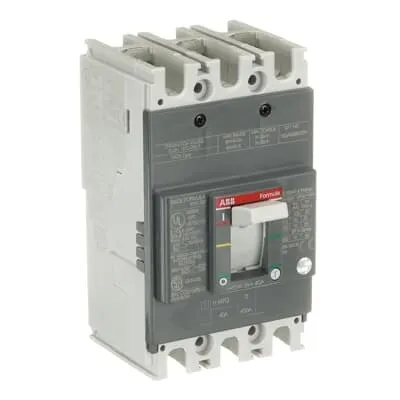

ABB 1SDA069757R1 Moulded Case Circuit Breaker - UL TMF 6 kV
Part Number: 1SDA069757R1
Quick Summary
Moulded Case Circuit Breaker is a protective device that safeguards 3-phase power systems in industrial panels. Engineers often battle mismatched interrupting ratings and cramped panel layouts, which can delay commissioning and increase risk. Key certifications include UL listing, RoHS and REACH declarations, and a CE Declaration of Conformity, ensuring global compliance. With ABB SACE Formula TMF releases and a 690 V insulation rating, this MCCB delivers reliable protection while streamlining procurement, installation, and maintenance in automation environments.
Product Information
Extended Description
1SDA069757R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 40-400 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N040TW
EAN
8015644705169
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.75 kg
Package Level 1 Units
1 piece
Package Level 1 Width
136.5 mm
Package Level 1 Height
124 mm
Package Level 1 Depth / Length
110.5 mm
Package Level 1 Gross Weight
0.8 kg
Package Level 1 EAN
8015644705169
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
3P
Rated Current (In)
Main Circuit 40 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 III UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
The 3-pole front-terminal TMF release combines compact wiring with safer maintenance, reducing installation time in panelboards and control cabinets while enabling faster fault isolation in automated lines. This directly improves system uptime and reduces commissioning costs for machine builders and integrators. With a rated current of 40 A, it protects medium-duty distribution and transformer feeders, improving overall reliability in automation plants. The device withstands a Uimp of 6 kV and Ui of 690 V, supporting robust protection across mixed voltage networks and challenging industrial environments. The front-terminal connection simplifies wiring, minimizes panel depth, and facilitates retrofits in existing installations, delivering cost-effective upgrades for legacy systems. RoHS/REACH and TSCA declarations, along with UL compliance, streamline compliance across global sites and procurement channels, while the SACE Formula lineage assures compatibility with ABB’s broader protection strategy.
Get a Quick Quote for a ABB 1SDA069757R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA069757R1?
Enquire Now
FAQs
This MCCB is designed for front-terminal wiring, simplifying panel upgrades and retrofits. Begin by verifying panel clearance for 76.2 mm width and 130 mm height, then mount per standard 3P MCCB guidelines. Tighten terminals to the manufacturer’s torque specification, connect the three phases with appropriate conductor sizes, and test the TMF release operation in a controlled fault-simulation sequence before commissioning.
Key specs include 3 poles, 40 A rated current (In), Ui of 690 V, Uimp of 6 kV, and rated operational voltage of 240 V AC / 250 V DC. Interrupting rating per UL489 is up to 25 kA at 240 V and 2 poles in series up to 10 kA at 250 V DC. The device is rated for Iu up to 100 A and uses a TMF release with a TM operating type.
Yes. Its 3P configuration with TMF release and 6 kV impulse withstand is well-suited for transformer protection and motor control in industrial automation. The 690 V Ui supports higher insulation in mixed-voltage systems, while front-terminals facilitate fast wiring in compact switchgear. It’s designed to deliver reliable protection in production lines and control cabinets while meeting UL standards.
The unit carries UL certification and CE declaration of conformity, with RoHS and REACH declarations, and TSCA readiness. It also aligns with CMRT reporting. These certifications support multi-region deployments in North America and Europe, helping buyers meet regulatory requirements without additional vendor-era documentation.
Routine maintenance centers on inspection of front-terminal connections and verification of TMF release operation. The 3P 40 A rating suits mid-range distributions, offering protection against short circuits and overloads while minimizing nuisance tripping. Improved reliability, easier retrofits, and reduced panel downtime translate into lower lifecycle costs and faster return on investment for automation projects.
