ABB 1SDA069758R1 Moulded Case Breaker - UL 25 kA
Part Number: 1SDA069758R1
Quick Summary
ABB 1SDA069758R1 Moulded Case Breaker provides reliable overload and short-circuit protection for industrial control panels and power distribution. Design considerations like compact form factor and front-terminal access often complicate wiring and maintenance in tight enclosures. UL-listed with a CE declaration and RoHS/REACH compliance, this unit is ready for global deployment across industrial environments. This combination enables safer, faster installations and easier routine testing, while delivering consistent protection across mixed AC and DC circuits. For panel builders and OEMs, the integrated TMF release, 3P configuration, and ABB SACE Formula heritage translate into predictable coordination, reduced risk, and lower total cost of ownership over the device lifecycle.
Product Information
Extended Description

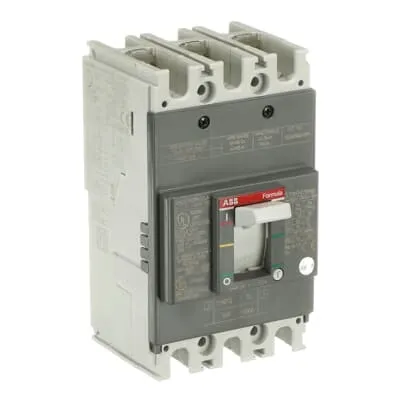

1SDA069758R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 50-500 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N050TW
EAN
8015644705176
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.75 kg
Package Level 1 Units
1 piece
Package Level 1 Width
136.5 mm
Package Level 1 Height
124 mm
Package Level 1 Depth / Length
110.5 mm
Package Level 1 Gross Weight
0.8 kg
Package Level 1 EAN
8015644705176
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
3P
Rated Current (In)
Main Circuit 50 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 III UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
3-pole TMF release with front-terminal connections improves wiring density and serviceability. The result is safer maintenance and faster swap-outs during panel updates, especially in compact control cabinets. This fits applications in motor control centers and distribution boards where space is at a premium and reliability is non-negotiable. High interrupting capability supports demanding fault events. With a UL489 rating of 25 kA at 240 V and 2 poles in series for DC, the device can interrupt large fault currents without nuisance tripping. This translates into reduced downtime and improved system safety in heavy machinery and process lines. Rated insulation voltage of 690 V and operating voltage of 240 V AC / 250 V DC enables cross-application in mixed circuits. Designers can consolidate protection for both control circuitry and power feeds within a single device, simplifying panel architecture. This reduces component count and shortens installation times. TM release type TMF for precise thermal-magnetic protection ensures selective coordination with upstream devices. Short-Circuit Performance Level N provides predictable interruption performance under fault conditions. The 3P configuration further improves leg-to-leg balance and reduces false trips in three-phase networks. Compliance with RoHS and REACH, plus CMRT and TSCA declarations, minimizes regulatory risk and simplifies supplier qualification. Environmental information and packaging disposal guidance support sustainable practices in manufacturing and recycling programs. This ensures the product meets global standards for electronics and automation equipment. Mechanical footprint and mounting are straightforward with front terminals and standardized dimensions: 76.2 mm width, 130 mm height, and 60 mm depth, weight around 0.75 kg. Package details align with common ABB SACE mounting rails and enclosure cutouts, easing replacement and stock planning. The unit ships with documented data sheets and installation instructions for quick commissioning.
