ABB 1SDA069759R1 Moulded Case Circuit Breaker - UL
Part Number: 1SDA069759R1
Quick Summary
Moulded Case Circuit Breaker ABB 1SDA069759R1 provides reliable overcurrent protection for motor and switchgear panels. Engineers often face wiring complexity, slow commissioning, and regulatory compliance challenges when selecting protection devices. UL-listed, CE-declaration ready, and RoHS/REACH compliant, this unit supports global deployments across industrial sites. Its front-terminal design and compact 3P form factor deliver faster installation, easier maintenance, and predictable protection budgets, helping teams reduce downtime and total cost of ownership.
Product Information
Extended Description

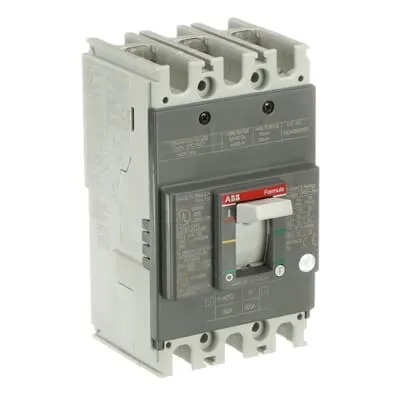

1SDA069759R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 60-600 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N060TW
EAN
8015644705183
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.75 kg
Package Level 1 Units
1 piece
Package Level 1 Width
136.5 mm
Package Level 1 Height
124 mm
Package Level 1 Depth / Length
110.5 mm
Package Level 1 Gross Weight
0.8 kg
Package Level 1 EAN
8015644705183
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
3P
Rated Current (In)
Main Circuit 60 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 III UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
The 3P front-terminal molded case breaker is engineered for straightforward wiring, reducing installation time and wiring errors while improving panel density and serviceability. The TMF thermal-magnetic release delivers precise coordination between overload and short-circuit protection, lowering nuisance trips and protecting critical loads with a 60 A rated current. Ui of 690 V and Uimp of 6 kV provide a robust insulation and surge withstand profile suitable for modern distribution panels, transformers, and motor feeders, translating into higher equipment availability. The device’s 0.75 kg weight and compact dimensions (76.2 mm W x 130 mm H x 60 mm D) simplify retrofits and new builds alike, while front-terminal access accelerates commissioning and future maintenance. RoHS and REACH declarations, CMRT, and TSCA support help meet global supply-chain and regulatory expectations, reducing risk in multi-site deployments. UL standards compliance and a UL interrupting rating of 25 kA at 240 V (10 kA at 250 V DC for 2 poles in series) provide a reliable safety margin for industrial protection schemes. This ABB solution is ideal for control panels, switchgear, and motor control centers where reliability, compliance, and ease of installation matter most.
