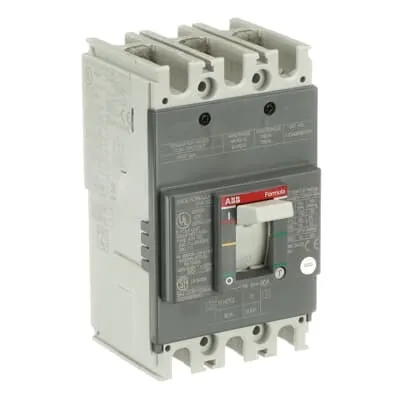

ABB 1SDA069761R1 Moulded Case Circuit Breaker - UL/CE
Part Number: 1SDA069761R1
Quick Summary
Moulded Case Circuit Breaker ABB 1SDA069761R1 protects industrial distribution panels from overload and short circuits. Engineers often struggle with wiring complexity and downtime during maintenance, which this unit helps mitigate with front terminals for quick connections and a thermomagnetic release for fast, reliable trips. The product carries CE conformity and UL certification for UL489 interrupting performance, plus RoHS/REACH compliance to meet modern environmental and regulatory demands. In ABB SACE Formula A1 family, it delivers consistent protection while enabling safer, more efficient panel design and easier procurement for capital projects in automation and process industries.
Product Information
Extended Description
1SDA069761R1 ABB: C.BREAKER FORMULA A1N 100 UL/CS A FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 80-800 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Environmental Information - Formula A1-A2 | Breakers - Packaging disposal information
Order Code US and Canada
A1N080TW
EAN
8015644705206
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.75 kg
Package Level 1 Units
1 piece
Package Level 1 Width
136.5 mm
Package Level 1 Height
124 mm
Package Level 1 Depth / Length
110.5 mm
Package Level 1 Gross Weight
0.8 kg
Package Level 1 EAN
8015644705206
Product Main Type
SACE FORMULA
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Number of Poles
3P
Rated Current (In)
Main Circuit 80 A
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Insulation Voltage (Ui)
690 V
Rated Operational Voltage
240 V AC | 250 V DC
Rated Uninterrupted Current (Iu)
100 A
Release
TMF
Release Type
TM
Short-Circuit Performance Level
N
Standards
UL
Sub-type
A1
Terminal Connection Type
Front
Interrupting Rating acc. to UL489
(240 V) 25 kA | (250 V DC) 2 Poles in Series 10 kA
Data Sheet, Technical Information
1SXU210022D0201
Declaration of Conformity - CE
EC Declaration of Conformity Formula DSA A1
Instructions and Manuals
Installation instructions FORMULA A1 III UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: Front-terminal, fixed three-pole design simplifies field wiring and reduces installation time, cutting labor costs and wiring errors in control panels common to assembly lines and process plants. Application: motor feeders and transformer protection where rapid, dependable trips are essential. Feature → Business Impact → Application: TMF thermomagnetic release provides reliable overload and short-circuit protection, improving uptime and reducing unplanned downtime in critical automation circuits. Application: main distribution boards in manufacturing facilities with demanding duty cycles. Feature → Business Impact → Application: 80 A rated current and 690 V insulation voltage support robust low-voltage protection for equipment across workshops, warehouses, and substations, enabling safer power distribution while minimizing nuisance tripping during startup. Feature → Business Impact → Application: 3P configuration with front terminals and UL489 interrupting ratings delivers consistent performance in mixed-load environments, supporting scalable panel architectures and easier replacement. Feature → Business Impact → Application: RoHS/REACH/CMRT and TSCA compliance streamline global sourcing, reduce regulatory risk, and simplify supplier qualification for multinational projects. Feature → Business Impact → Application: Product main type SACE Formula and installation manuals ensure compatibility with ABB SACE ecosystem, delivering predictable parts availability and streamlined maintenance planning.
Get a Quick Quote for a ABB 1SDA069761R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA069761R1?
Enquire Now
FAQs
This MCCB features front-terminal connections for straightforward wiring during panel assembly. Ensure terminals are clean and torqued to the manufacturer’s specification, then route conductors to minimize bending and heat buildup. The 3P design supports compact, accessible layouts, reducing service time during commissioning and routine maintenance.
It is a 3P device with main current rating of 80 A, rated insulation voltage 690 V, rated operational voltage 240 V AC / 250 V DC, and rated impulse withstand 6 kV. The UL489 interrupting rating is 25 kA at 240 V and 10 kA at 250 V (two-pole in series), ensuring robust protection for typical industrial loads.
Yes. The TMF thermomagnetic release provides reliable overload and short-circuit protection suitable for motor feeders and transformer protection in automation panels. Its front terminals simplify wiring, and its 3P configuration supports safe disconnection and quick isolation during maintenance.
The unit ships with a CE declaration of conformity and RoHS/REACH declarations. It also references CMRT for conflict minerals, TSCA compliance, and installation manuals. These documents support regulatory adherence, supplier qualification, and safe, compliant deployment in global projects.
Minimum order quantity is 1 piece. The EAN is 8015644705206, with packaging dimensions for Level 1 units at 136.5 mm W x 124 mm H x 110.5 mm D and a gross weight of 0.8 kg per unit; device net weight is 0.75 kg. These specs assist in budgeting and logistics planning.
