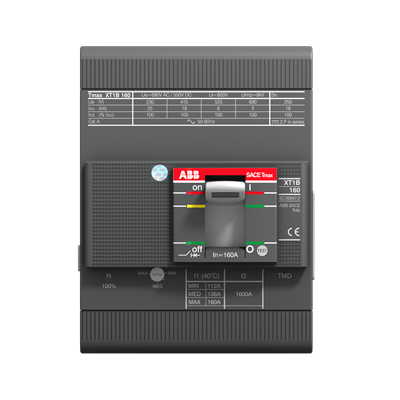

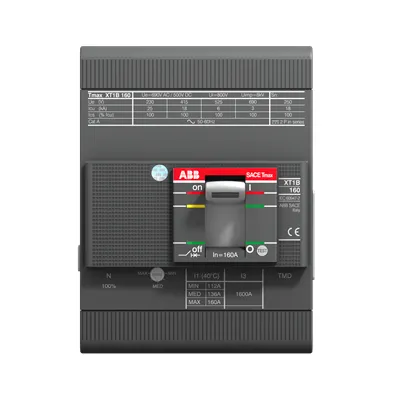

ABB 1SDA074652R1 Moulded Case Circuit Breaker - UL/CSA
Part Number: 1SDA074652R1
Quick Summary
ABB 1SDA074652R1 is a moulded case circuit breaker for protecting power distribution in industrial facilities. Engineers often struggle with coordinating protection, installation time, and regulatory compliance for front-terminal breakers. This XT1N 125 A device carries UL489/CSA certification and CE conformity, with TMF release and front terminals for reliable protection. By combining robust protection with easy installation and lifecycle recyclability, it supports asset reliability, reduced downtime, and cost-effective maintenance across industrial power networks.
Product Information
Extended Description
1SDA074652R1 ABB: C.BREAKER TMAX XT1N 125 UL/CSA FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 30-500 A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT1
Environmental Product Declaration - EPD
EPD Tmax XT XT1 (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.9 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT1NU4030AFF000XXX
EAN
8015644786298
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
101.6 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
128 mm
Package Level 1 Height
135 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Gross Weight
1.4 kg
Package Level 1 EAN
8015644786298
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable for Product Class
SACE Tmax XT
Version
F
CAD Dimensional Drawing
XT1 4p FIXED F
Connecting Capacity Main Circuit
Busbar 45.5 ... 80 mm²
Current Type
AC/DC
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
4P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 1.8 W
Rated Current (In)
30 A
Rated Instantaneous Short-Circuit Current Setting (Ii)
500 A
Rated Operational Voltage
600Y/347 V AC | 500 V DC
Rated Uninterrupted Current (Iu)
125 A
Rated Voltage (Ur)
600Y/347 V
Recommended Screw Driver
Main Circuit M6
Release
TMF
Release Type
TM
Setting Range
30 A
Short-Circuit Performance Level
N
Standards
UL489
Sub-type
XT1
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
Interrupting Rating acc. to UL489
(240 V AC) 50 kA | (480 V AC) 25 kA | (600Y / 347 V AC) 18 kA | (250 V DC) 2 Poles in Series 35 kA | (500 V DC) 4 Poles in Series Kind 35 kA
ATEX Certificate
No certification needed
CSA Certificate (Intrinsic Safe)
9AKK10103A3905
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT1
UL Certificate
1SDL000163R0111
VDE Certificate
No certification needed
Dimension Diagram
XT1 3p-4p fixed front terminals
Mechanical Drawings
XT1 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT1 UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: Front-terminal design simplifies wiring and reduces installation time, improving field productivity on crowded switchgear layouts and panelboards. This translates to faster commissioning in industrial facilities and lower labor costs during panel upgrades. Feature → Business Impact → Application: 4P XT1 configuration with TMF release delivers precise protection for multi-line feeders, enabling quick fault isolation in data centers, manufacturing lines, and process plants. Feature → Business Impact → Application: Rated 30 A with a 600Y/347 V operating voltage supports safe, scalable distribution in mixed AC/DC environments, aligning with industry standards for motor control centers and transformer protection. Feature → Business Impact → Application: Front-terminal bolt connections with 6 N·m torque ensure secure wiring that withstands vibration in industrial environments, reducing call-backs and maintenance overhead. Feature → Business Impact → Application: High electrical durability and defined short-circuit settings (Ii = 500 A) improve system reliability during transients, essential for critical infrastructure protection. Feature → Business Impact → Application: EcoSolutions and End Of Life guidance (55.9% recyclability per EN45555) support sustainability reporting and regulatory compliance while lowering total cost of ownership. Long-tail keywords addressed include UL489 breakers, SACE Tmax XT family compatibility, front-terminal MCCB, 4P TMF release, and 600Y/347 V operation, ensuring relevance for power distribution protection, panel design, and maintenance planning.
Get a Quick Quote for a ABB 1SDA074652R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA074652R1?
Enquire Now
FAQs
The ABB 1SDA074652R1 XT1N uses front-terminal connection with bolt-type terminals designed for a 6 N·m tightening torque, ensuring a secure, vibration-resistant interface suitable for panel-mounted installations and compact switchgear layouts.
It is a 4P device with a rated current of 30 A, rated voltage of 600Y/347 V AC (and 500 V DC), a rated uninterrupted current of 125 A, and a short-circuit setting Ii of 500 A. Opening time is about 30 ms with TMF release, fitting UL489/CSA expectations.
Yes. The device complies with UL489 and CSA CS22.2 standards, carries UL/CSA certification, and has a CE declaration of conformity, making it suitable for UL489/CSA protection schemes in North American and international installations.
ABB provides EcoSolutions data, End Of Life disassembly instructions, and an Environmental Product Declaration (EPD) for Tmax XT XT1, plus a recyclability rate of 55.9% per EN45555, supporting sustainability reporting and responsible disposal.
Install with front terminals using M6 main circuit screws, adhere to 6 N·m tightening torque, and connect busbar within 45.5–80 mm² range. Use the TMF release setting of 30 A and ensure compatibility with SACE Tmax XT XT1 product family for optimum protection.
