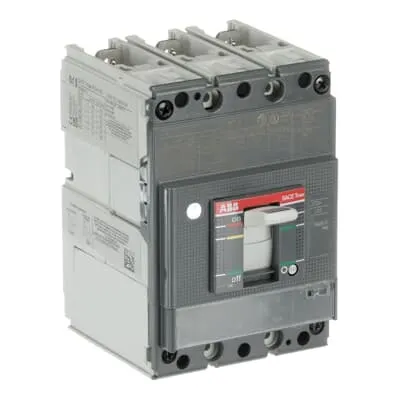

ABB 1SDA074797R1 Moulded Case Circuit Breaker - UL/CSA
Part Number: 1SDA074797R1
Quick Summary
ABB 1SDA074797R1 Moulded Case Circuit Breaker is a protection device for industrial power distribution. Engineers seek reliable, space-efficient protection that reduces unplanned downtime and simplifies maintenance. This XT2H model is UL489/CSA listed, with a CE declaration of conformity and RoHS/REACH compliance, underscoring safety and environmental responsibility. Featuring TMF release, front terminals, 3 poles, and a 70 A setting range, it supports scalable protection in demanding industrial environments while offering straightforward installation and service access.
Product Information
Extended Description
1SDA074797R1 ABB: C.BREAKER TMAX XT2H 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 70-700 A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT2 TM (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.70 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT2HU3070AFF000XXX
EAN
8015644787745
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
90 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
131 mm
Package Level 1 Height
212 mm
Package Level 1 Depth / Length
147 mm
Package Level 1 Gross Weight
1.2 kg
Package Level 1 EAN
8015644787745
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable for Product Class
SACE Tmax XT
Version
F
CAD Dimensional Drawing
XT2 3p FIXED F
Connecting Capacity Main Circuit
Busbar 32.5..100 mm²
Current Type
AC/DC
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 4.4 W
Rated Current (In)
70 A
Rated Instantaneous Short-Circuit Current Setting (Ii)
700 A
Rated Operational Voltage
600 V AC | 500 V DC
Rated Uninterrupted Current (Iu)
125 A
Rated Voltage (Ur)
600 V
Recommended Screw Driver
Main Circuit M6
Release
TMF
Release Type
TM
Setting Range
70 A
Short-Circuit Performance Level
H
Standards
UL489
Sub-type
XT2
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
Interrupting Rating acc. to UL489
(240 V AC) 150 kA | (480 V AC) 65 kA | (600 V AC) 25 kA | (250 V DC) 2 Poles in Series 65 kA | (500 V DC) 3 Poles in Series 65 kA
ATEX Certificate
No certification needed
CSA Certificate (Intrinsic Safe)
9AKK10103A3906
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
UL Certificate
1SDL000163R0112
VDE Certificate
No certification needed
Dimension Diagram
XT2 3p-4p fixed front terminals
Mechanical Drawings
XT2 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT2 UL | Release assembly XT2-XT4
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
The XT2H 125 TMF device combines a rugged 3P front-terminal design with a TMF release for fast, predictable interruption of fault currents, improving protection accuracy and reducing downtime during maintenance. This directly translates to better system availability in manufacturing lines and critical processes, while the 70 A setting range supports scalable protection across evolving load profiles. A 600 V operating voltage and 125 A Iu ensure reliable circuit control for medium-sized power distribution panels, and the 4.4 W per pole power loss figure helps engineers forecast cooling needs and energy efficiency. Front terminals and a 6 N·m tightening torque streamline installation and service, enabling safer, faster wiring in dense switchgear. Compatibility with the SACE Tmax XT family simplifies part sourcing and lifecycle planning, lowering total cost of ownership for panel builders and end users. The device also aligns with RoHS, REACH, and CMRT expectations, reinforcing compliant procurement and sustainable operations in regulated industries.
Get a Quick Quote for a ABB 1SDA074797R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA074797R1?
Enquire Now
FAQs
This 3P XT2H unit uses front terminals and a 6 N·m tightening torque, compatible with standard low-voltage panels and switchgear housings. Its front-terminal design simplifies wiring and allows straightforward replacement in existing MCCs, reducing retrofit complexity and downtime during maintenance or upgrades.
Rated current In is 70 A, Rated operational voltage Ur is 600 V (AC) / 500 V (DC), and the instantaneous short-circuit current setting Ii is 700 A. The device also supports Up to 125 A uninterrupted current (Iu) and UL489 compliance for intended low-voltage protection in industrial networks.
Yes. With 3P configuration, TMF release, and 70 A setting, the XT2H is well-suited for motor control centers and distribution panels where short-circuit protection and reliable protection coordination are required. Its fast trip characteristics help protect motors and feeders while minimizing nuisance trips in dynamic industrial loads.
The unit carries UL489 and CSA certifications, a CE Declaration of Conformity, and RoHS/REACH compliance. CMRT and TSCA declarations are also available, ensuring regulatory alignment and traceability for responsible sourcing and lifecycle management.
Electrical durability is rated at 120 cycles per hour with 8000 cycles overall, and mechanical durability at 240 cycles per hour with 25,000 cycles. This translates to longer intervals between maintenance and lower total cost of ownership, while the front-terminal design simplifies inspection, torque verification, and replacement in busy industrial environments.
