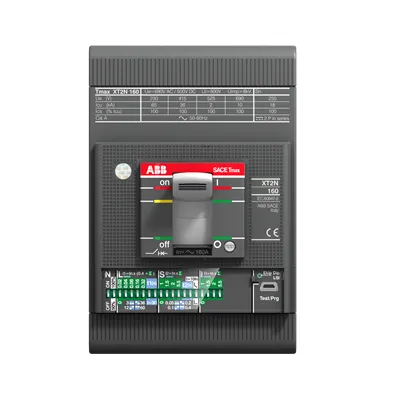

ABB 1SDA075020R1 Moulded Case Circuit Breaker XT2 - UL/CSA
Part Number: 1SDA075020R1
Quick Summary
ABB 1SDA075020R1 is a Moulded Case Circuit Breaker designed for overcurrent protection in power distribution networks. Engineers often struggle with selectivity and nuisance trips in legacy protection devices, making robust, easy-to-coordinate protection essential. This XT2 device carries UL489 and CSA certifications, along with a CE declaration of conformity, ensuring regulatory compliance and field acceptance. By aligning with the SACE Tmax XT family, it delivers reliable protection for transformers and motor feeders while offering straightforward installation and lifecycle support for panel builders and maintenance teams.
Product Information
Extended Description
1SDA075020R1 ABB: C.BREAKER TMAX XT2H 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSIG R 10 A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 ELT
Environmental Product Declaration - EPD
EPD Tmax XT XT2 ELT (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.70 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT2HU3010GFF000XXX
EAN
8015644789978
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
90 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
130 mm
Package Level 1 Height
208 mm
Package Level 1 Depth / Length
145 mm
Package Level 1 Gross Weight
1.22 kg
Package Level 1 EAN
8015644789978
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable for Product Class
SACE Tmax XT
Version
F
CAD Dimensional Drawing
XT2 3p FIXED F
Connecting Capacity Main Circuit
Busbar 32.5..100 mm²
Current Type
AC
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 0.10 W
Rated Current (In)
10 A
Rated Frequency (f)
50/60 Hz
Rated Insulation Voltage (Ui)
1000 V AC
Rated Operational Voltage
690 V AC
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
690 V AC
Recommended Screw Driver
Main Circuit M6
Release
Ekip LSIG
Release Type
EL
Short-Circuit Performance Level
H
Standards
UL489
Sub-type
XT2
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
Interrupting Rating acc. to UL489
(240 V AC) 150 A | (480 V AC) 65 A | (600 V AC) 25 A
ATEX Certificate
No certification needed
CSA Certificate (Intrinsic Safe)
9AKK10103A3906
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
UL Certificate
1SDL000163R0112
VDE Certificate
No certification needed
Dimension Diagram
XT2 3p-4p fixed front terminals
Mechanical Drawings
XT2 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT2 UL | Ekip C Dip LSI, Ekip C Dip LSIG and LIG XT2-XT4
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: 3P design with 10 A rated current and 690 V AC operating voltage. Business Impact: Enables safe, compact protection for small feeders while accommodating high-energy industrial environments. Application: Ideal for distribution panels and machinery feeds where space is at a premium. Feature: Front terminal connections with 6 N·m tightening torque. Business Impact: Reduces installation time and improves field reliability with secure, service-friendly wiring. Application: Quick-wiring in control cabinets and MCCs. Feature: Busbar connection capacity 32.5 to 100 mm². Business Impact: Broad compatibility lowers ductwork rework and simplifies panel design integration. Application: Main circuit connections in transformer and generator protection schemes. Feature: Rated insulation voltage 1000 V and rated operational voltage 690 V AC. Business Impact: Supports diverse industrial networks and ensures safe clearance in high-energy environments. Application: Distribution boards in process and power systems. Feature: Ekip LSIG release and H short-circuit performance level. Business Impact: Fast, selective tripping with reduced arc energy and improved system resilience. Application: Protective relaying in critical loads and feeder circuits. Feature: Low power loss per pole (0.10 W). Business Impact: Lower heat generation extends component life and reduces cooling requirements. Application: Continuous operation in dense switchgear layouts; energy-conscious installations.
Get a Quick Quote for a ABB 1SDA075020R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA075020R1?
Enquire Now
FAQs
This 3P XT2 breaker is designed for low-voltage power distribution with front-terminal connections and a 32.5 to 100 mm² busbar range, making it suitable for MCCs, transformer feeders, and distribution panels. Its compact footprint and ten-amp rating fit compact control panels while maintaining robust protection for critical loads.
The unit is UL489 compliant, CSA certified (Intrinsic Safe), and has a CE Declaration of Conformity for Tmax XT2. These certifications support regulatory compliance, field acceptance, and safe integration into multinational projects.
Rated current is 10 A, rated operational voltage is 690 V AC, and rated insulation voltage is 1000 V AC. It supports 50/60 Hz systems and uses a front-terminal, bolt connection with a tightening torque of 6 N·m.
Front terminals enable easier wiring access in dense panels, reduce installation time, and simplify future maintenance. The 6 N·m tightening torque ensures secure connections, improving reliability in vibration-prone industrial environments.
Yes. The ABB Tmax XT XT2 family is designed for protection of transformers, generators, and installation feeders. Its commensurate fault current handling (UL489 ratings) and modular XT2 features provide reliable, compliant protection in critical power distribution scenarios.
