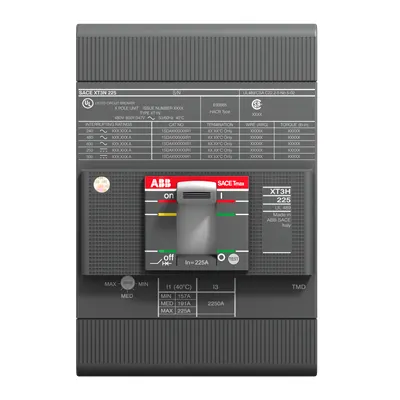

ABB 1SDA075117R1 SACE Tmax XT Moulded Case Breaker - UL/CSA
Part Number: 1SDA075117R1
Quick Summary
ABB 1SDA075117R1 SACE Tmax XT moulded case breaker provides precise overcurrent protection for 3P power distribution and motor circuits in industrial environments. When matching breakers to complex buses and varying loads, engineers risk mis-sizing and downtime. This device offers a 200 A rated current with a 2000 A short-circuit setting and fast 30 ms opening times, reducing nuisance trips. It carries UL489/CSA approvals and a CE Declaration of Conformity, plus environmental credentials such as an EPD for Tmax XT XT3 and a recyclability rate of 56.6% per EN45555. By combining robust compliance with front-terminal installation and compact 105x150x70 mm dimensions, it supports faster commissioning, lower installation costs, and easier end-of-life planning.
Product Information
Extended Description
1SDA075117R1 ABB: XT3N 225 TMF 200-2000 3p F F UL/CSA
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT3
Environmental Product Declaration - EPD
EPD Tmax XT XT3 (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 56.6 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
b0a44046-a39c-4d6f-b07e-9ef7a041852f Italy (IT)
Simplified SCIP
5f912529-7a51-454e-aaa6-c9e681ebbb78 Germany (DE) | 03b8e8bd-f3d1-4792-bbf3-3441894a5559 Germany (DE) | f7bab149-d0b8-4be2-9c0b-b88c517ebf99 Germany (DE) | 27b8b361-3cff-4ea1-a080-00a4aafa140d France (FR) | 766eaab7-ff27-43bc-881b-62a5efe04de7 Netherlands (NL) | 449c0700-55c1-49b4-9819-42d7b9790d1d Spain (ES) | 1d598321-ee87-4a8e-8b30-fabe6df2d952 Netherlands (NL) | 407f7d20-4d88-471f-bebb-6b2cbe192a4c Netherlands (NL) | 3bd93a5c-e26e-4c6d-be96-62c0c5b62962 Norway (NO) | 83c14dde-172d-4713-ad9b-0dd97d3904a5 Finland (FI) | 3ffc7717-37ed-41c9-a08b-7f3ec82bd2ef Poland (PL) | 4f2b5f61-3687-4524-a37e-d1063ebd50db Netherlands (NL) | 75ba3cf8-611b-4ccd-b879-0bb06456b6b0 Netherlands (NL) | f8425109-b9a3-4e1e-abbf-c953c4d97c3a Estonia (EE) | 0387d792-bf51-410e-b37e-a37fef8314e1 Germany (DE) | bb7e78a3-57c6-4bbb-a6dc-4fe8c86c2288 Denmark (DK) | c44d45db-e5f5-4a53-a8fd-54d0d94182e8 Germany (DE) | 05cd9055-ca83-45f9-95f8-827518df4943 Croatia (HR) | 4702d9aa-9d5d-442a-960a-d82266dd68e6 Czech Republic (CZ) | 470fedc9-0621-4fbd-ab2e-0f34fbb62838 Poland (PL) | 1e81f5fd-10df-4125-98f3-9e037185a58b Greece (GR) | f614ebda-8613-469e-bbd8-a1c7eed4ce3c Portugal (PT) | ed02b6f0-c38d-43bb-be7a-e140946a30e5 Bulgaria (BG) | ac2b4031-96a1-4305-80af-574481e4ec99 Sweden (SE) | 94f94d91-04f8-4871-a170-ff223cd86961 Poland (PL) | 3d61ae08-6d38-478d-8f80-77492926049e France (FR) | 046d6981-20d0-434e-a4d9-36fac807e788 Sweden (SE)
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT3NU3200AFF000XXX
EAN
8015644790943
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
105 mm
Product Net Height
150 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
155 mm
Package Level 1 Height
190 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8015644790943
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable for Product Class
SACE Tmax XT
Version
F
CAD Dimensional Drawing
XT3 3p FIXED F
Connecting Capacity Main Circuit
Busbar 85..192 mm²
Current Type
AC/DC
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 13.2 W
Rated Current (In)
200 A
Rated Instantaneous Short-Circuit Current Setting (Ii)
2000 A
Rated Operational Voltage
600Y/347 V AC | 500 V DC
Rated Uninterrupted Current (Iu)
225 A
Rated Voltage (Ur)
600Y/347 V
Recommended Screw Driver
Main Circuit M8
Release
TMF
Release Type
TM
Setting Range
200 A
Short-Circuit Performance Level
N
Standards
UL489
Sub-type
XT3
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
8 N·m
Interrupting Rating acc. to UL489
(240 V AC) 50 kA | (480 V AC) 25 kA | (600Y / 347 V AC) 10 kA | (250 V DC) 2 Poles in Series 25 kA | (500 V DC) 3 Poles in Series 25 kA
ATEX Certificate
No certification needed
CSA Certificate (Intrinsic Safe)
9AKK10103A3907
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT3
UL Certificate
1SDL000163R0113
VDE Certificate
No certification needed
Dimension Diagram
XT3 3p-4p fixed front terminals
Mechanical Drawings
XT3 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT3 UL
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: This 3P 200 A rated current supports reliable protection for demanding motor and distribution circuits, reducing unplanned downtime and extending equipment life in manufacturing lines and process plants. Feature → Application: UL489/CSA certifications provide proven safety margins and regulatory alignment for multinational projects, simplifying procurement and acceptance testing in panel boards and switchgear assemblies. Feature → Business Impact → Application: Front-terminal connections with front-access wiring and a tightening torque of 8 N·m enable faster installation and maintenance, improving on-site productivity during retrofit and new-build projects. Feature → Application: Rated for 600Y/347 V AC and 500 V DC, with Ii = 2000 A and In = 200 A, this breaker supports mixed AC/DC control schemes in machine control centers and distribution panels, enhancing system compatibility. Feature → Business Impact → Application: Environmental and compliance data (EPD, RoHS/REACH declarations, SCIP, CMRT) support sustainable sourcing and regulatory reporting, reducing life-cycle risk for procurement and corporate ESG goals. Feature → Application: 25 kA interrupting ratings in DC and high AC ratings provide resilience against short circuits in high-energy environments, delivering predictable protection in critical infrastructure and transformer feeder circuits.
Get a Quick Quote for a ABB 1SDA075117R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA075117R1?
Enquire Now
FAQs
Yes. The ABB 1SDA075117R1 XT3N 225 TMF 3P breaker uses front-terminal connections designed for quick wiring access. It supports busbar ranges from 85 to 192 mm² and requires an 8 N·m tightening torque. This configuration simplifies retrofit installations, minimizes enclosure modifications, and reduces commissioning time while maintaining secure, vibration-resistant connections in panel boards.
The device is rated for 200 A nominal current (In) with a 2000 A short-circuit instantaneous setting (Ii). It operates at 600Y/347 V AC and 500 V DC, with a 3P configuration. Interrupting ratings per UL489 include high values at various voltages (e.g., 50 kA at 240 V AC, 25 kA at 480 V AC). These ratings ensure robust protection for motors, transformers, and distribution panels in industrial sites.
For compliance, reference UL489-based safety data (UL certificate 1SDL000163R0113) and CSA (9AKK10103A3907) where applicable, along with the EC Declaration of Conformity for Tmax XT3. European customers also benefit from the CE designation and the product’s environmental data (EPD) and recyclability credentials per EN45555, supporting sustainability reporting and supplier audits.
Yes. RoHS and REACH declarations are provided for ABB Sace circuit breakers, and the product includes an Environmental Product Declaration (EPD) for Tmax XT XT3. Recyclability is cited at 56.6% per EN45555, helping buyers meet sustainability targets and supplier qualification criteria while maintaining compliance throughout product life cycle.
Disassembly instructions and end-of-life guidance for Tmax XT XT3 are available, supporting proper decommissioning and recycling. Plan for front-terminal maintenance checks, verify tightening torque (8 N·m), and reference the provided disassembly guidance to optimize refurbishment or disposal. This approach minimizes environmental impact and aligns with corporate sustainability programs.
