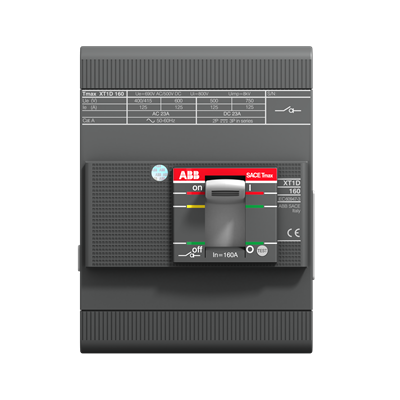

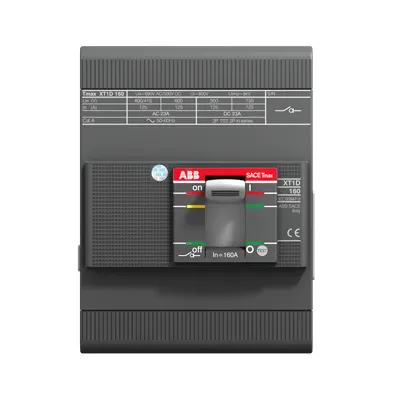

ABB 1SDA075611R1 Switch Disconnector - UL489
Part Number: 1SDA075611R1
Quick Summary
ABB 1SDA075611R1 Switch Disconnector provides safe isolation for four-pole SACE Tmax XT installations. Engineers often face space constraints, front-terminal wiring challenges, and strict UL/CSA compliance requirements in switchgear installations. This model carries UL489 and CSA certifications, a CE declaration, and RoHS compliance to support regulatory alignment and sustainable design. Designed for easy installation and long-term reliability, it helps reduce maintenance costs and downtime in critical power distribution. It integrates with SACE Tmax XT systems, delivering consistent latch action, predictable opening behavior, and enhanced safety margins in demanding industrial environments. The combination of ABB EcoSolutions features and recyclable design aligns with modern plant sustainability goals.
Product Information
Extended Description
1SDA075611R1 ABB: SWITCH-DISCONNECTOR TMAX XT1N-D 125 UL/CSA UL/CSA FIXED FOUR-POLE WITH FRONT TERMINALS Im 1250A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT1
Environmental Product Declaration - EPD
EPD Tmax XT XT1 (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.9 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT1NU4125DFF000XXX
EAN
8015644795887
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
101.6 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
128 mm
Package Level 1 Height
135 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Gross Weight
1.4 kg
Package Level 1 EAN
8015644795887
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Switch Disconnector
Suitable for Product Class
SACE Tmax XT
Version
F
CAD Dimensional Drawing
XT1 4p FIXED F
Connecting Capacity Main Circuit
Busbar 45.5 ... 80 mm²
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
4P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 10.7 W
Rated Operational Voltage
600Y/347 V AC | 500 V DC
Rated Uninterrupted Current (Iu)
125 A
Recommended Screw Driver
Main Circuit M6
Short-Circuit Performance Level
N
Standards
UL489
Sub-type
XT1
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
Interrupting Rating acc. to UL489
(240 V AC) 50 kA | (480 V AC) 25 kA | (600Y / 347 V AC) 18 kA | (250 V DC) 2 Poles in Series 35 kA | (500 V DC) 4 Poles in Series Kind 35 kA
ATEX Certificate
No certification needed
CSA Certificate (Intrinsic Safe)
9AKK10103A3905
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT1
UL Certificate
9AKK107680A7755
VDE Certificate
No certification needed
Dimension Diagram
XT1 3p-4p fixed front terminals
Mechanical Drawings
XT1 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT1 UL
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371403
Feature → Four-pole XT1 front-terminal design reduces wiring complexity and accelerates panel assembly, delivering measurable time savings during commissioning and fewer field wiring errors. Business Impact → Faster project turnover and lower labor costs; Application → Suitable for distribution boards and motor control centers in harsh industrial environments. Feature → Rated Operational Voltage of 600Y/347 VAC and 500 V DC with 125 A Iu; Business Impact → Higher fault tolerance and compatibility with diverse DC and AC circuits, enabling safer, centralized protection. Application → Industrial power distribution and automation panels. Feature → Front terminal, bolt connection with 6 N·m tightening torque; Business Impact → Robust, vibration-resistant connections that maintain performance in demanding conditions; Application → Tight, reliable wiring on SACE Tmax XT installations. Feature → Low power loss of 10.7 W per pole and compact footprint (101.6 mm x 130 mm x 70 mm); Business Impact → Reduced heat generation and energy footprint in control gear; Application → Space-constrained switchgear. Feature → Compliance and sustainability suite (UL489, CSA, CE, RoHS, EPD, EN45555 recyclability 55.9%); Business Impact → Streamlined regulatory adherence and responsible end-of-life handling; Application → Green manufacturing and compliant plant modernization. Feature → End-of-Life and disassembly instructions provided; Business Impact → Easier disposal and recycling alignment with corporate sustainability targets; Application → OEM service and refurbishment planning.
Get a Quick Quote for a ABB 1SDA075611R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA075611R1?
Enquire Now
FAQs
This four-pole XT1 switch disconnector is designed for SACE Tmax XT systems and is ideal for distribution boards and motor control centers where safe isolation and front-terminal wiring are required in challenging industrial environments.
Key ratings include Rated Operational Voltage of 600Y/347 VAC and 500 V DC, a Rated Uninterrupted Current of 125 A, front-terminal bolt connections, and a 30 ms opening time. It complies with UL489 and CSA standards for reliable performance in demanding applications.
The model carries UL489 and CSA certifications, a CE Declaration of Conformity, RoHS compliance, an Environmental Product Declaration (EPD) for Tmax XT XT1, and a recyclability rating of 55.9% per EN45555, supporting regulatory alignment and sustainability goals.
Dimensions are 101.6 mm width, 130 mm height, and 70 mm depth with a weight of 1.4 kg. It features front terminal connections (bolt type) with a tightening torque of 6 N·m and requires a Main Circuit M6 screwdriver for installation.
Disassembly instructions for End Of Life Tmax XT XT1 are provided, along with packaging disposal guidance. The product supports sustainability targets via a 55.9% recyclability rate and RoHS/CMRT compliance, with order details like minimum quantity (1 piece) and US/Canada order code available for procurement and service planning.
