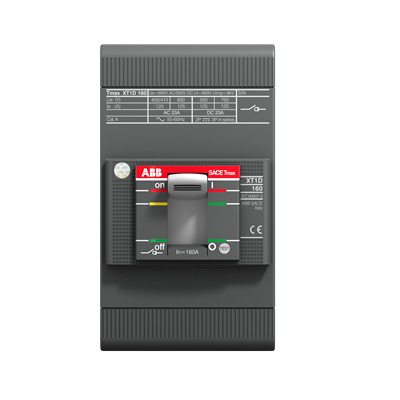

ABB 1SDA075614R1 Switch Disconnector - UL/CSA Tmax XT
Part Number: 1SDA075614R1
Quick Summary
ABB 1SDA075614R1 Switch Disconnector is a three-pole XT1 device designed for safe isolation in low-voltage switchgear. Engineers often contend with tight panel space and difficult front-terminal access, making wiring and servicing cumbersome; this model mitigates those challenges with front terminals and a compact footprint. It is certified to UL489 and CSA with a CE declaration, delivering confidence across North American and European installations. Designed for industrial control panels and automation lines, it provides reliable protection with installation efficiency and long-term service support.
Product Information
Extended Description
1SDA075614R1 ABB: SWITCH-DISCONNECTOR TMAX XT1H-D 125 UL/CSA UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS Im 1250A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT1
Environmental Product Declaration - EPD
EPD Tmax XT XT1 (IT)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.9 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
XT1HU3125DFF000XXX
EAN
8015644795917
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
128 mm
Package Level 1 Height
135 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8015644795917
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Switch Disconnector
Suitable for Product Class
SACE Tmax XT
Version
F
CAD Dimensional Drawing
XT1 3p FIXED F
Connecting Capacity Main Circuit
Busbar 45.5 ... 80 mm²
Electrical Durability
120 cycles per hour | 8000 cycle
Mechanical Durability
240 cycles per hour | 25000 cycle
Number of Poles
3P
Opening Time
CB with SOR 30 ms | CB with UVR 30 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 10.7 W
Rated Operational Voltage
600Y/347 V AC | 500 V DC
Rated Uninterrupted Current (Iu)
125 A
Recommended Screw Driver
Main Circuit M6
Short-Circuit Performance Level
H
Standards
UL489
Sub-type
XT1
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
Interrupting Rating acc. to UL489
(240 V AC) 100 kA | (480 V AC) 65 kA | (600Y / 347 V AC) 25 kA | (250 V DC) 2 Poles in Series 50 kA | (500 V DC) 4 Poles in Series Kind 50 kA
ATEX Certificate
No certification needed
CSA Certificate (Intrinsic Safe)
9AKK10103A3905
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT1
UL Certificate
9AKK107680A7755
VDE Certificate
No certification needed
Dimension Diagram
XT1 3p-4p fixed front terminals
Mechanical Drawings
XT1 3p-4p fixed front terminals
Wiring Diagram
Circuit diagram for XT1, XT2, XT3 and XT4
Instructions and Manuals
Installation instructions XT1 UL
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
IDEA Granular Category Code (IGCC)
4927 >> Molded case circuit breakers
Object Classification Code
Q
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371403
Feature → Business Impact → Application: Front-terminal 3P construction enables faster panel wiring and clearer fault tracing in compact switchgear, reducing installation time and field labor while increasing reliability in process-control cabinets. Feature → Business Impact → Application: UL489/CSA ratings combined with 600Y/347 VAC and 125 A Iu ensure safe operation for motor controls and automated lines, minimizing downtime and warranty costs in manufacturing facilities. Feature → Business Impact → Application: Dimensions of 76.2 mm W × 130 mm H × 70 mm D and a weight of 1.1 kg support tight spaces and easier handling during maintenance in heavy industry environments. Feature → Business Impact → Application: Front terminal connections with M6 screw access simplify assembly across multiple panels and improve serviceability in evolving automation architectures. Feature → Business Impact → Application: Disassembly instructions and ECO-focused documentation from ABB EcoSolutions help in end-of-life planning, waste reduction, and compliance reporting for sustainable manufacturing. Feature → Business Impact → Application: Compliance with EN45555 recyclability targets and environmental declarations supports customers pursuing circular economy goals while maintaining safety standards in food, chemical, or packaging lines.
Get a Quick Quote for a ABB 1SDA075614R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA075614R1?
Enquire Now
FAQs
Confirm 3P front-terminal mounting with a 6 N·m tightening torque and M6 main-circuit driver, ensuring the panel has front-access terminals and adequate space for the XT1 footprint. Verify the enclosure supports 600Y/347 VAC and that the device can be integrated into Tmax XT control schemes without altering busbar layouts.
Key specs include Rated Operational Voltage 600Y/347 VAC or 500 V DC, Rated Uninterrupted Current (Iu) 125 A, and a short-circuit rating aligned with UL489 standards. The device provides 3P switching, 10.7 W power loss per pole, and a front-terminal connection to simplify wiring and monitoring in control panels.
Yes. The product is part of the Tmax XT family and carries XT1 sub-type characteristics with front terminals, designed for integrated protection in automation panels. It adheres to UL489 and CSA requirements and offers compatibility with standard Tmax XT components for streamlined panel design.
The device is certified to UL489, with a UL certificate, CSA certification, and a CE Declaration of Conformity. ABB provides additional declarations including REACH/RoHS compliance and environmental disclosures supporting sustainability reporting and regulatory compliance.
Expect reduced wiring time due to front-terminal access, easier servicing with clear fault tracing in compact panels, and improved reliability from UL489/CSA-compliant protection. The 3P XT1 design supports consistent performance across automation lines, lowering downtime costs and contributing to a favorable total cost of ownership.
