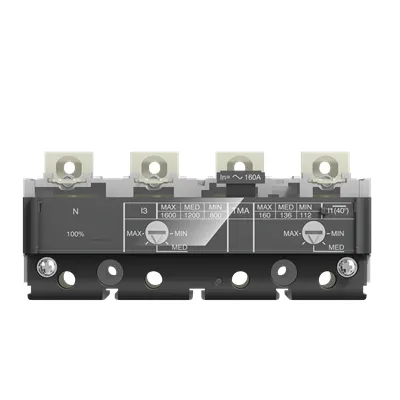

ABB 1SDA075661R1 Accessory - UL/CSA XT2 TMF 70-700
Part Number: 1SDA075661R1
Quick Summary
ABB 1SDA075661R1 is an accessory for Tmax XT circuits that adds a 4-pole TMF option to the XT2 family. Engineers often struggle with field replacements that disrupt panel wiring or risk non-compliance when integrating auxiliary components. This part carries UL489 and CSA certifications, RoHS declarations, CMRT, TSCA, and CE documentation, providing regulatory confidence in regulated environments. With ABB EcoSolutions packaging and a 70 A rated current, it supports reliable power distribution while helping reduce downtime and stock-keeping complexity. The result is streamlined installation, improved traceability, and safer, compliant panel assemblies for industrial automation projects.
Product Information
Extended Description
1SDA075661R1 ABB: TMF 70-700 4p F F XT2 4p UL/CSA
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8015644796389
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
145 mm
Package Level 1 Height
75 mm
Package Level 1 Depth / Length
95 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8015644796389
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT2
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
4P
Order Multiple
1 piece
Rated Current (In)
70 A
Release
TMF
Release Type
TM
Standards
UL489
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT2-XT4
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Four-pole configuration designed for XT2 power distribution. Business Impact: Ensures synchronized disconnection across all poles, reducing the risk of arc faults and improving panel safety. Application: Suitable for SACE Tmax XT installations in manufacturing lines where multi-pole protection is required. Feature: Loose or configurable installation options. Business Impact: Offers flexible mounting and wiring options in tight control panels, enabling faster commissioning and easier field retrofits. Application: Ideal for retrofit projects in existing XT2-based systems where space is constrained. Feature: Front-terminal connection type. Business Impact: Simplifies wiring during installation, minimizes installation errors, and shortens panel downtime. Application: Effective in switchgear cabinets with front-access wiring routes. Feature: UL489 and CSA compliance with RoHS, CMRT, TSCA declarations. Business Impact: Ensures regulatory compliance and sustainability, reducing risk of non-conformant shipments and recalls. Application: Critical for industries with strict electrical safety and Responsible Sourcing requirements. Feature: Compatibility with Tmax XT family and XT2, with 70 A nominal current. Business Impact: Reduces spare parts diversity and training needs, improving procurement efficiency and maintenance planning. Application: Fits standard ABB Tmax XT installations, enabling consistent service and support across sites.
Get a Quick Quote for a ABB 1SDA075661R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA075661R1?
Enquire Now
FAQs
The 1SDA075661R1 is designed as an XT accessory for Tmax XT, specifically compatible with XT2 configurations. It uses a 4-pole, front-terminal connection and supports a 70 A rated current, aligning with standard XT2 installation practices to ensure reliable integration with existing breakers and panels.
Key specs include four poles, 70 A nominal current, TMF release, and UL489/CSA standards. It is RoHS compliant, accompanied by REACH and CMRT declarations, TSCA certification, and CE documentation, ensuring compliance across many global markets.
Yes. The device meets UL489 and CSA CS22.2 requirements for low-voltage molded case breakers, is RoHS compliant, and provides environmental and regulatory declarations (EPD, CMRT, TSCA). This makes it suitable for regulated industrial environments where traceability and sustainability matter.
Opt for a loose or configurable configuration with front-terminal mounting to simplify wiring. Ensure compatibility with XT2 and SACE Tmax XT classes, verify packaging data (EAN 8015644796389), and observe the 1-piece per box packaging to streamline stocking and minimize miscounts during refits.
Using this ABB accessory reduces panel downtime through quicker assembly and reliable four-pole performance, lowers risk of non-compliance due to certified UL/CSA materials, and simplifies procurement with standardized XT2 compatibility. The RoHS/CMRT/TSCA declarations support sustainable sourcing and regulatory readiness for audits.
