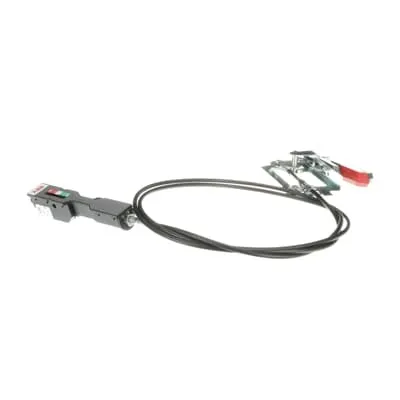

ABB 1SDA080345R1 Accessory - UL/CSA XT4 Flange Handle
Part Number: 1SDA080345R1
Quick Summary
ABB 1SDA080345R1 is an XT4 flange handle accessory for Tmax XT circuit breakers, enabling secure manual operation. In tight spaces and demanding environments, unreliable handles can cause downtime and misoperation; this design addresses alignment accuracy and durable operation. It complies with UL and CSA standards for low-voltage molded case circuit breakers, supports CE conformity, and is categorized in ETIM EC000229 for interoperability. As a Tmax XT accessory, it streamlines installation and maintenance, delivering faster panel commissioning and a safer, more reliable switching experience for your automation workflows.
Product Information
Extended Description
1SDA080345R1 ABB: XT4 FLANGE HANDLE, MECH, 10 FT CBL
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT4N12FLHDL10
EAN
8015644868741
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.78 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
125 mm
Package Level 1 Height
120 mm
Package Level 1 Depth / Length
485 mm
Package Level 1 Gross Weight
0.78 kg
Package Level 1 EAN
8015644868741
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT4
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Remarks
ATLAS
Standards
UL
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Flange handle - XT1-XT2-XT3-XT4 three poles
ETIM 8
EC000229 - Handle for power circuit breaker
ETIM 9
EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)
3038 >> Handles or knobs
UNSPSC
31162801
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370414
