ABB 1SDA100331R1 Accessory - Hi-Touch LSI IEC60947-2
Part Number: 1SDA100331R1
Quick Summary
ABB 1SDA100331R1 Accessory enables Ekip Hi-Touch LSI remote trip signaling for 4-pole Tmax XT4 circuits. This accessory helps engineers prevent mis-trips and unplanned downtime by coordinating precise release commands. Certified to IEC 60947-2 and aligned with RoHS, CMRT and TSCA declarations, it supports compliant procurement. Designed for XT4 use, it integrates easily with existing Tmax XT accessories, reducing installation time and boosting system reliability. In practice, this 160 A, four-pole release supports today’s demand for safer, more predictable protection schemes. The product's packaging and weight support straightforward logistics in distribution and field service. With MOQ of one piece and clear EAN, procurement is predictable and scalable for projects.
Product Information
Extended Description

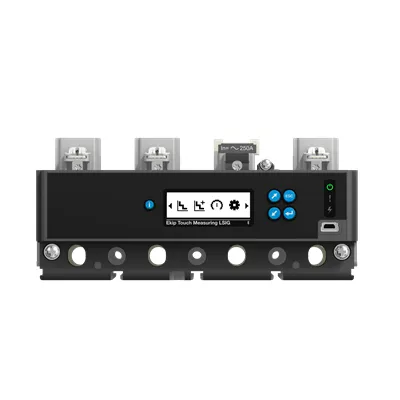

1SDA100331R1 ABB: SOLID-STATE RELEASE FOUR-POLE IN AC EKIP HI-TOUCH LSI R 160 XT2
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
E-Number (Norway)
4380203
EAN
8056221004084
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
110 mm
Package Level 1 Height
100 mm
Package Level 1 Depth / Length
150 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8056221004084
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT4
Configuration Type
Loose or configurable
Current Type
AC
Number of Poles
4P
Order Multiple
1 piece
Rated Current (In)
160 A
Release
Ekip Hi-Touch LSI
Release Type
EL
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Operation and maintenance manual for Ekip Touch Trip Units for SACE Tmax XT2-XT4
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Solid-state four-pole release offers fast, wear-free operation across all poles. Business impact: reduces mechanical wear and maintenance intervals while improving trip reliability, particularly in high-cycle XT4 applications. Application: ideal for heavy-duty Tmax XT panels where protection clarity and uptime are mission-critical, ensuring synchronized release across four poles even under fluctuating load conditions. This solid-state approach also minimizes arcing wear during frequent switching. Feature: Ekip Hi-Touch LSI integration provides accurate trip signaling with both local and remote control options. Business impact: improves protection visibility, speeds fault isolation, and reduces diagnostic time in complex switchgear installations. Application: couples seamlessly to Tmax XT accessories, supporting scalable protection architectures across manufacturing floors or data centers. Field technicians appreciate the compact footprint that aligns with standard 4P configurations. Feature: Configuration options are loose or configurable, with explicit XT4 compatibility. Business impact: reduces engineering time and risk of mis-wiring, enabling fast field deployment and more predictable protection schemes. Application: ideal for retrofit projects or multi-panel installations where flexibility in wiring and mounting layout delivers measurable time savings. Compatibility with XT4 means fewer adapters and spare parts in stock. Feature: RoHS, CMRT, TSCA, and CE declarations are supported. Business impact: reduces supplier risk, streamlines audits, and supports responsible sourcing. Application: ideal for regulated environments in Europe and North America, where traceability and regulatory alignment are critical for procurement and maintenance planning. Traceability labels and batch-level documentation support internal audits and recalls. Feature: Clear documentation, including operation and maintenance manuals, and packaging details are provided. Business impact: speeds onboarding for technicians, improves field service readiness, and simplifies stock management with standardized EAN and packaging data. Application: supports efficient procurement, predictable lead times, and reliable shipping for ABB SACE Tmax XT accessories. Packaging is designed for recyclability, helping minimize waste in maintenance programs.
Get a Quick Quote for a ABB 1SDA100331R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA100331R1?
Enquire Now
FAQs
To install the ABB 1SDA100331R1 Accessory with Tmax XT4, first confirm XT4 suitability, then mount the four-pole unit in the circuit-breaker assembly according to the Ekip Hi-Touch LSI installation manual. Connect the control wiring per the wiring diagram, select loose or configurable configuration, and perform a functional test to verify correct trip signaling under simulated conditions.
Key specs include a rated current of 160 A, four poles (4P), AC current type, and compatibility with Tmax XT4. It complies with IEC 60947-2 and carries RoHS, CMRT, and TSCA declarations. The unit weighs about 1 kg and is intended for use with 8056221004084 EAN-marked packaging.
Yes. The 1SDA100331R1 is explicitly listed as Suitable For XT4 and is designed as an accessory within the Tmax XT family. Its four-pole, 160 A release is intended to integrate with Tmax XT4 protection schemes, providing a cohesive upgrade path for XT4 installations and compatible XT accessories.
The accessory includes CE declaration documentation, RoHS information, CMRT, and TSCA declarations. It is supported by the SACE Tmax XT IEC technical characteristics data sheet and an operation and maintenance manual for Ekip Touch Trip Units. ETIM classifications and WEEE category information are also provided for procurement and audits.
The solid-state Hi-Touch LSI release reduces mechanical wear and arcing, leading to lower maintenance frequency and reduced downtime. Compatible XT4 integration simplifies commissioning and spare-part planning, delivering faster return on investment through improved protection reliability and simpler field service.
