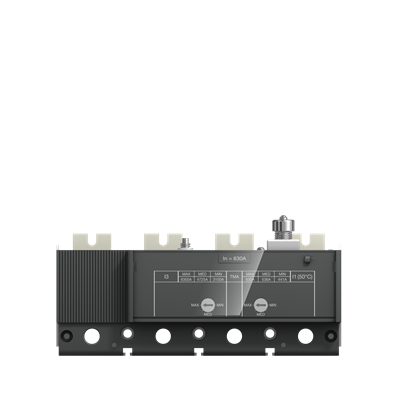

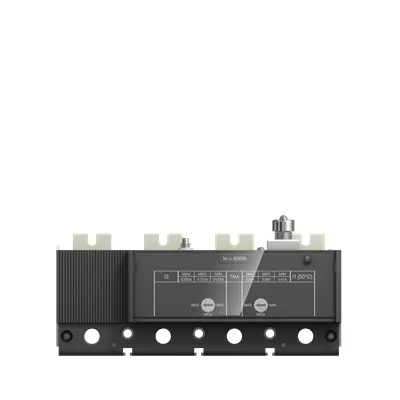

ABB 1SDA100695R1 Accessory - XT5
Part Number: 1SDA100695R1
Quick Summary
ABB 1SDA100695R1 Accessory is a four-pole thermomagnetic release for Tmax XT5 circuit-breakers, delivering reliable AC/DC protection in generator protection schemes. Installers often struggle with tight panel spaces and complex wiring when integrating release devices, risking miscoordination and delayed fault isolation. The design aligns with IEC60947-2 and CE declarations while delivering RoHS, REACH, CMRT, and TSCA compliance for global deployments. By simplifying installation and ensuring precise protection coordination, this accessory supports XT5 compatibility and enhances system reliability, reducing lifecycle risk and total cost of ownership.
Product Information
Extended Description
1SDA100695R1 ABB: THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMG R 320 I3=800...1600 A FULLY RATED NEUTRAL XT5
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
E-Number (Norway)
4380485
EAN
8056221007719
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1.05 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
180 mm
Package Level 1 Depth / Length
225 mm
Package Level 1 Gross Weight
1.214 kg
Package Level 1 EAN
8056221007719
Circuit Breaker Type to be Associated
Generator Protection
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
4P
Order Multiple
1 piece
Rated Current (In)
320 A
Release
TMG
Release Type
TM
Setting Range
224…160 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT5-XT6
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Four-pole thermomagnetic release for AC/DC circuits. Business Impact: fast, selective tripping and reliable fault isolation. Application: ideal for generator protection in Tmax XT5 assemblies. Feature: Rated current of 320 A with a setting range of 224–160 A. Business Impact: enables tailored protection and coordinated protection schemes, reducing nuisance trips. Application: protects critical loads in XT5-based generator circuits. Feature: Loose or configurable installation configuration. Business Impact: installation flexibility and easier retrofits in existing panels. Application: scalable for new builds and legacy Tmax XT5 installations. Feature: Compliance with IEC 60947-2, RoHS, REACH, CMRT, and TSCA. Business Impact: regulatory alignment and global deployment confidence. Application: suitable for multinational projects requiring strict conformity. Feature: Fully rated neutral and XT5 compatibility. Business Impact: ensures safe neutral handling and seamless integration with the Tmax XT family. Application: generator protection and distribution panels in modern low-voltage systems.
Get a Quick Quote for a ABB 1SDA100695R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA100695R1?
Enquire Now
FAQs
This accessory is designed for Tmax XT5 low-voltage molded-case breakers and can be integrated as a four-pole thermomagnetic release in AC/DC circuits. Ensure the setting range covers the protected load, verify the XT5 compatibility, and follow the manufacturer’s release assembly instructions to connect to the appropriate terminations. This minimizes wiring complexity and preserves proper coordination with the main breaker.
Key specs include a rated current of 320 A, a setting range of 224–160 A, four poles (4P), AC/DC current type, and the TM release with TMG. It complies with IEC 60947-2 and is designed for fully rated neutral XT5 configurations. Confirm the EAN 8056221007719 for ordering and ensure the protection scheme accommodates generator protection requirements.
Yes. The four-pole thermomagnetic release is specifically intended for generator protection applications using Tmax XT5 breakers. Its AC/DC capability and fully rated neutral support reliable protection in generator start-up surges and fault conditions, helping maintain system stability and safe disconnection when faults occur.
The accessory adheres to IEC 60947-2 and carries CE conformity, RoHS and REACH declarations, plus CMRT and TSCA documentation. These certifications support global deployment and regulatory compliance across diverse markets and supply chains.
The four-pole thermomagnetic release provides robust, long-term protection with easy integration into XT5 systems, reducing field wiring complexity and potential miswiring errors. By improving protection accuracy and fault isolation, it can lower downtime, extend equipment life, and deliver a favorable return on investment through safer, more reliable generator protection.
