ABB 1SDA100800R1 Accessory - TMA 800-8000 XT6
Part Number: 1SDA100800R1
Quick Summary
ABB 1SDA100800R1 is a shunt-release accessory for Tmax XT three-pole circuit breakers used in industrial power distribution. This accessory helps reduce manual switching and speeds release coordination, minimizing panel downtime and enhancing operator safety. It carries IEC 60947-2 compliance, CE conformity, and RoHS declarations, with CMRT and TSCA reporting for responsible global sourcing. For panel builders and maintenance teams, the ABB Tmax XT accessory ensures reliable retrofit compatibility and straightforward installation, while supporting environmental and regulatory requirements. By aligning with XT6 compatibility and robust standards, it delivers predictable performance in demanding environments and enables efficient spare-parts management.
Product Information
Extended Description

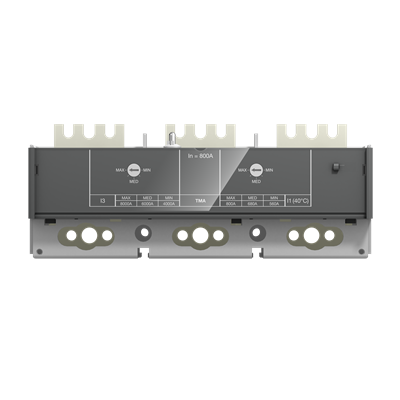

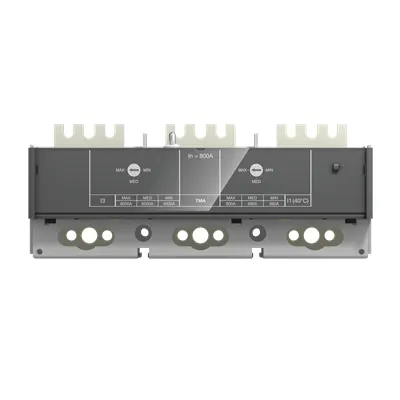

1SDA100800R1 ABB: THERMOMAGNETIC RELEASE THREE-POLE IN AC-DC TMA R 800 I3=1600...8000 XT6
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
E-Number (Norway)
4380555
EAN
8056221008549
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
158 mm
Package Level 1 Height
158 mm
Package Level 1 Depth / Length
188 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8056221008549
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT6
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
3P
Order Multiple
1 piece
Rated Current (In)
800 A
Release
TMA
Release Type
TM
Setting Range
560…800 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT5-XT6
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
