ABB 1SDA100814R1 Accessory - 4P 800A TM Shunt Release
Part Number: 1SDA100814R1
Quick Summary
ABB 1SDA100814R1 Accessory is a four-pole shunt release for Tmax XT6 low-voltage breakers used in industrial power distribution. Field teams often face downtime when accessory compatibility is unclear, or retrofits require extensive wiring and reconfiguration. This accessory aligns with IEC 60947-2 and regulatory requirements, backed by CE declarations, RoHS compliance, and TSCA documentation to ensure safe and auditable integration. By standardizing on this ABB accessory, panel builders gain predictable installation timelines, reliable protection coordination, and simpler spare-parts planning, while procurement benefits from a single XT6-compatible solution that reduces stocking complexity and operational risk.
Product Information
Extended Description

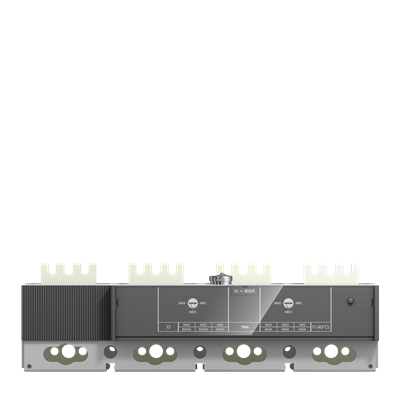

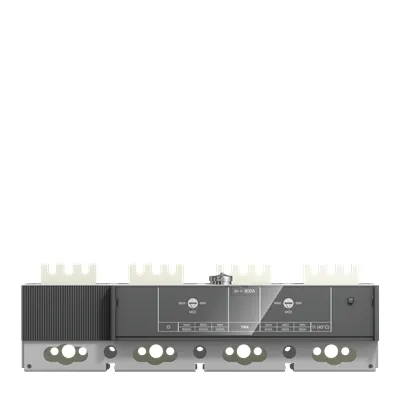

1SDA100814R1 ABB: THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 800 I3=1600...8000 A NEUTRAL = 50% PHASES XT6
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221008686
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1.3 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
179 mm
Package Level 1 Height
179 mm
Package Level 1 Depth / Length
223 mm
Package Level 1 Gross Weight
1.4 kg
Package Level 1 EAN
8056221008686
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT6
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
4P
Order Multiple
1 piece
Rated Current (In)
800 A
Release
TMA
Release Type
TM
Setting Range
560…800 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT5-XT6
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature: Four-pole AC/DC release configuration for Tmax XT6. Business Impact: Enhances protective coordination and arc control across all poles, reducing the risk of mis-tripping and improving overall system reliability. Application: Ideal for four-pole protection in medium- to high-load industrial power-distribution panels. Feature: Rated current 800 A with a setting range of 560–800 A. Business Impact: Enables precise selectivity and coordination with upstream protection, minimizing nuisance trips and downtime. Application: Large MCCs and distribution switchgear where accurate current-setting is critical. Feature: Loose or configurable installation option. Business Impact: Facilitates retrofit projects and modular upgrades with faster commissioning and reduced on-site labor. Application: On-site XT6 upgrades and new-build switchboards. Feature: Comprehensive compliance and documentation (CE, RoHS, TSCA, CMRT, REACH) with IEC 60947-2 compatibility. Business Impact: Simplifies audits, accelerates approvals, and mitigates regulatory risk. Application: Global OEMs and panel-builders requiring traceable ethics and environmental compliance. Feature: Compatibility with packaging, ordering data, and XT6 accessories ecosystem. Business Impact: Streamlines procurement, reduces stock-keeping costs, and improves supply continuity. Application: Distributors and integrators stocking Tmax XT accessories for quick-turn projects.
Get a Quick Quote for a ABB 1SDA100814R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA100814R1?
Enquire Now
FAQs
No special tooling is required beyond standard mounting and wiring practices for XT6 shunt release accessories. The component is designed for loose or configurable installation, enabling plug-and-play compatibility with XT6 breakers and common switchgear enclosures.
Key specs are four poles (4P), AC/DC current type, rated current 800 A, and a setting range of 560–800 A. It is built as a TM release (TMA) for Tmax XT6, ensuring correct coordination with the associated breaker.
Yes. The design supports loose or configurable installation and is specifically specified for XT6, making it appropriate for both new constructions and retrofit upgrades in industrial switchgear and power distribution applications.
The accessory references IEC 60947-2 for low-voltage molded case circuit-breakers, with CE declaration, RoHS compliance, TSCA documentation, and CMRT for responsible sourcing, aiding regulatory compliance and audits.
By providing a standardized XT6-compatible shunt release, maintenance and spares planning become more predictable, reducing downtime during replacements and upgrades, and lowering total cost of ownership through streamlined procurement and predictable lifecycle support.
