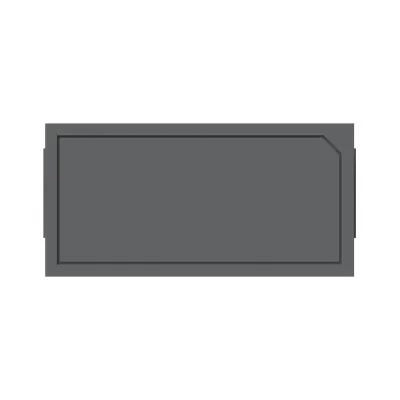

ABB 1SDA101992R1 Rating Plug - XT5 UL489, 250A
Part Number: 1SDA101992R1
Quick Summary
ABB 1SDA101992R1 Rating Plug is a high-current accessory designed to terminate Tmax XT circuit breakers in industrial control panels safely and efficiently. Engineers face challenges with reliable plug-in connections, heat management, and regulatory compliance during upgrades or routine maintenance. This rating plug addresses those pain points by offering a robust 250 A rating for XT5 configurations and a UL489 certification for low-voltage molded case breakers, complemented by RoHS and REACH declarations for environmentally responsible sourcing. By enabling straightforward installation and dependable contact performance, it helps reduce downtime and inventory complexity. The product also aligns with CMRT and TSCA disclosures, supporting global supply chains and simplifying procurement for OEMs and service teams.
Product Information
Extended Description
1SDA101992R1 ABB: RATING PLUG In=250A XT5 UL
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5RP250UL
EAN
8056221020367
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020367
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Suitable for Product Class
SACE Tamx XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
250 A
Standards
UL489
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Rating Plug - XT5
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature 1: 250 A rating and XT5 compatibility → Business Impact: Enables reliable high-current connections and reduces start-up delays; Application: Tmax XT panels in automatic lines. Feature 2: UL489 standard compliance → Business Impact: Ensures regulatory safety and consistent trip characteristics; Application: marine and process industries requiring UL489 conformity. Feature 3: RoHS/REACH declarations → Business Impact: Supports sustainable sourcing and regulatory adherence; Application: global manufacturing with strict environmental requirements. Feature 4: Loose or configurable installation → Business Impact: Simplifies field configuration and reduces installation time; Application: retrofit projects and modular control cabinets. Feature 5: Packaging and logistics data (MOQ 1 piece, EO packaging) → Business Impact: Streamlines procurement, reduces stockholding, and speeds repairs; Application: OEMs and service fleets managing spare parts. Feature 6: Comprehensive documentation (SDS, DoC, CMRT, TSCA) → Business Impact: Improves compliance audits and traceability; Application: regulated industries requiring full traceability and clearance. Long-tail keywords integrated: XT5 rating plug, Tmax XT accessories, UL489, RoHS declaration, REACH declaration, CMRT, TSCA, low-voltage molded case circuit-breakers, WEEE, eClass, ETIM, UNSPSC.
