ABB 1SDA102000R1 Accessory - IEC60947-2 Compliance
Part Number: 1SDA102000R1
Quick Summary

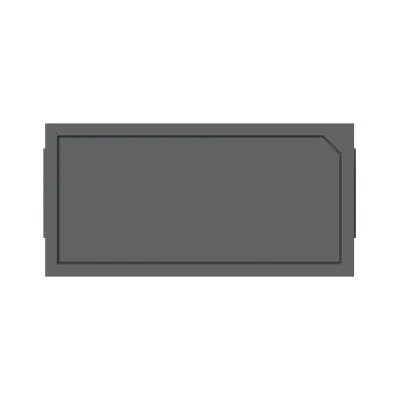

1SDA102000R1 ABB accessory is a rating plug for Tmax XT5 circuit-breaker assemblies. Engineers often face integration and compliance challenges when upgrading Tmax XT systems, risking downtime and nonconformant installations. This accessory carries CE conformity, RoHS compliance, and TSCA declarations, supporting safe, sustainable operation across regional standards. With loose or configurable installation and a 1-piece minimum order, it fits quickly into existing Tmax XT workflows, reducing lead times and simplifying procurement for global projects.
Product Information
Extended Description
1SDA102000R1 ABB: RATING PLUG In=630 A XT5 EKIP TOUCH AND EKIP DIP LSI/LSIG IEC
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5RP630IEC
E-Number (Norway)
4381585
EAN
8056221020442
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020442
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Suitable for Product Class
SACE Tamx XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
630 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Rating Plug - XT5
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature: 630 A rated current supports high-load Tmax XT5 circuits, reducing voltage drop and overheating risks. Business Impact: Enables reliable power distribution in data centers and manufacturing lines, improving uptime and extending equipment life. Application: Ideal for SACE Tmax XT assemblies that demand robust current handling and durable performance. Feature: IEC60947-2 standard compliance ensures regulatory alignment. Business Impact: Streamlines approvals, audits, and maintenance planning while minimizing compliance gaps. Application: Suitable for low-voltage switchgear installations requiring proven standard conformity. Feature: Loose or configurable configuration offers installation flexibility. Business Impact: Cuts commissioning time and allows on-site adjustments without swapping hardware. Application: Fits varied field conditions in XT5 environments. Feature: US/Canada order code KXT5RP630IEC simplifies procurement. Business Impact: Reduces lead times and simplifies cataloging for procurement teams. Application: Supports consistent stocking and rapid replacement in multinational projects. Feature: RoHS, REACH, CMRT, and TSCA declarations provide worldwide compliance readiness. Business Impact: Mitigates regulatory risk, expands market access, and improves sustainability reporting. Application: Essential for global deployment of Tmax XT accessories across multiple regions.
Get a Quick Quote for a ABB 1SDA102000R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA102000R1?
Enquire Now
FAQs
The 1SDA102000R1 is designed for loose or configurable installation within Tmax XT5 assemblies. Begin by ensuring power is isolated, then align the rating plug with the XT5 main contact block, and secure using standard torque guidelines. The unit ships as a single piece with a KXT5RP630IEC order code for US and Canada, streamlining replacement in field service scenarios.
Key specs include a rated current of 630 A, compatibility with IEC60947-2 standard, and suitability for XT5 with Tmax. The product uses RoHS and REACH declarations, has a packaging weight of about 1.7 kg, and is identified by EAN 8056221020442. It is offered in a loose or configurable configuration and has a 1-piece minimum order quantity.
Yes. The 1SDA102000R1 carries RoHS declarations and CE conformity, with declarations for RoHS information and compliance under EU directive 2011/65/EU and amendment 2015/863. It also references TSCA declarations for broader compliance. This ensures the accessory can be used across regions with regulated electronics requirements.
The 1SDA102000R1 is specified for Tmax XT5 and, by design, aligns with XT5-rated assemblies. While it is engineered for XT5 systems, consult ABB documentation or technical support for compatibility with related Tmax XT configurations in your facility. The rating, housing interface, and installation method support reliable integration within XT families.
For US and Canada, the official order code is KXT5RP630IEC. Packaging details indicate a single-piece package per box, with package dimensions around 120 mm width, 160 mm height, and 190 mm depth, and a gross weight of about 1.7 kg per box. The EAN is 8056221020442, facilitating straightforward freight and inventory processes.
